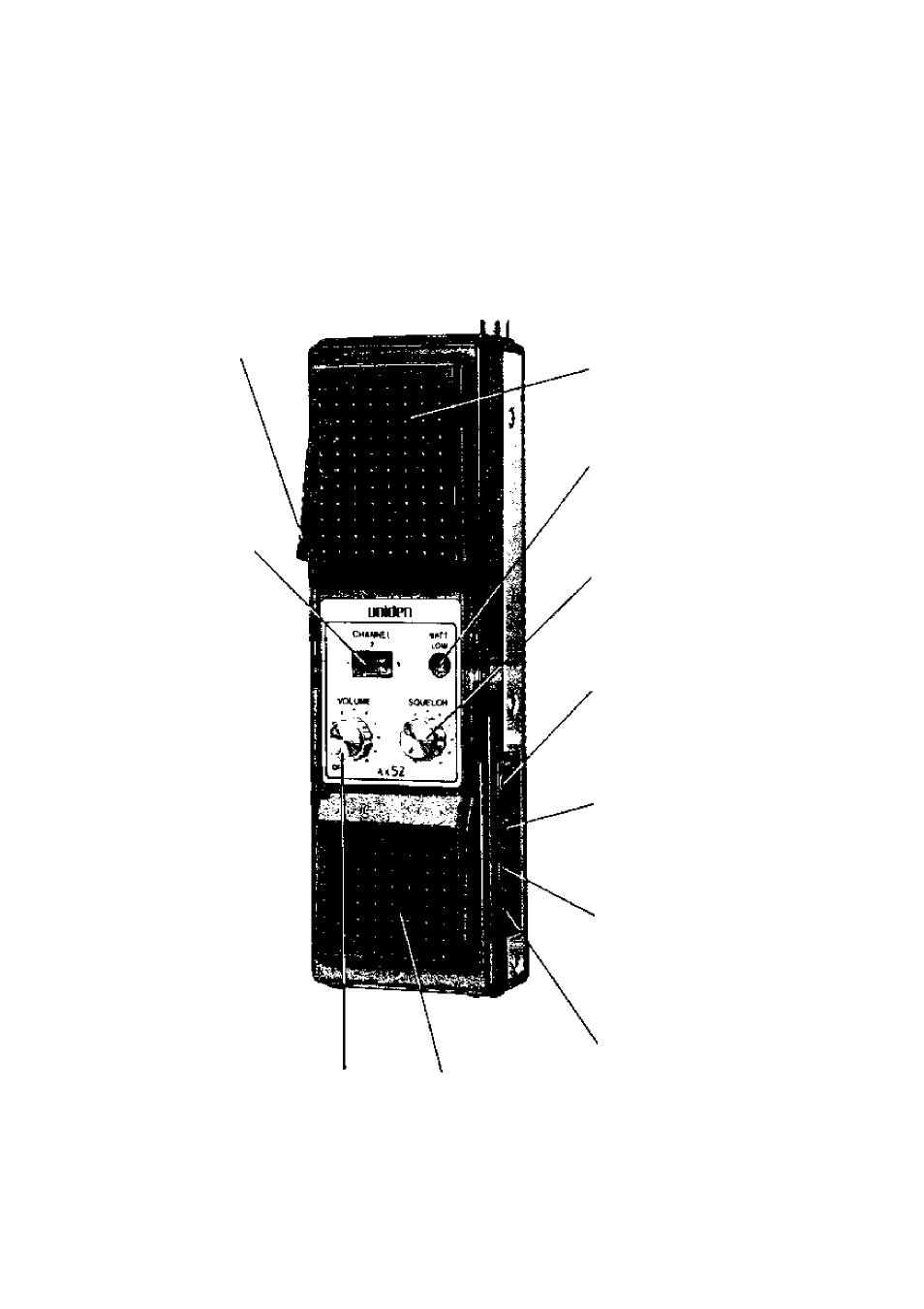

CONTROLS AND FUNCTIONS
PUSH-TO-TALK BUTTON
Press to talk.
Release to lister
CHANNEL SELECTOR
Position 1 is for
Channel 14 (crystals
supplied with the unlll.
Use 2 and 3 for other
channels as desired.
ANTENNA
Extend to its full length
POWER ON-OFF/VOLUME CONTROL MICROPHONE
Turn clockwise past click to apply power. Talk here.
Adjust for desired listening level.
BATTERY LOW INDICATOR LED
tf LED comes on, recharge or
replace batteries.
SQUELCH
Adjust to eliminate background
noise.
EXTERNAL ANTENNAJACK
Connect an external antenna for
greater operating range.
EXTERNAL SPEAKER JACK
Connect an optional external
speaker.
CHARGER JACK
Connect charger to recharge
Nickel Cadmium batteries
without removing them.
POWE R JACK
Conrtect an optional to AC
Adaptor to operate the unit on
household current.
