WIRING
Note: All wiring should be done in accordance with local codes
and the National Electrical Code by a qualified person.
WARNING: Hazard of Electric Shock. Any installa-
tion involving electric heaters must be effectively
grounded in accordance with the National
Electrical Code to eliminate shock hazard.
1. Connect heater according to the voltage and frequency speci-
fied on the nameplate and using the appropriate wiring diagram
(Figures 3 thru 7).
Note: Be sure to check voltage rating of the fan motor which is
either 120, 208 or 240 volt, single phase since heater circuit could
be 480 volts, single or three phase.
2. If an external transformer is used to step down the voltage for oper-
ating the fan motor, use appropriate wiring diagram (Figures 3, 5
or 7).
3. Heaters are not provided with a control switch and should be
controlled by a magnetic contactor (integral or external) and a
separately mounted thermostat. External contactor is not nec-
essary with heaters having a model number suffixed with the
letter “R”.
4. Protection against overheating is provided by an internal auto-
matic thermal cutout which opens the electric circuit if the nor-
mal air-flow is restricted or stopped. Cutout automatically
energizes heater on removal of the obstruction.
WARNING: Users should install adequate back-up
controls and safety devices with their electric
heating equipment. Where the consequences of
failure may be severe, back-up controls are essen-
tial. Although the safety of installation is the
responsibility of the user, Chromalox will be glad to
make equipment recommendations.
OPERATION
DANGER:
1. Do not restrict air-flow through the heater by
placing fabric or other obstructions in front of or
behind the heaters. With some combustible
materials, the resulting high discharge tempera-
tures could cause a fire.
2. This heater is not intended for use in hazardous
atmospheres where flammable vapors, gases, liq-
uids or other combustible atmospheres are present
as defined in the National Electrical Code. Failure
to comply can result in explosion or fire. For these
applications see PDS CXH-EP (PF305).
MAINTENANCE
WARNING: Turn off all power to service heater. Do
not attempt to service heater while unit is operating
as there is hazard of electric shock, injury from
operating fan and burns from hot heating elements.
1. Fan motors in these heaters are provided with sealed ball bear-
ings, factory lubricated, requiring no further lubrication under
normal service conditions.
2. Following long periods of idleness, heater should be vacuumed
before start-up, to remove accumulated combustible particles
which otherwise may smoke or incinerate on initial heat up.
3. Periodically inspect all electrical connections and terminals to
avoid electrical wiring difficulties. Inspect all wiring for frayed
or worn insulation.

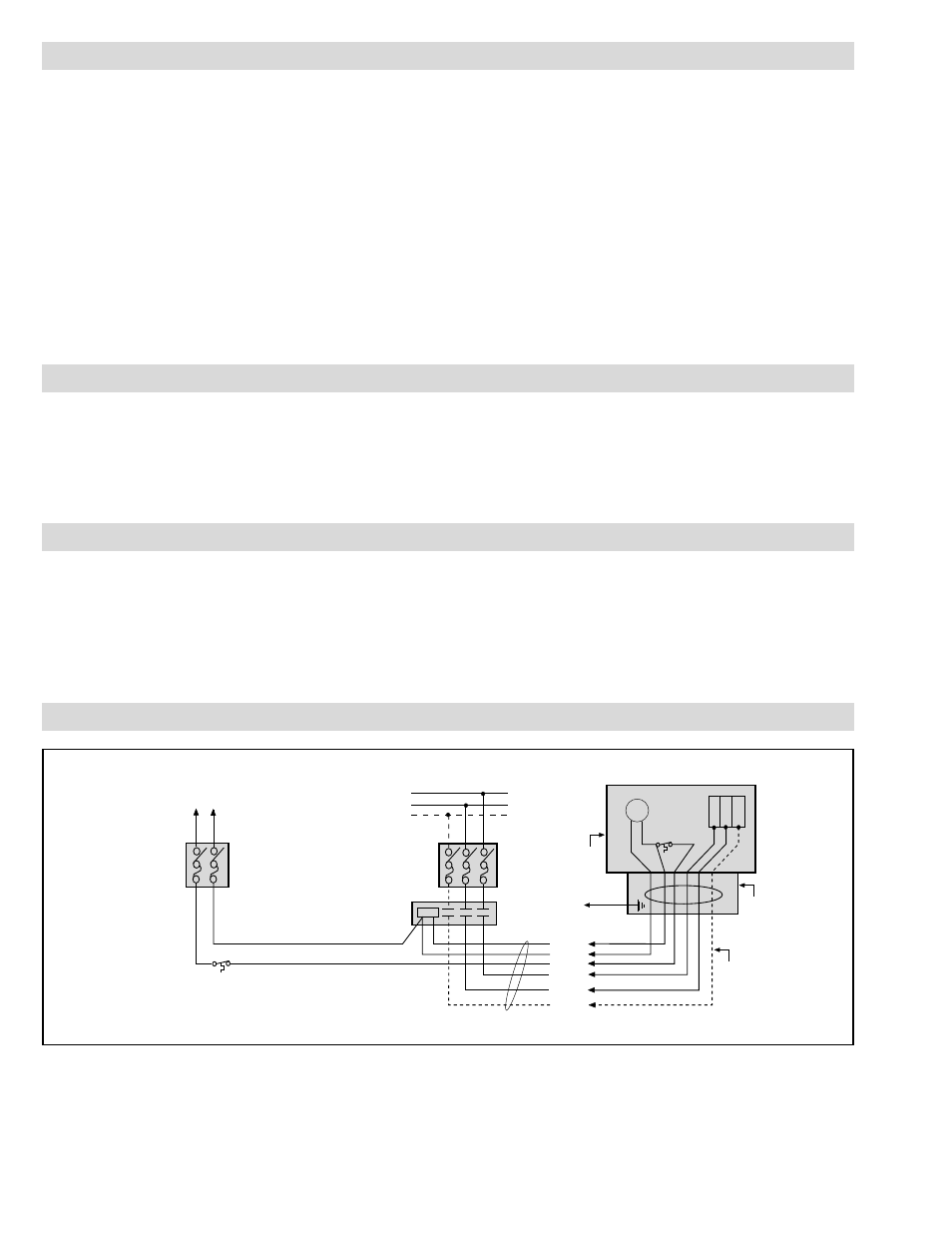

WIRING DIAGRAMS
Ground
Heater Bank 1Ø Motor
Heater
Wiring Comp't
Baffle
For 3 Phase Only
This Wiring
by Customer
Thermostat When Used
Control Source for
Separately Wired Motors
120 or 240 Volts, 60 Cycle 1 or 3 Phase, 60 Cycle
Power Supply 208, 240
or 480 Volts
Cutout
}
Fused
Switch
F1
F2
T1
L1
L2
L3
Fused
Control Switch
Contactor
Figure 3
Use with:
UB-1002E
208V, 1Ø or 3Ø
240V, 1Ø
480V, 1Ø or 3Ø
UB-1252E
208V, 3Ø
240V, 3Ø
480V, 1Ø or 3Ø
UB-1502E
208V, 3Ø
240V, 3Ø
480V, 1Ø or 3Ø
UB-2002E
480V, 1Ø or 3Ø
240V, 1Ø or 3Ш
