28
Connection of the Power Supply Cable

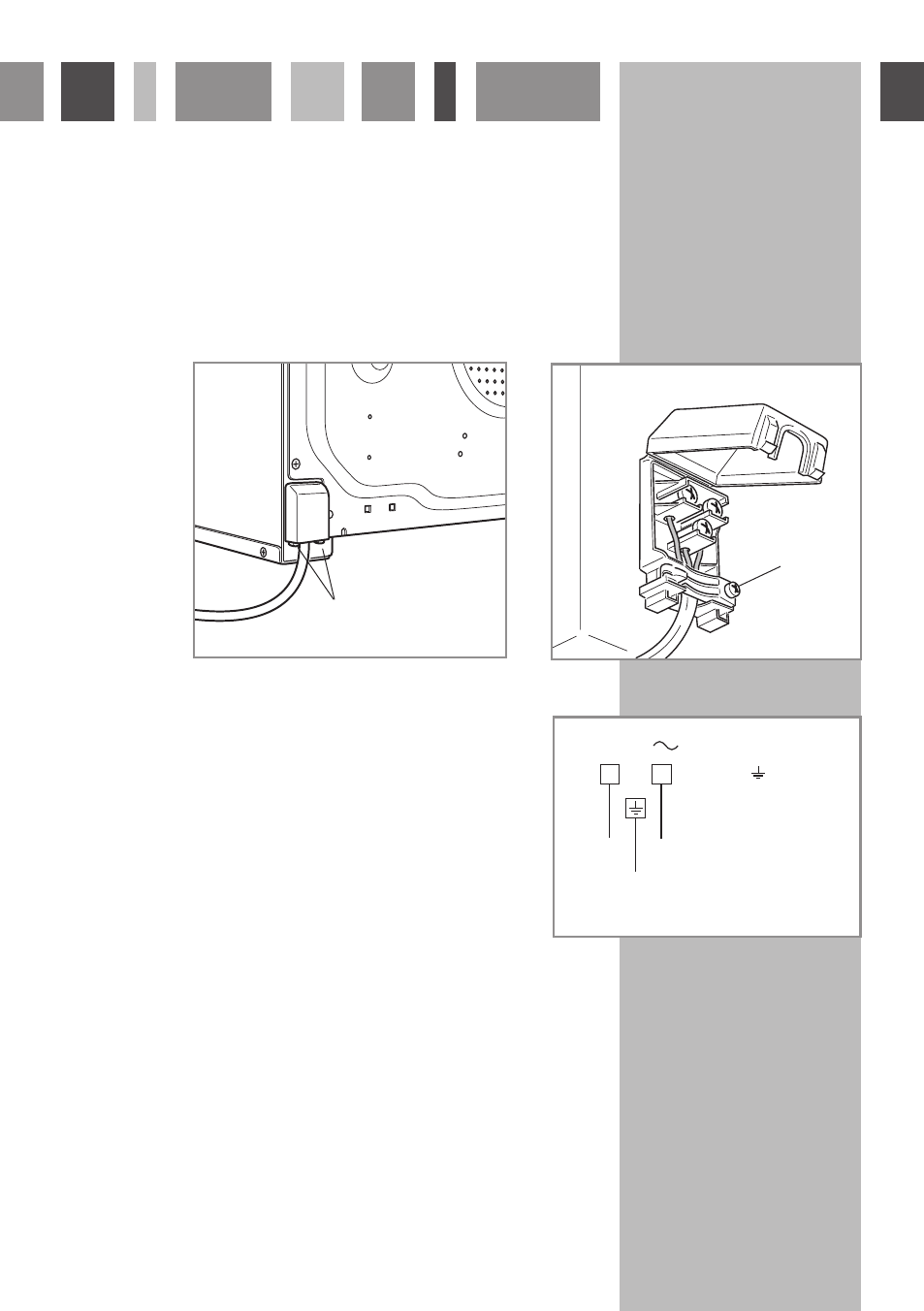

Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (fig. 23).
Open the cable gland by unscrewing screw “F” (fig. 24), unscrew the terminal screw and remove the
cable.
The new supply cable, of suitable type and section, is connected to the terminal board following the
diagram of fig. 25.
A
F
Feeder Cable Section
Type H05RR-F
230 V~
3 x 1.5 mm 2
230 V
E
N L
E Earth
N Neutral
L Live
Fig. 23 Fig. 24
Fig. 25
