CDA 11Z6 User Manual
Page 40
40

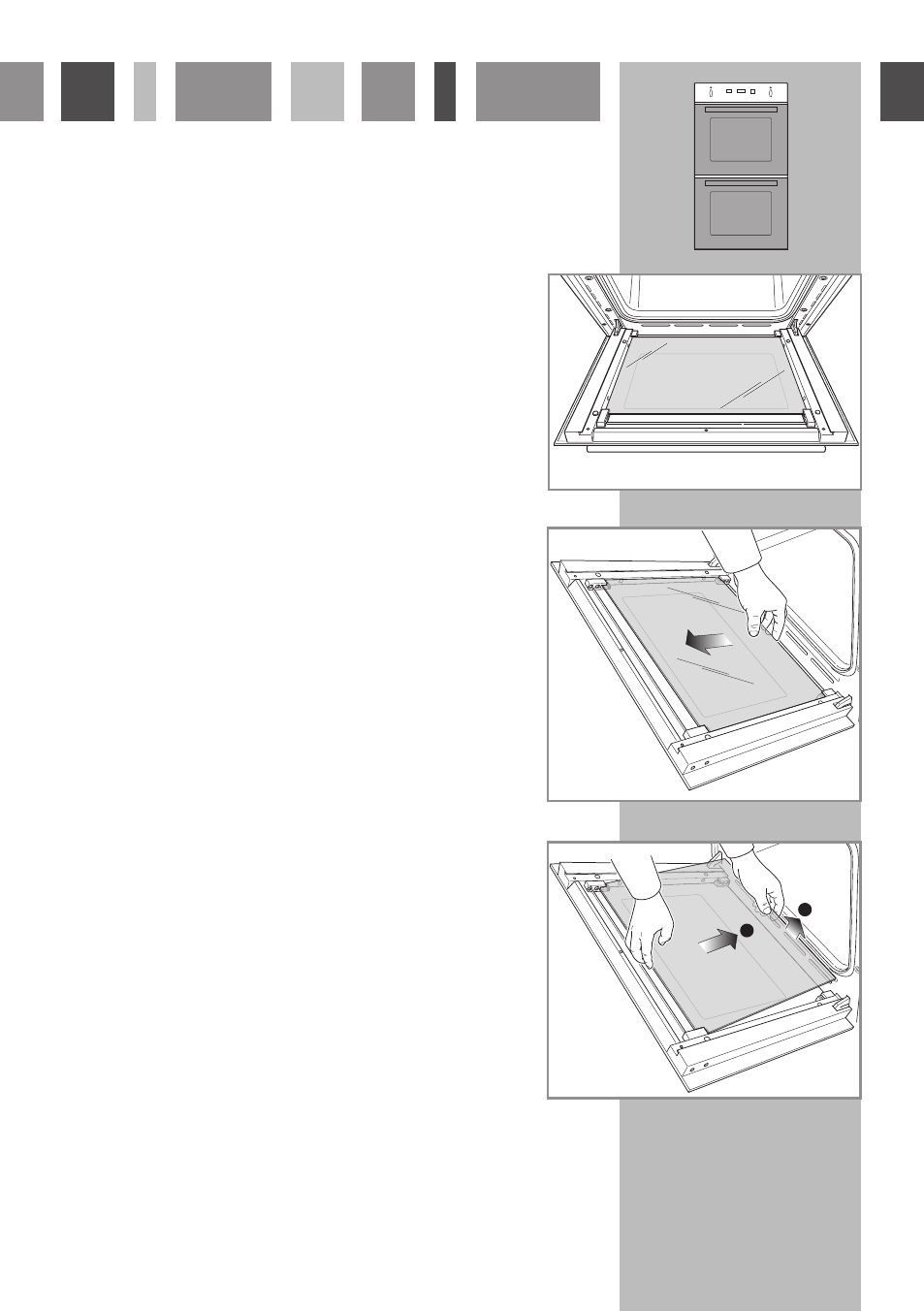

3. Remove the Middle Pane:
– Gently unlock the middle pane of glass from the bottom clamps
by moving it as in fig. 26.
– Gently lift the bottom edge of the pane (arrow 1 in fig. 27)
and remove it by pulling it out from the top clamps (arrow 2
in fig. 27).
– Clean the glass with an appropriate cleaner. Dry thoroughly, and
place on a soft surface.
Now you can also clean the inside of the outer glass.
Fig. 26
1
2
Fig. 27
Fig. 25
