Pin #

Signal

Pin # Signal

1

TMDS Data 2+

11

TMDS Clock Shield

2

TMDS Data 2 Shield

12

TMDS Clock -

3

TMDS Data 2-

13

CEC

4

TMDS Data 1+

14

Reserved (N.C.)

5

TMDS Data 1 Shield

15

SCL

6

TMDS Data 1-

16

SDA

7

TMDS Data 0+

17

DDC/CEC Ground

8

TMDS Data 0 Shield

18

+5 Power

9

TMDS Data 0-

19

Hot Plug Detect

10

TMDS Clock+

Installation / Operation Instructions

1. Turn off the devices to be connected together.
2. Connect the HDMI cable between the source (DVD,

Satellite Receiver, etc.) and the “HDMI In” port of the
Distribution Amplifier.

3. Connect the HDMI cables from the outputs of the

distribution amplifier to the inputs of the monitors.

4. Power up the Distribution Amplifier and the Monitor

connected to HDMI output number one on the amplifier.
Leave the other monitors off for now.

5.Turn on power to the source device. The monitor connected to output number one

should have picture and sound within about 5 seconds.

6. Turn on power to the remaining monitors.
7. Install cable ties through the two holes on either side of the cable if desired to prevent

accidental unplugging of the HDMI cables. See picture above.

NOTES: 1. All monitors connected to the distribution amplifier should be capable of the same resolution.

2. Always connect the first monitor to output number one on the Distribution Amplifier first.

This is necessary for the Electronic ID to be read properly by the source.

3. For optimum performance, try to use HDMI cables no longer than 5 meters in length.

Use these holes to secure

the HDMI cables with a cable tie.

1

2

3

4

5

6

Input

7

8

DC IN

HDMI SOURCE

OUT 1

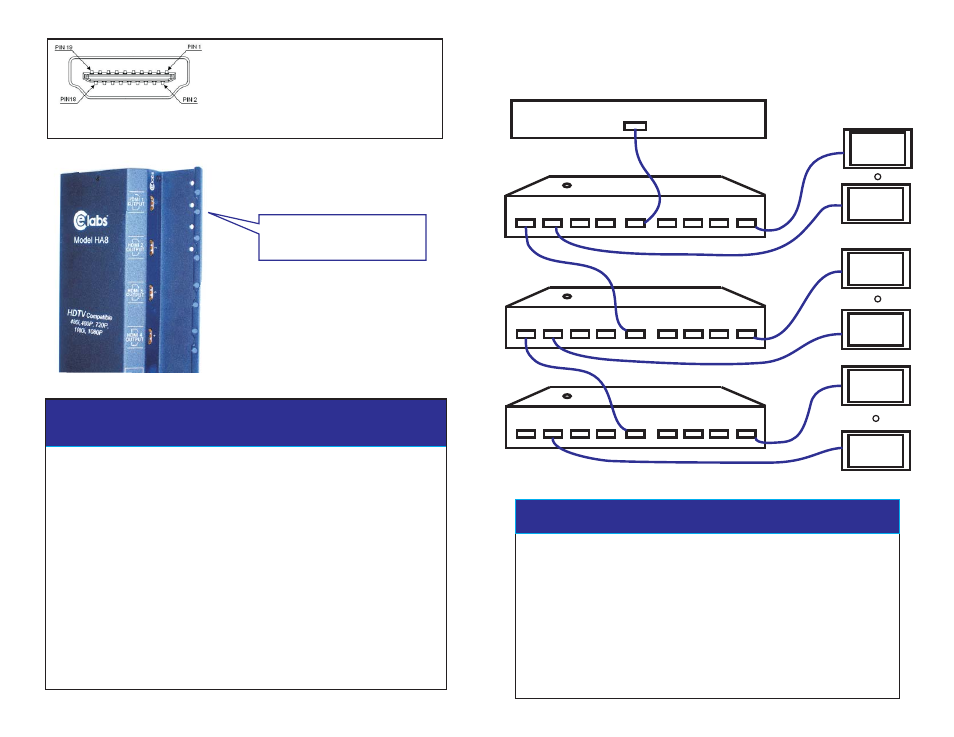

HDMI Distribution Amplifiers Cascade Configuration

SPECIFICATIONS

Model

HA8

HDMI

Connector (A-Type Female)

HDMI

Connector (A-Type Female)

Max. Resolution

1080P

Cable Distance
Signal Type

Standard HDMI Signals

Power Adapter (Min.)

DC V A

Housing

Metal

Weight

(3.5 lbs.) 1.5 Kg

Dimensions (LxWxH) mm

(15.8” x 6.3” x 1.5”) 400 x 160 x 38

Input

1

Output

8

(Device to Monitor)

10 m (Max.)

5

4

1

2

3

4

5

6

Input

7

8

DC IN

1

2

3

4

5

6

Input

7

8

DC IN

HA8 Units may be cascaded 7 layer deep.

HD MONITOR

#1

HA 8

HD MONITOR

#7

HD MONITOR

#8

HD MONITOR

#14

HD MONITOR

#15

HD MONITOR

#21

HA 8

HA 8
