APX2120/APX4240/APX1300
English

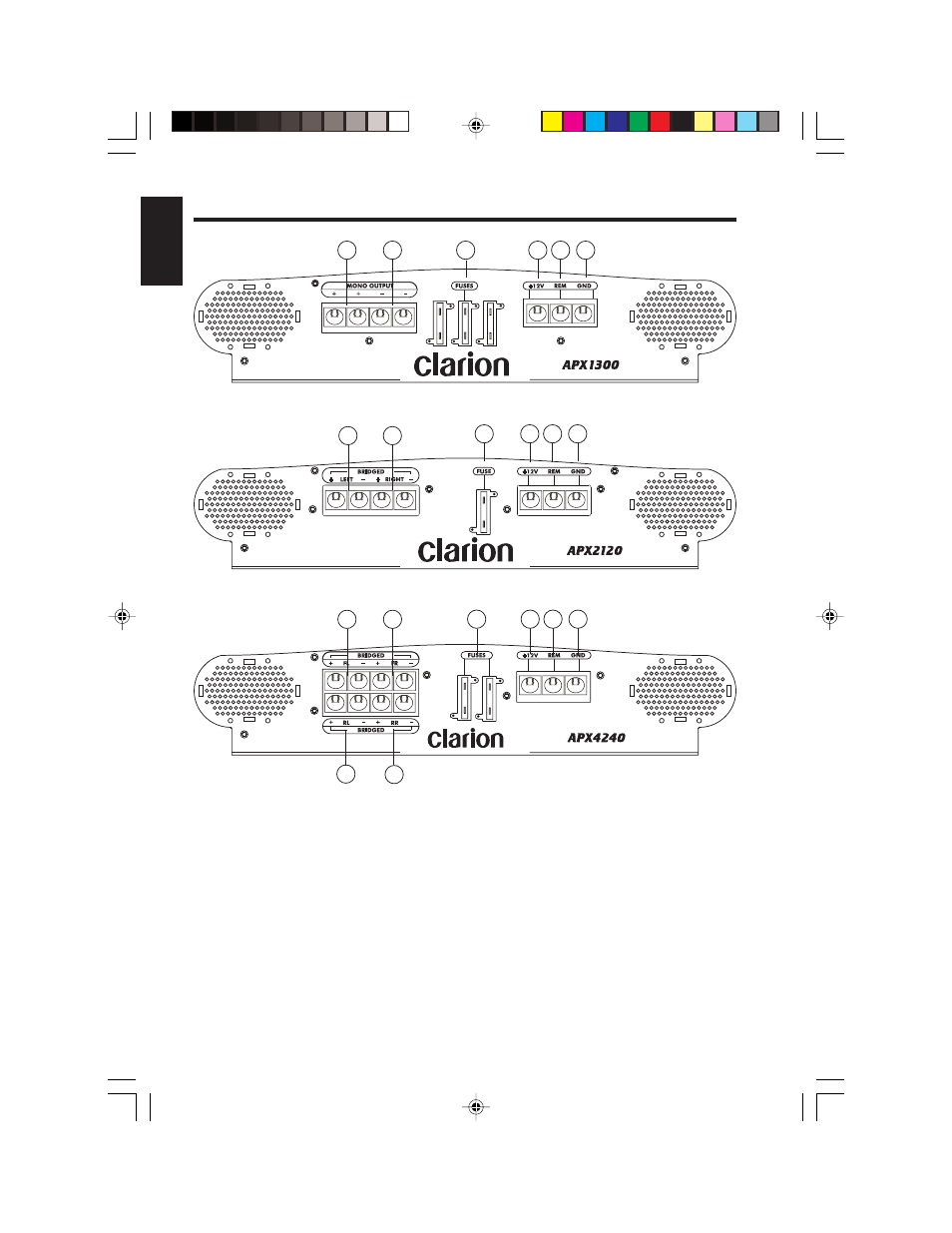

Power and speaker connections
APX1300 power and speaker connections
APX2120 power and speaker connections
APX4240 power and speaker connections
8
6
5
7
2
1
10
9
8
6
5
7
3
4
4
3
8
6
5
7
1. Left front speaker output
2. Right front speaker output
3. Left speaker output
4. Right speaker output
5. Remote turn-on input
6. Ground input
7. Battery +12V input
8. Fuse
9. Left rear speaker output
10. Right rear speaker output
