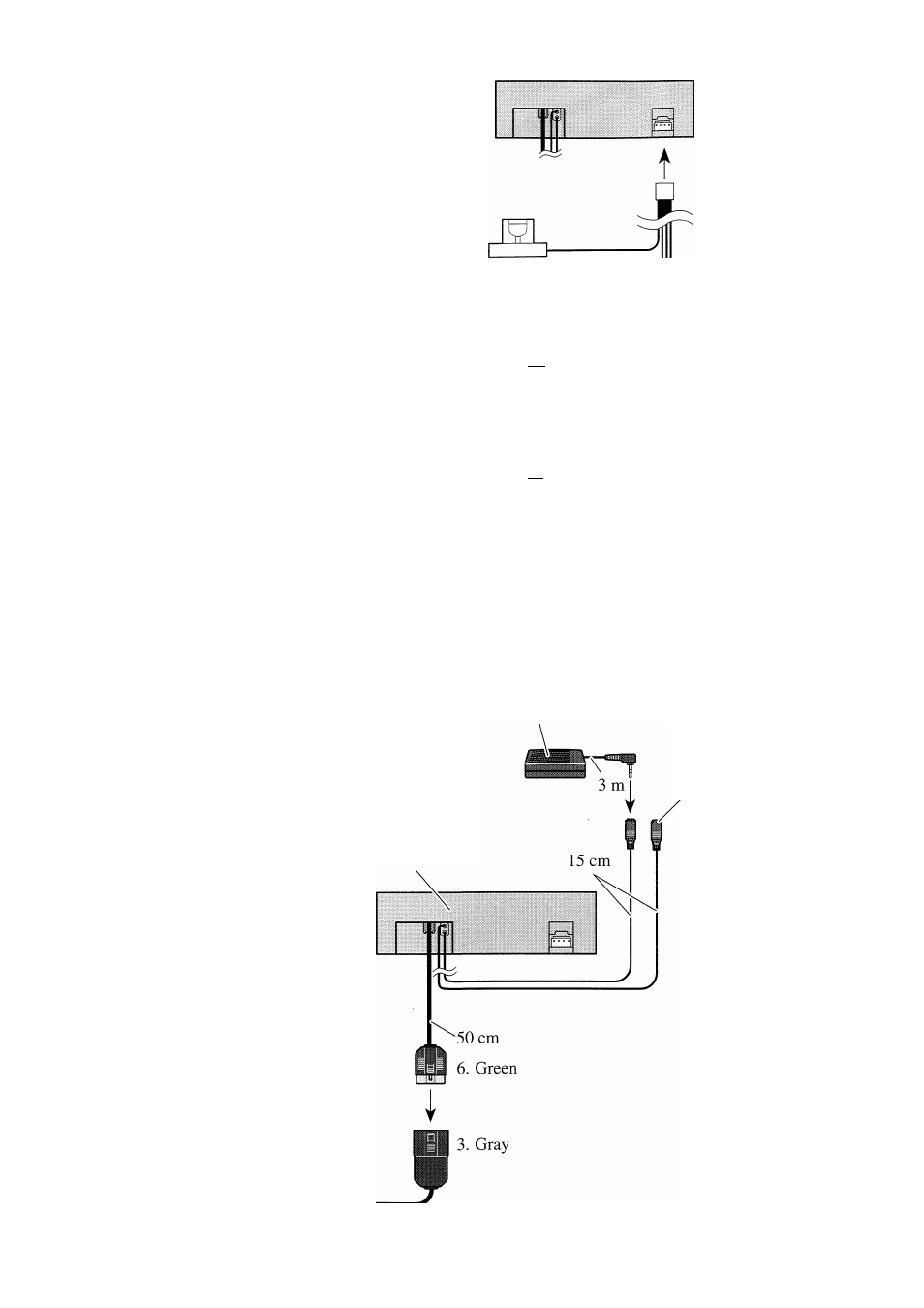

1. This Product

2. Yellow

To terminal always supplied with power
regardless of ignition switch position.

3. Red

To electric terminal controlled by ignition
switch (12 V DC) ON/OFF.

4. Orange

To lighting switch terminal.

6. Fuse holder

5. Black (ground)

To vehicle (metal) body.

-C J---------------------------

7. Fuse resistor

-c J---------------------------

7. Fuse resistor

Fig. 7

Abb. 7

Afb. 7

1. Navigation System

(sold separately)

t

3. Gray

3 m

2. Speaker Unit

(supplied)

4. This Product

5. Not Used.

7. RGB cable (supplied)

Fig. 8

Abb. 8

Afb. 8
