step 3 - Instali RO Filter Assembly

INSTALL REVERSE OSMOSIS EIETER
ASSEMBEY
The Reverse Osmosis Filter Assembly can sit upright or
lay on it's side. When planning your installation, you

need to allow adequate tubing lengths to be able to

access the back of the Reverse Osmosis assembly in
order to change the monitor battery. See Figure 11.

Step 4 - Install Storage Tank

INSTALE STORAGE TANK
1. Apply thread sealing tape to the threads on the nipple

at the top of the tank (max. 2 wraps). See Figure 12.

2. Locate the tubing connector. Tighten the tubing con

nector with a wrench onto the tank nipple 7-8 turns,
being careful not to cross thread or overtighten. See

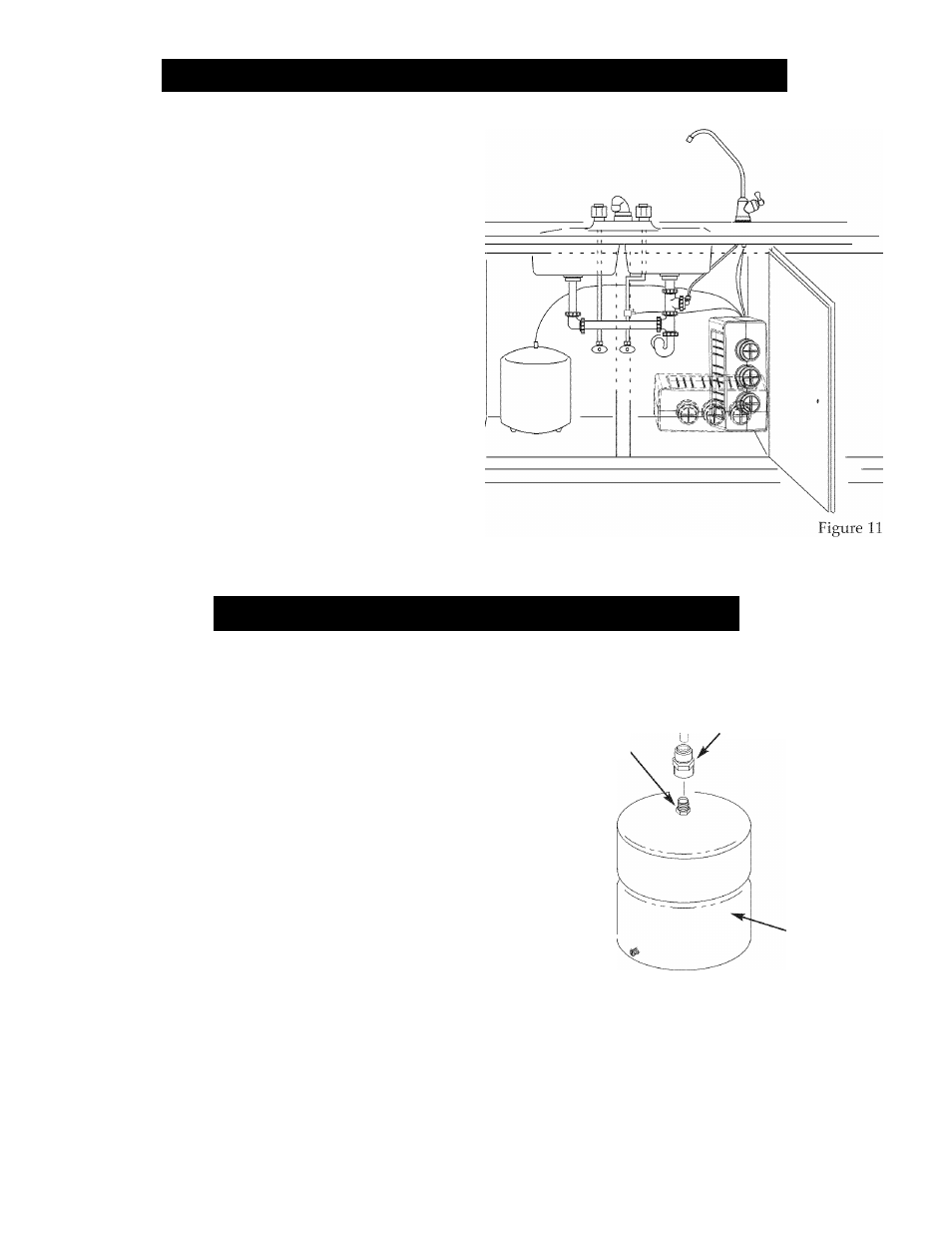

Figure 12

3. Do not connect the tube at this time. This will occur

later in the assembly.

4. Place the storage tank next to the Reverse Osmosis

Assembly. The tank can be placed upright or on its
side.

tubing connector

tank nipple^

storage tank

Figure 12
