4. Operating Instructions
Using the FS-4200
The Foot Master™ 4200 comes with a relay pack and foot controller. The relay pack has 16 built in
chase patterns that can be triggered either by sound or automatically using the foot controller. The
foot controller provides additional control options such as;
• Full On : Will turn on all power on all receptacles
• Sound : All chase patterns will be triggered via sound, the sensitivity to sound can be adjusted
• Auto : Chase patterns will be triggered at a pre-determined speed
• Blackout : All lights will be turned off momentarily or for as long as you hold the foot button
• Individual ON/OFF pedals : Each output can be turned on or off independently.

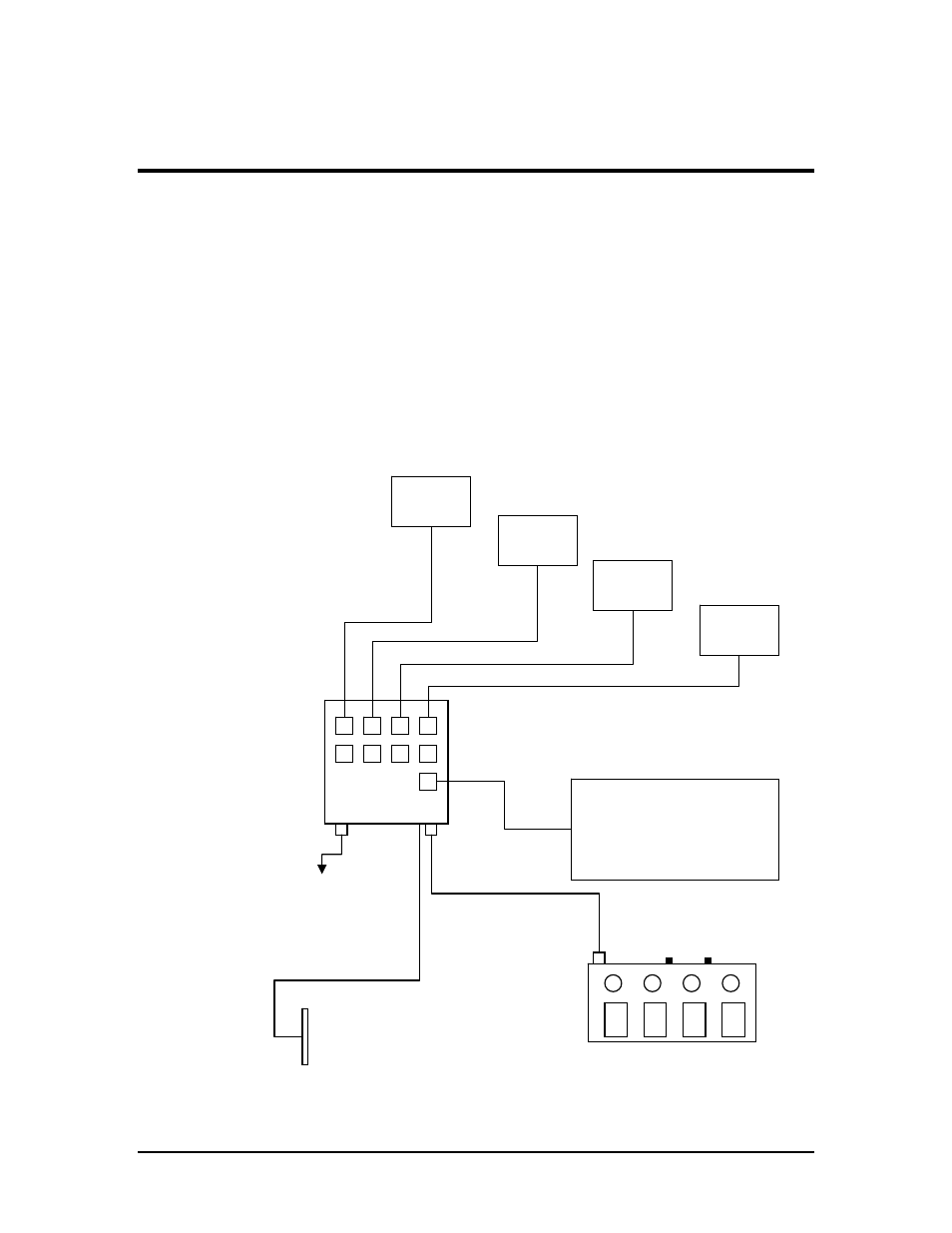

Connection Diagram
Foot Master
Relay Pack
LIGHTING
FIXTURE
LIGHTING
FIXTURE
LIGHTING
FIXTURE
Mains Power
Serial Link Cable
Optional
additional SR8
relay pack
Provides continuous power to any
device
CAUTION!
Please limit your power use on this
output. The relay pack will only allow
15Amps of power.
LIGHTING
FIXTURE
