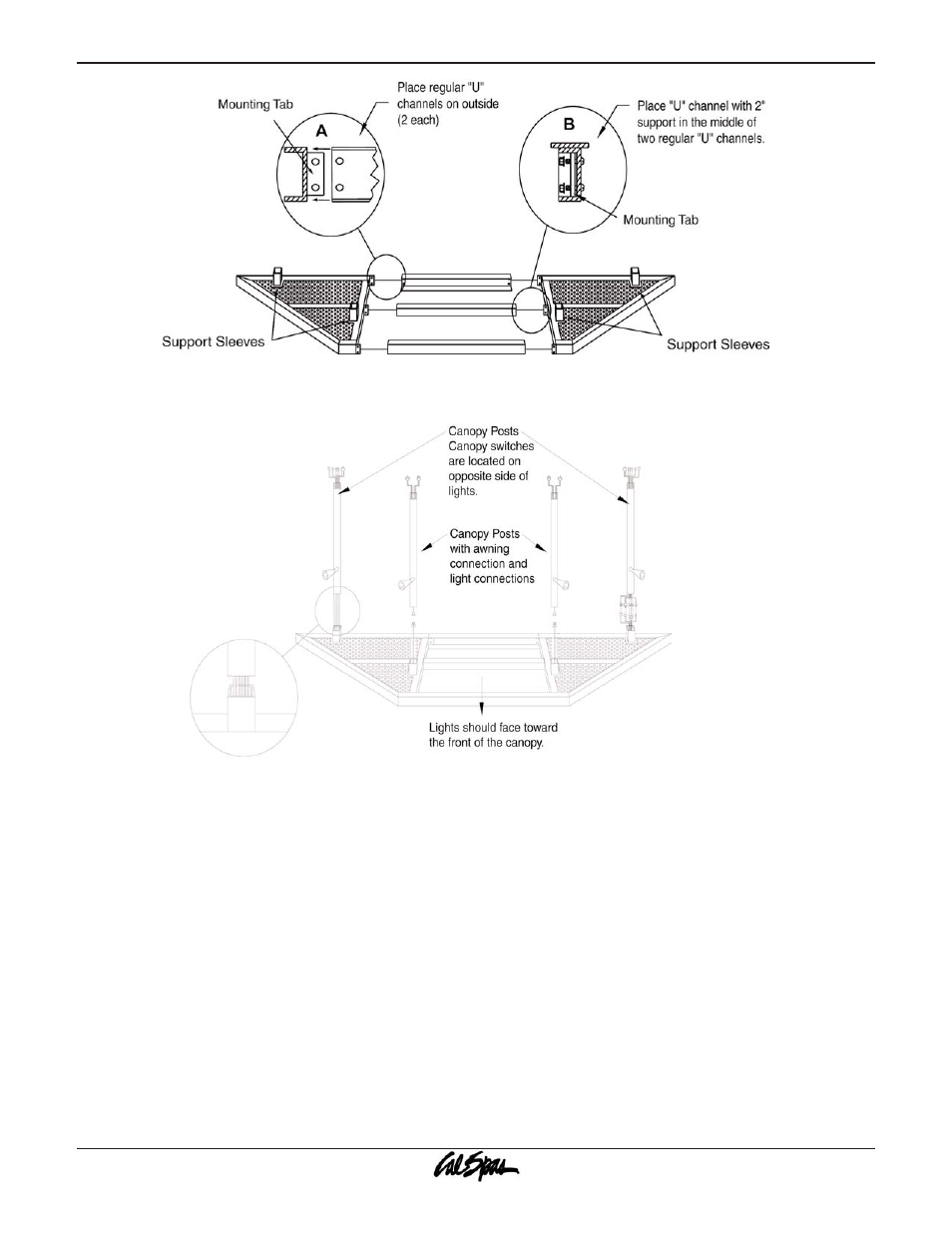

Figure 24. Canopy mounting tabs and support sleeves
Figure 25. Canopy mounting tabs and support sleeves
Mounting the G3000 Island/ Sports Bar Canopy
CAUTION: THE FOLLOWING STEP IS A TWO-PERSON PROCEDURE. THE CANOPY, AT THIS
STAGE, IS EXTREMELY HEAVY. WE STRONGLY RECOMMEND THAT YOU HAVE
SOMEONE HELP YOU.
1. Carefully rotate the canopy upright and place it as close as possible to the canopy mounting holes.
2. Finish connecting all the wires. When complete, stuff the excess wire down into the canopy mounting
holes (Figure 26A).
3. Use care placing the canopy support posts into the canopy mounting holes. DO NOT pinch the wires!
4. Place the screens on top of the canopy in the specified locations (Figure 26B).
