Page 14 SKU 97717 For technical questions, please call 1-800-444-3353.

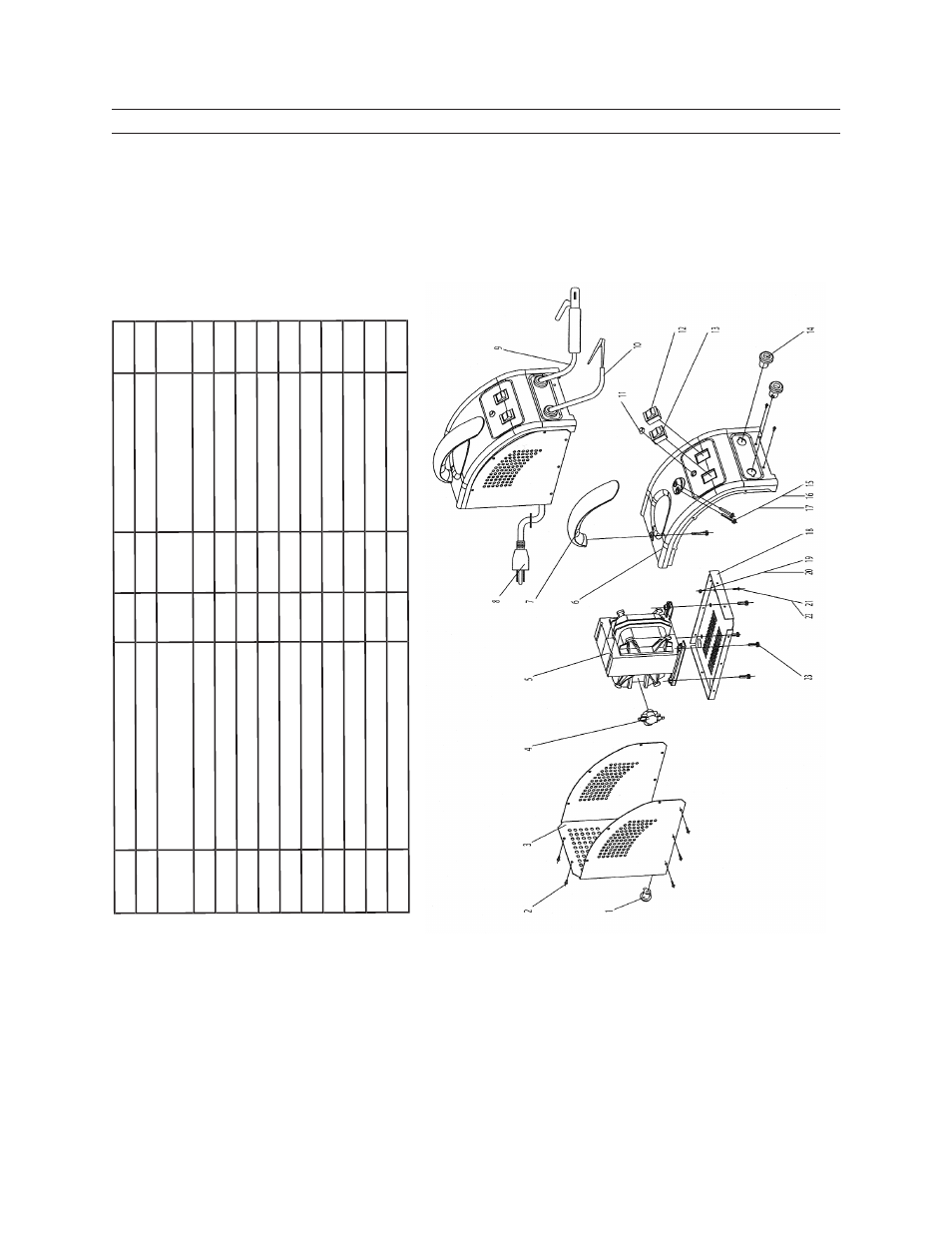

PARTS LIST AnD ASSEMbLY DIAgRAM
Part #
Description
Qty
.
Part #
Description
Qty
.
1
Cord Strain Relief (1.0mm)
1
13
Power Switch (Y
ellow)
1
2
Screw (ST3.9x13)
18
14
Cord Strain Relief (3.0mm)
2
3
Case
1
15
Screw (M5 x 25)
3
4
Temperature Control
1
16
Spring W
asher (#5)
3
5
Main
Transformer
1
17
Large W
asher (#5)
4
6
Panel
1
18
Bottom Plate
1
7
Handle
1
19
Nut (M4)
2
8
Power Cord
1
20
Tooth Lock W
asher (#4)
1
9
W
elding Cable w/Electrode Holder
1
21
Screw (M4 x 16)
1
10
Ground Cable w/Clamp
1
22
W
asher (#4)
1
11
Overload Indicator (Red)
1
23
Screw (M6 x 25)
4
12
MIN/MAX Switch
1
