4
Inspire Electric Fireplace
10009472

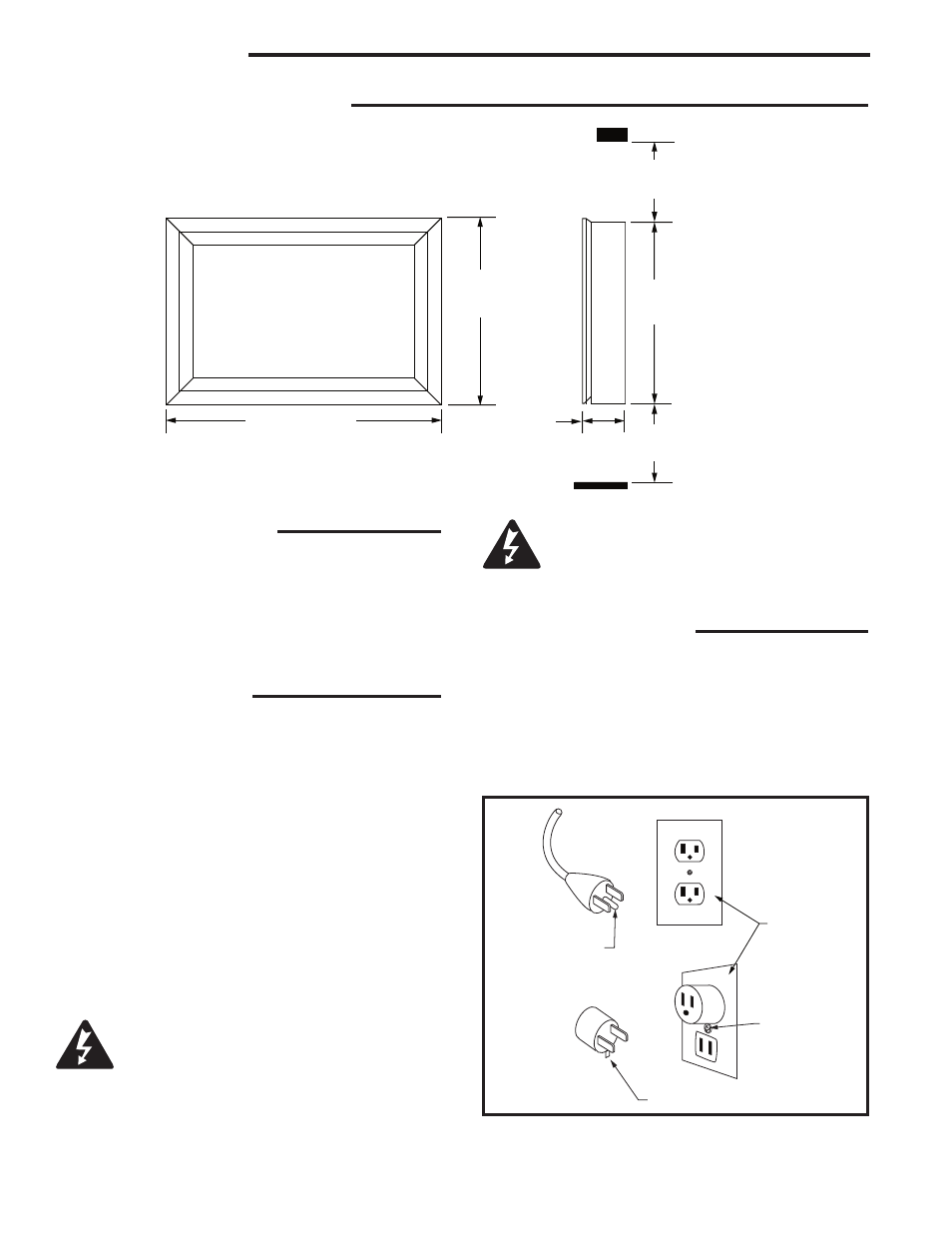

Fireplace Dimensions
Electrical Specifications
Voltage 120V ac, 60 Hz
Total Amps 7.9 Amps
Total Watts 1050W
Heater Rating 2 x 500W
Illumination 2 x 20W Low Energy Bulb
35�����” (910 mm)
24����”
(615 mm )
9���”
(250 mm)
5�����”
(145 mm)
36”
(914 mm)
9472
Inspire specs
8/06
[Heater Main Body Width 32���” (832 mm)]
23���"
(594 mm)
Minimum Shelf Height
(To Heater Main Body)
Minimum
From Floor
Electrical Connection
A 15 amp, 120 Volt, 60 Hz circuit with a properly
grounded outlet is required. Preferably, the fireplace
will be on a dedicated circuit as other appliances on the
same circuit may cause the circuit breaker to trip or the
fuse to blow when the heater is in operation. The unit
comes standard with a 6 ft. (1.8 m) long three wire cord,
exiting the left side of the fireplace. Plan the installa-
tion to avoid the use of an extension cord. Extension
cords are for temporary use only. If an extension cord
must be used, it must be UL/CSA certified, rated at 15A
(1875W), 125V maximum with 14 AWG minimum and
constructed of two current carrying conductors with
ground. A heavy duty extension cord with the shortest
length possible for the connection is recommended and
must not be longer than 50 ft. (15.2 m). Do not coil or
cover the extension cord.
Electrical outlet wiring must comply with
local building codes and other applicable
regulations to reduce the risk of fire, elec-
trical shock and injury to persons.
Do not use this fireplace if any part of it
has been under water. Immediately call a
qualified service technician to inspect the
fireplace and replace any part of the elec-
trical system which has been under water.
Grounding Instructions
This heater is for use on 120 volts. The cord has a plug
as shown at A in Figure 1. An adapter as shown at C
is available for connecting three-blade grounding-type
plugs to two-slot receptacles. The green grounding lug
extending from the adapter must be connected to a per-
manent ground such as a properly grounded outlet box.
The adapter should not be used if a three-slot grounded
receptacle is available.
A
B
C
������
���������
Grounding Pin
Grounding Means
Adapter
Cover of
Grounded
Outlet Box
Metal Screw
FP1636
Fig. 1 Grounding methods.
