Vermont Casting 2550CE - Manual (Page 28)

28
Encore Woodburning Stove
30003842
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
1
2
3
6
5
10
9
7
4
1
11
14
15
16
17
18
21
23
21
25
27
28
30
31
33
34
35
36
37
38
39
40
41
42
43
44
45
61
62
70
71
50
51
52
53
54
55
56a
57 58
59
60
72
74
73
75
77
81
79
78
84
74
83
43
8
24
24
88
87
86
80
82
80
22
22
85
0956
Encore parts
8/02
89
92 91
90
93
93
56

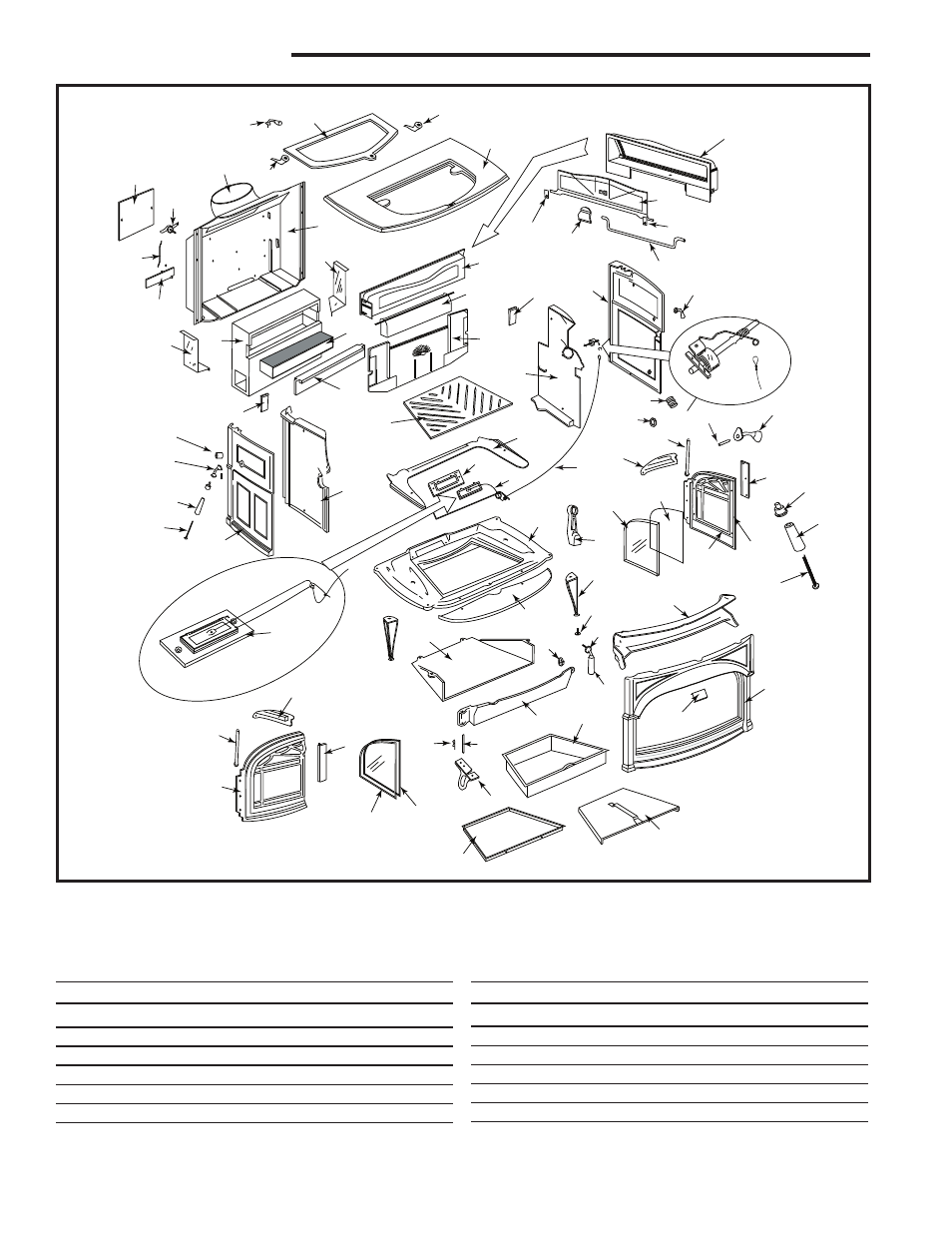

Encore Woodburning Stove
Model 2550CE
Item Description Part Number Item Description Part Number
1. Secondary Air Cover Plate 1601492
2. Secondary Air Probe Assy 1601489
3. Secondary Air Link II, ENC 1601486
4. Secondary Air Flap 1601490
5. Flue Collar (8”) See Chart Pg. 35
6. Back 1308620
7. Left Heat Deflector 1608629
8. Right Heat Deflector 1608630
9. Refractory Assy w/Access Panel 1602510
10. Catalytic Combustor 1602505
11. Refractory Access Panel 1602511
14. Left Griddle Quad 1301807
