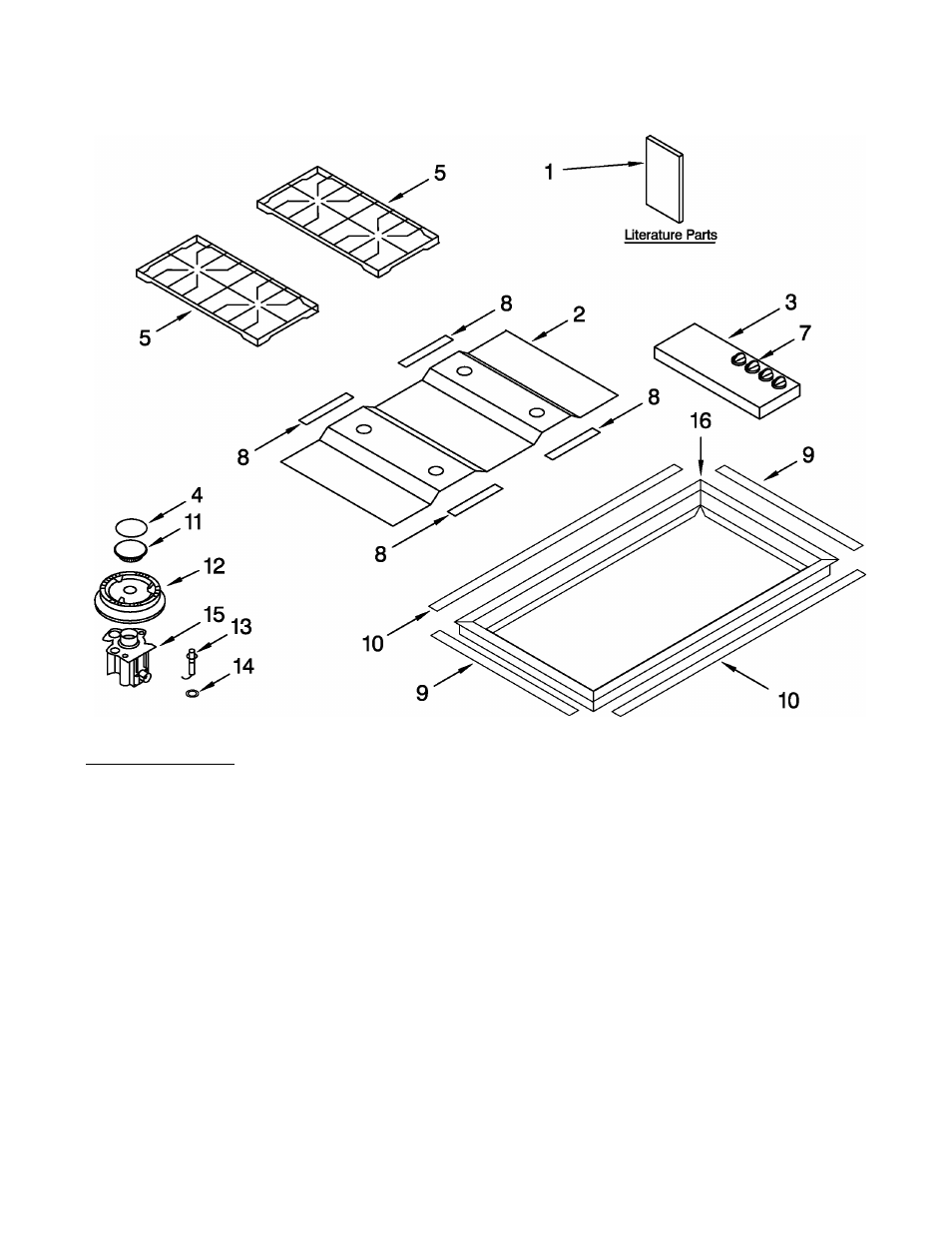

E» ^ COOKTOP, BURNER AND GRATE PARTS
\VhiTlpOol
For Models: GLS3064RS0
(Stainless Steel)
30" GAS COOKTOP
Illus. Part
No. No. DESCRIPTION
1
Literature Parts
9761893 Installation
Instructions
9761890 Use & Care Guide
9762236 LP Conversion
Instructions
2
8190934 Cooktop
3
8190935 Panel, Control
4
Cap, Burner
8190894 RR
8190893 RF - LR
8190895 LF
Illus. Part
No. No. DESCRIPTION
5
7
8
9
10
11
8190891
8190908
8190903
8190905
8190907
8190897
8190896
8190898
Grate (2)
Knob, Control (4)
Seal, Foam (4)
3/8 x 1/2 x 5.5"
Seal, Foam (2)
1/8 x 1/2 x 18"
Seal, Foam (2)
1/8 x 1/2 x 27"
Head, Burner
RR
RF-LR
LF
Illus. Part
No. No. DESCRIPTION
12
13
14
15
16
8190900
8190899
8190901
8190892
8190904
8190931
8190930
8190932
8190936
Base, Burner
RR
RF-LR
LF
Ignitor, Surf (4)
Clip, Spring (4)
Holder, Orifice
RR
RF-LR
LF
Frame, Top
Following Parts Not Illustrated
8190943 Harness, Wire
8190933 Ignitor Wire Kit
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
7-05 Litho in U.S.A. (jac)
Part No. 8190973
