Vermont Castings VCBVMN/MP & VCPVMN/MP Room Heaters
Vermont Castings, Majestic Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and
products at any time, without notice.

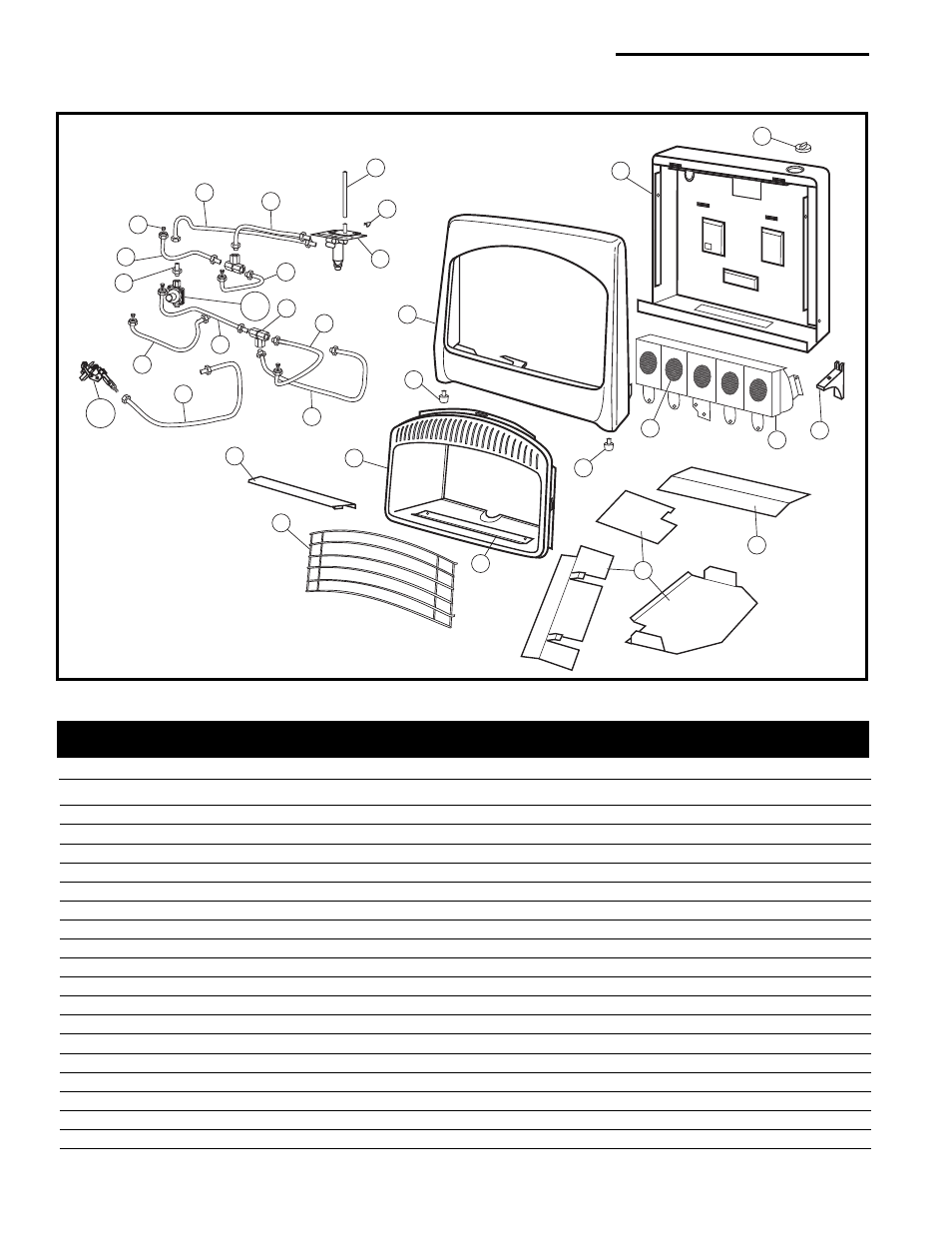

VCPVMN/MP Unvented Room Heater
Item / Model Number VCPV06MN/MP VCPV10MN/MP VCPV18MN/MP VCPV30MN/MP
1. Cover Heat - Lower RCP10XC0 RCP10XC0 RCP10XB0 RCP10XA0
2. Guard Assembly RBM33XX0 RBW33XX0 RBW30XX0 RBW26XX0
3. Reflector 0RH0002 RCP34PX0 RCP33PX0 RCW10XX0
4. Cover Heat - Upper -- - RBP61XA0 RBP61XA0
5. Leg Front RB106XX0 RBI06XX0 RBI06XX0 RBI06XX0
6. Front Panel RBP69PA0 RBP69PA0 RBP66PA0 RBP57PA0
7. Burner Body Assembly 2RH0006 RCW13XX0 RCW12XX0 RCW11XX0
8. Ceramic Plate 3D0310 RCC03XX0 RCC01XA0 RCC01XA0
9. Frame Body Assembly RBW32PB0 RBW32PB0 RBW27PB0 RBW20PB0
10. Knob - Valve RB104XX0 RBI04XX0 RBI04XX0 RBI04XX0
11. Leg - Rear RB105XX0 RBI05XX0 RBI05XX0 RBI05XX0
12. Link - Valve RCP13XE0 RCP13XE0 RCP13XD0 RCP13XC0
13. Fix Pin - Link RCS01XX0 RCS01XX0 RCS01XX0 RSC01XX0
14a. Gas Control (Daemyeong Korea) DMV100PHB DMV200PA DMV300PA DMV300PA
15. Tubing Inlet Assembly RCT65XX0 RCT65XX0 RCT51XX0 RCT37XX0
16. Tubing Outlet - A Assembly 3RH0005 RCT66XX0 RCT52XX0 RCT38XX0
17. Tubing Outlet - B Assembly -- RCT67XX0 RCT53XX0 RCT09XX0
18. Tubing Outlet - BL Assembly -- -- -- RCT40XX0
19. Tubing Outlet - BR Assembly -- -- -- RCT41XX0
