ExtremeView Direct Vent Gas Fireplaces
Models • 33XDV • 36XDV • 39XDV
© 2008 CFM Corporation - All rights reserved. Vermont Castings ® is a registered trademark of CFM Corporation.
In the interest of constant product improvements, we reserve the right to change specifications without notice.
Before installations, please read Installation Instructions and check all local Building Codes and Gas Regulations.
Please see your Dealer or visit www.vermontcastings.com for complete warranty information.

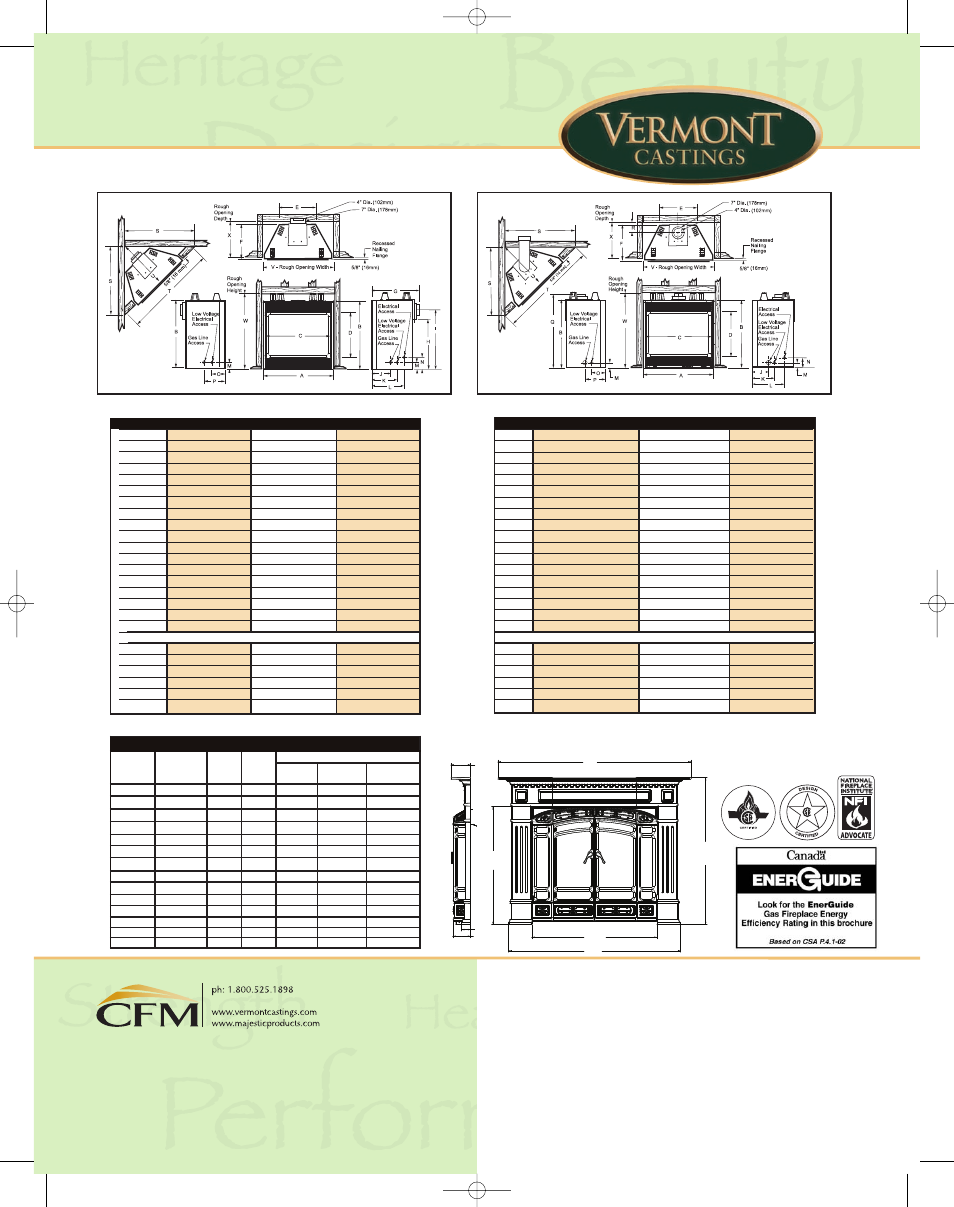

FIREPLACE DIMENSIONS - XDV (REAR VENT) FIREPLACE DIMENSIONS - XDV (TOP VENT)
36/39 Units include 4” stand-offs on top. All units require 3/4” clearance to the front top.
6”
2 13 16 ”
716
” /
50 116
” /
35 716
” /
34 8
”
56
2”
43 8
”
5
Georgian Cast Surround and Bay Front
Specifications for 36XDV
Ref. 33XDV 36XDV 39 XDV
A 33”(838 mm) 36”(914 mm) 39”(991 mm)
B 28 7/8”(733 mm) 34 1/4”(870 mm) 34 1/4”(870 mm)
C 31 1/4”(794 mm) 34 1/4”(870 mm) 37 1/4”(946 mm)
D 18 3/8”(466 mm) 23”(584 mm) 23”(584 mm)
E 22 3/4”(578 mm) 24”(610 mm) 27”(686 mm)
F 14 3/8”(365 mm) 16 1/4”(413 mm) 16 1/4”(413 mm)
G -- -- -- -- -- --
H -- -- -- -- -- --
I -- -- -- -- -- --
J 4 5/8”(118 mm) 5 5/8”(143 mm) 5 5/8”(143 mm)
K 6 3/8”(162 mm) 8”(203 mm) 8”(203 mm)
L 8 7/8” (225 mm) 11 7/8”(302 mm) 11 7/8”(302 mm)
M 2” (51 mm) 2”(51 mm) 2”(51 mm)
N 3 3/8”(85 mm) 3 1/4”(82 mm) 3 1/4”(82 mm)
O 4 5/8”(117 mm) 6 3/4”(171 mm) 6 3/4”(171 mm)
P 6 3/8”(162 mm) 9 1/4”(235 mm) 9 1/4”(235 mm)
Q 31 3/4”(806 mm) 37”(939 mm) 37”(939 mm)
R 6 5/32”(156 mm) 6 3/4”(170 mm) 6 3/4”(170 mm)
Framing Dimensions
S 36”(914 mm) 39 3/4”(1010 mm) 43 1/8”(1095 mm)
T 51”(1295 mm) 55 1/4”(1403 mm) 60 7/8”(1546 mm)
U 25 1/4”(641 mm) 28 1/8”(714 mm) 30 7/8”(784 mm)
V 33 1/2”(851 mm) 36 1/2”(927 mm) 39 1/2”(1003 mm)
W 31”(787 mm) 38 5/8”(980 mm) 38 5/8”(980 mm)
X 14 7/8”(378 mm) 16 3/4”(425 mm) 16 3/4”(426 mm)
Ref. 33XDV 36XDV 39 XDV
A 33”(838 mm) 36”(914 mm) 39”(991 mm)
B 28 7/8”(733 mm) 34 1/4”(870 mm) 34 1/4”(870 mm)
C 31 1/4”(794 mm) 34 1/4”(870 mm) 37 1/4”(946 mm)
D 18 3/8”(466 mm) 23”(584 mm) 23”(584 mm)
E 22 3/4”(578 mm) 24”(610 mm) 27”(686 mm)
F 14 3/8”(364 mm) 16 1/4”(413 mm) 16 1/4”(413 mm)
G 16 3/4” (426 mm) 18 3/4”(476 mm) 18 3/4”(476 mm)
H 19 3/16” (487 mm) 24 1/4”(616 mm) 24 1/4”(616 mm)
I 22 11/16”(576 mm) 28 1/8”(714 mm) 28 1/8”(714 mm)
J 4 5/8”(118 mm) 5 5/8”(143 mm) 5 5/8”(143 mm)
K 6 3/8”(160 mm) 8”(203 mm) 8”(203 mm)
L 8 7/8”(225 mm) 11 7/8”(302 mm) 11 7/8”(302 mm)
M 2”(51 mm) 2”(51 mm) 2”(51 mm)
N 3 3/8”(85 mm) 3 1/4”(82 mm) 3 1/4”(82 mm)
O 4 5/8”(117 mm) 6 3/4”(171 mm) 6 3/4”(171 mm)
P 6 3/8”(162 mm) 9 1/4”(235 mm) 9 1/4”(235 mm)
Q -- -- -- -- -- --
R -- -- -- -- -- --
Framing Dimensions
S 36”(914 mm) 41 5/8”(1051 mm) 44”(1118 mm)
T 51”(1295 mm) 58 7/8”(1495 mm) 62 1/4”(1581 mm)
U 25 1/4”(641 mm) 29 7/8” (748 mm) 31 1/8”(790 mm)
V 33 1/2”(851 mm) 36 1/2”(927 mm) 39 1/2”(1003 mm)
W 31”(787 mm) 38 5/8”(980 mm) 38 5/8”(980 mm)
X 14 7/8”(378 mm) 116 3/4”(426 mm) 16 3/4”(425 mm)
Efficiency Ratings
Model Fuel
Max
Output
Min
Output
Efficiencies
EnerGuide
Ratings
Steady State
Ratings
AFUE by
D.O.E. Rating
33XDVRN Natural Gas 21,500 4,400 60.1 81% 64%
33XDVRP Propane 21,500 5,425 60.1 82% 64%
33XDVEN Natural Gas 21,500 4,400 66.2 81% 64%
33XDVEP Propane 21,500 5,425 66.2 82% 64%
36XDVRN Natural Gas 27,500 5,150 61.8 84% 64%
36XDVRP Propane 27,500 5,500 61.8 85% 64%
36XDVRFN Natural Gas 27,500 5,810 61.8 84% 64%
36XDVRFP Propane 27,500 6,225 61.8 85% 64%
36XDVEN Natural Gas 27,500 5,150 66.6 84% 64%
36XDVEP Propane 27,500 5,500 66.6 85% 64%
39XDVRN Natural Gas 30,000 6,700 61.6 81% 64%
39XDVRP Propane 30,000 5,800 61.8 82% 64%
39XDVEN Natural Gas 30,000 6,700 65.8 81% 64%
39XDVEP Propane 30,000 5,800 65.8 82% 64%
