Backsplash kit installation instrnctions
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
Backsplash Kit
Installation Instrnctions

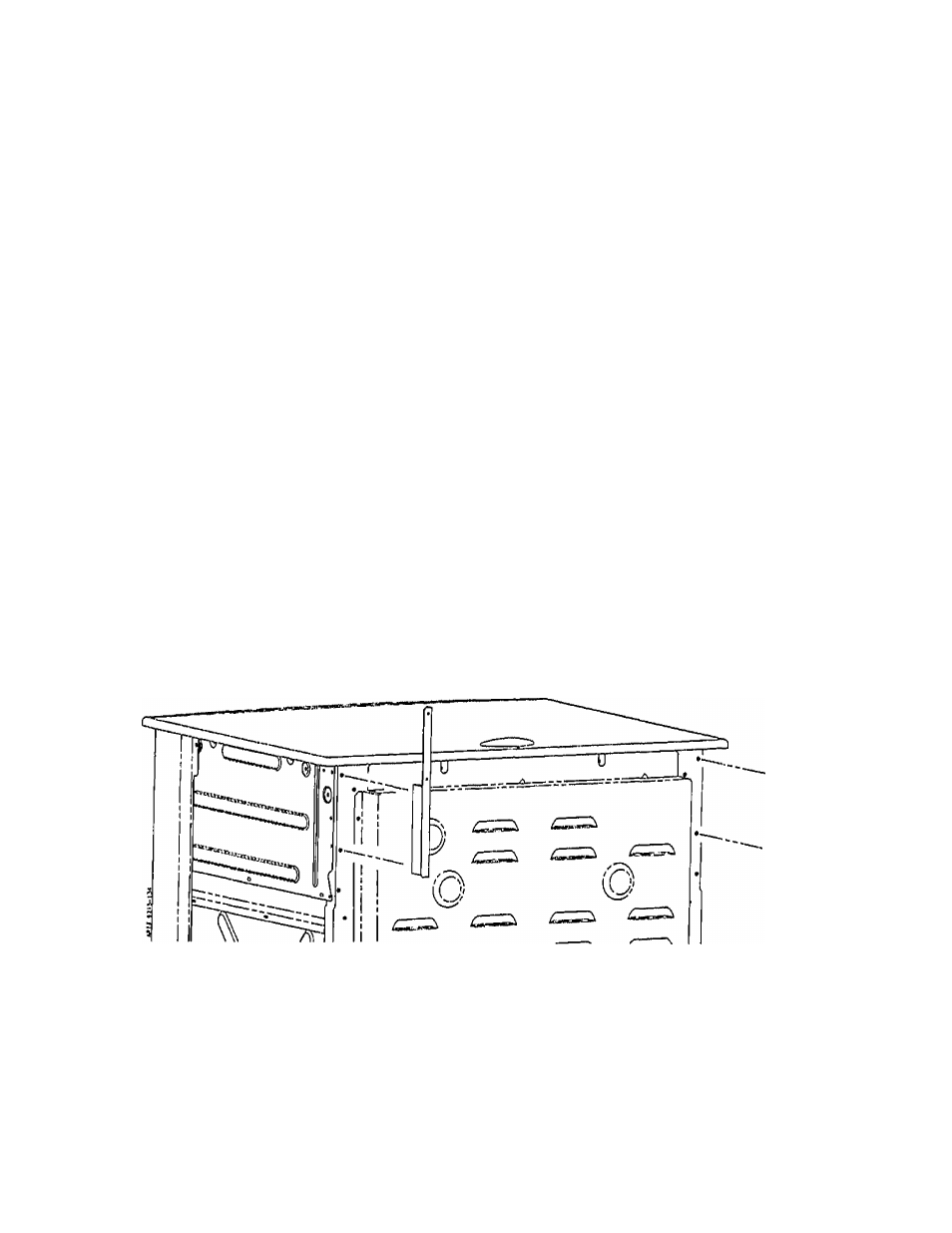

1. Attach backsplash mounting brackets to the back t)i the range as shown. Use 4 pieces oi the
#8 screws irom the parts bag provided.
2. Slide the backsplash downwai'd t>n the moimtng bracket as shown and align holes in
backsplash with holes in mounting bracket.
3. Attach backsplash to mounting bracket witii 4 pieces of the #8 screws from the bag provided.
