Seats and Restraints

3-23

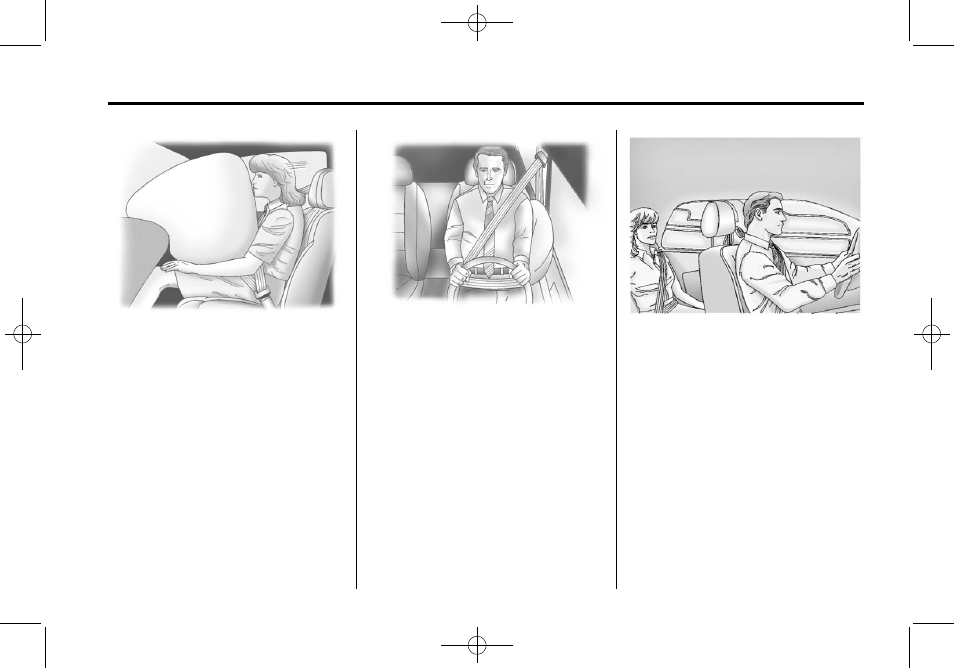

The right front passenger frontal
airbag is in the instrument panel on
the passenger side.

Driver Side Shown, Passenger

Side Similar

The seat‐mounted side impact
airbags for the driver and right front
passenger are in the side of the
seatbacks closest to the door.

Driver Side Shown, Passenger

Side Similar

The roof-rail airbags for the driver,
right front passenger, and second
row outboard passengers are in the
ceiling above the side windows.
