10-56 Vehicle Care
Center Instrument Panel Fuse
Block
The center instrument panel fuse
block is located underneath the
instrument panel, to the left of the
steering column.

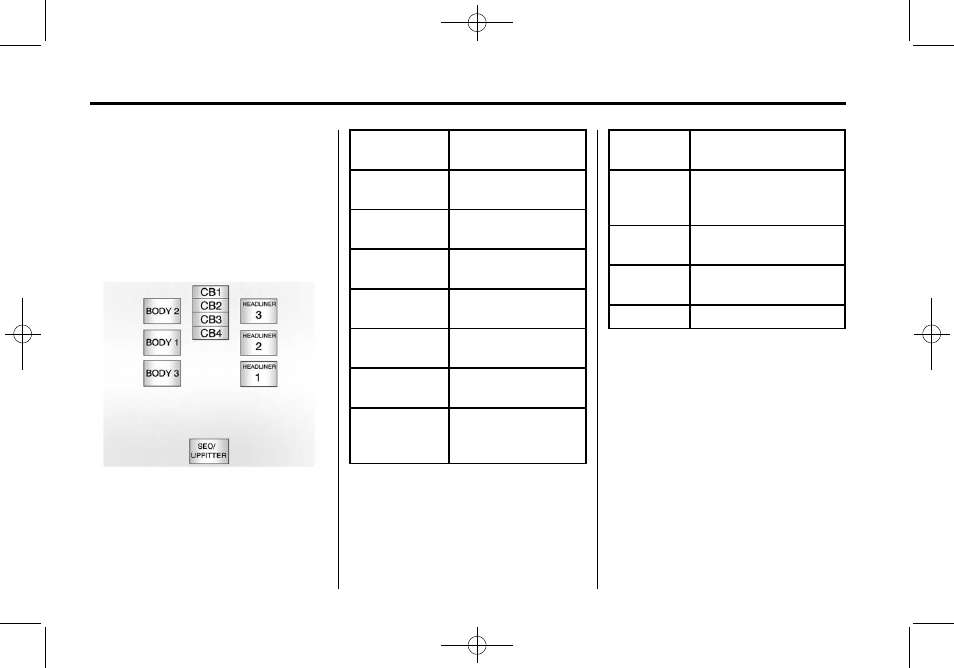

Top View
Harness
Connector Usage
BODY 2
Body Harness
Connector 2
BODY 1
Body Harness
Connector 1
BODY 3
Body Harness
Connector 3
HEADLINER
3
Headliner Harness
Connector 3
HEADLINER
2
Headliner Harness
Connector 2
HEADLINER
1
Headliner Harness
Connector 1
SEO/
UPFITTER
Special Equipment
Option Upfitter
Harness Connector
Circuit
Breaker Usage
CB1
Passenger Side
Power Window Circuit
Breaker
CB2
Passenger Seat
Circuit Breaker
CB3
Driver Seat Circuit
Breaker
CB4 Rear Sliding Window
