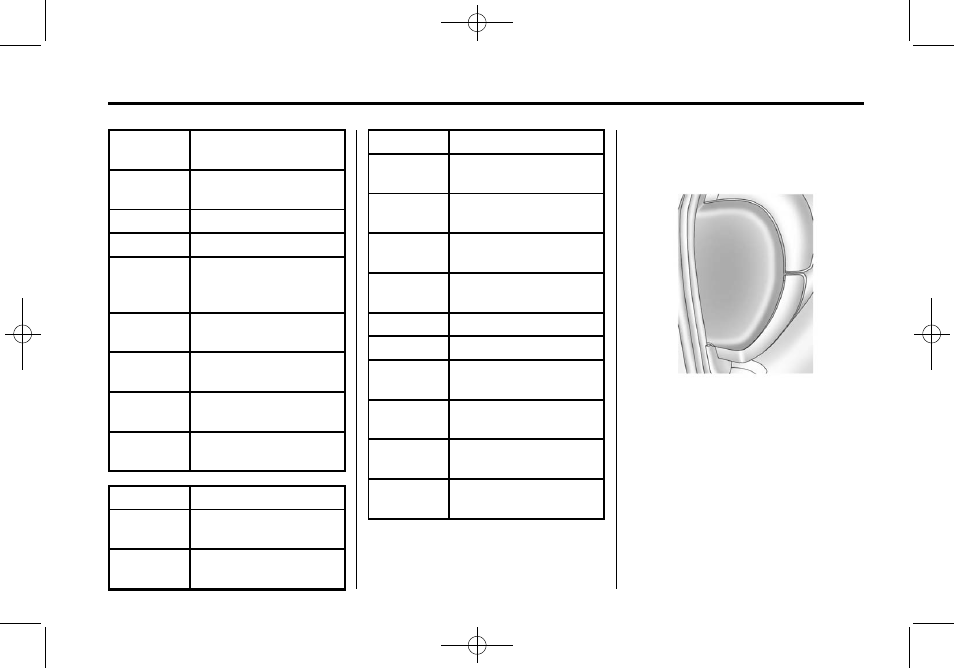

J-Case
Fuses
Usage
65
Electric Running
Boards
66
Not Used
67
Transfer Case
68
Stud 1 (Trailer
Connector Battery
Power)
69
Mid-Bussed Electrical
Center 1
70
Climate Control
Blower
71
Power Liftgate
Module
72
Left Bussed Electrical
Center 2
Relays
Usage
FAN HI
Cooling Fan High
Speed
FAN LO
Cooling Fan Low
Speed
Relays
Usage
FAN
CNTRL
Cooling Fan Control
HDLP
LO/HID
Low-Beam Headlamp
FOG
LAMP
Front Fog Lamps
A/C
CMPRSR
Air Conditioning
Compressor
STRTR
Starter
PWR/TRN Powertrain
FUEL
PMP
Fuel Pump
PRK
LAMP
Parking Lamps
REAR
DEFOG
Rear Defogger
RUN/
CRNK
Switched Power
Instrument Panel Fuse
Block
The instrument panel fuse block
access door is located on the driver
side edge of the instrument panel.
Pull off the cover to access the fuse
block.
