Black plate (13,1)

Chevrolet Traverse Owner Manual - 2012

Climate Controls

8-13

4. If needed, unsnap the

instrument panel compartment
assembly (B) from the
instrument panel. When
reinstalling, be sure the
instrument panel compartment
dampener arm is aligned
properly to the dampener gear
assembly.

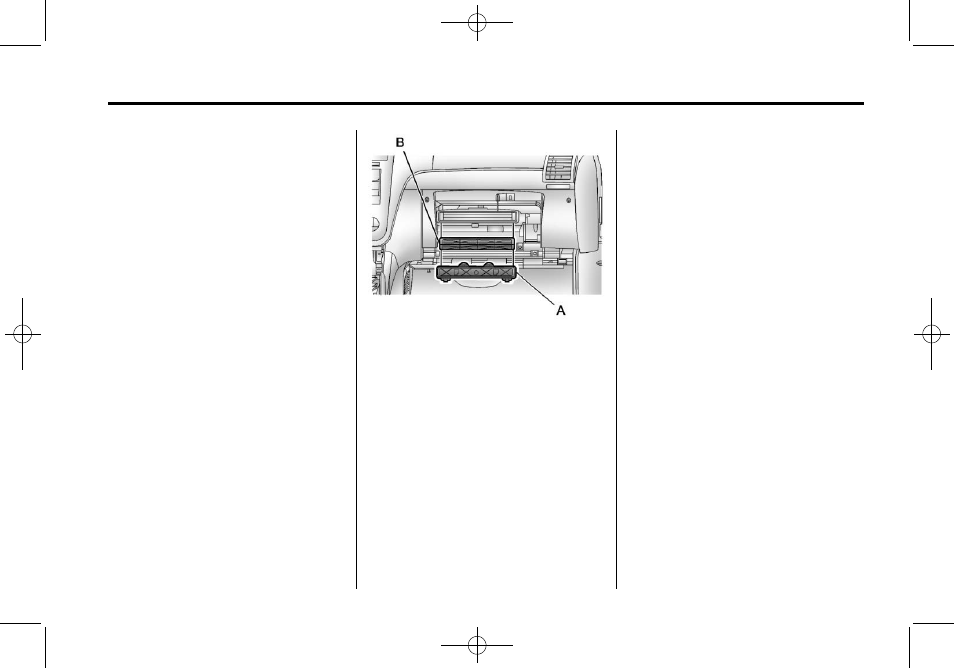

5. Squeeze the housing cover (A)

tabs to remove.

6. Remove the old air filter from the

passenger compartment air filter
housing (B).

7. Install the new air filter.

8. Replace the housing cover.

9. If removed, reinstall the

instrument panel compartment
assembly.

10. Reinstall the compartment

retainers.

See your dealer if additional
assistance is needed.
