Chandler Limited AMP/DI User Manual
Germanium pre amp/di

Thank you for purchasing the Chandler Limited Germanium Pre amp/DI. This unit is proudly hand
wired and assembled in the USA. This unit is made with a 100% discrete transistor circuit and
specially wound transformers. Included are item descriptions and hints to get you on your way.
Connections -
All connections on the Germanium are transformer balanced with pin 2 hot.
Power supply -
This is designed to be used with Chandler Limited PSU-1 MKII power supply.
The power pin out is as follows:
1) chassis and audio ground
2) 48 volt
3) +28 volt
4) -28 volt
Notes on Grounding -
The back of the power supply has two black banana connectors. These
join the audio ground to the earth ground with a solid wire between them. Depending on your studio
you may want to connect or disconnect this. Turn up your monitors or headphones to experiment
with which has a lower noise floor in your system. You may also need to join the audio banana plug
to other sections of your studio to obtain the lowest noise floor. The connectors are located near the
closest edge of the power supply case. Use something simple, like a guitar cord, and touch the tip
to other portions of your studio to find the best results.
GERMANIUM PRE AMP/DI
For peak performance, please allow the unit to warm up for at least 25 minutes before use.

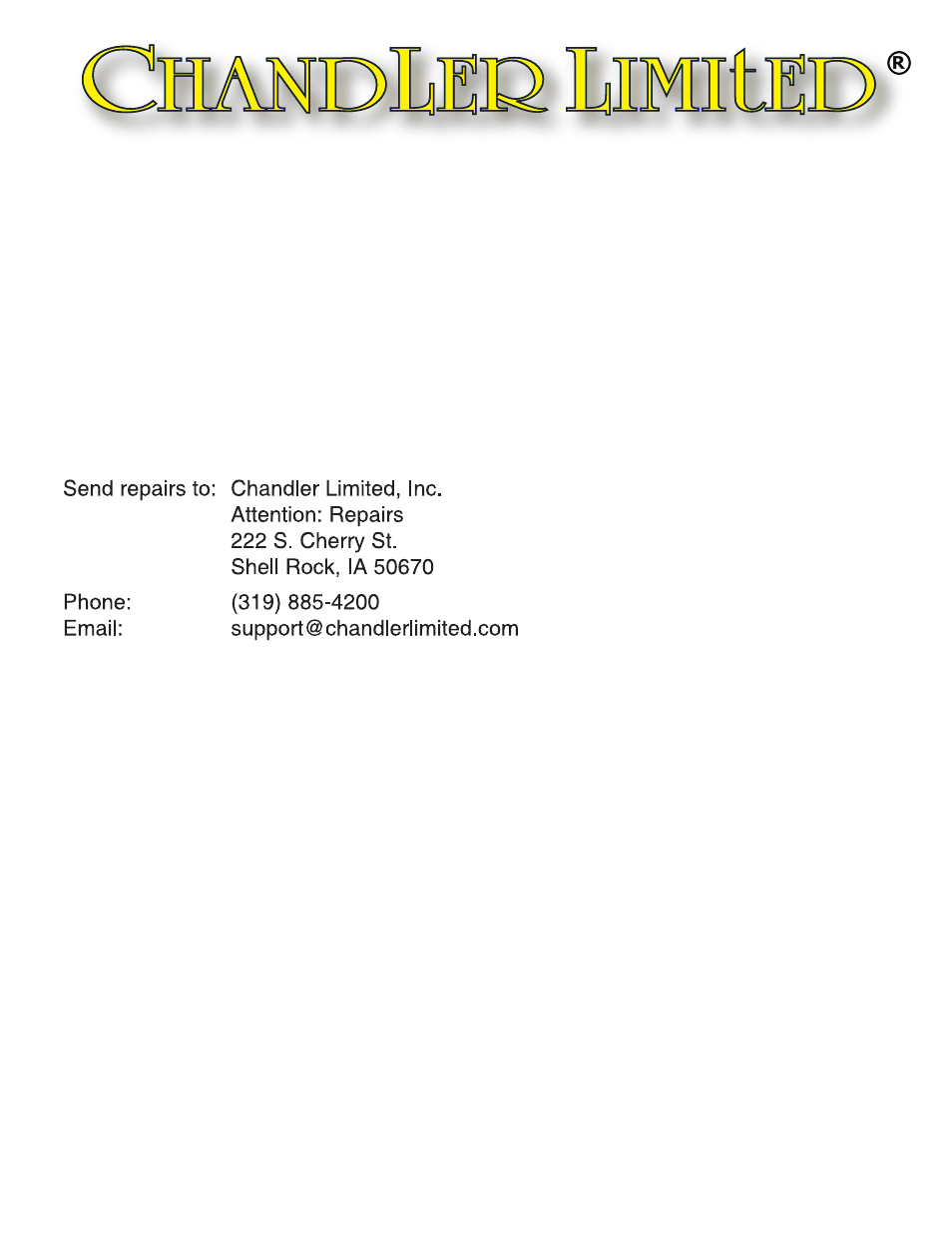

Prior to sending in your gear for repair, please contact our shop at the number below. We will assist
you in troubleshooting the problem and if needed, we will issue you an RMA# to send in the gear.
Please feel free to call our shop anytime for help or questions.
