6-68
Main and Auxiliary Instrument Panel Fuse Blocks
The main and auxiliary instrument panel fuse blocks are
located on the passenger’s side of the vehicle, under the
instrument panel. Lamps, connectors and the HVAC
duct temperature sensors may need to be disconnected
and removed to allow access to these fuse blocks.
Remove the hush panel on the passenger’s side to reveal
the fuses by performing the following steps:
1. Remove the two screws located along the front edge
of the panel.
2. Lower the hush panel.
3. Remove the fuse block cover.
4. Place the wide end of the fuse puller over the plastic
end of the fuse.
5. Squeeze the ends over the fuse and pull it out.
When finished, reinstall the fuse block cover and the
hush panel. Reinstall lamps, connectors and HVAC duct
temperature sensors if they were removed.

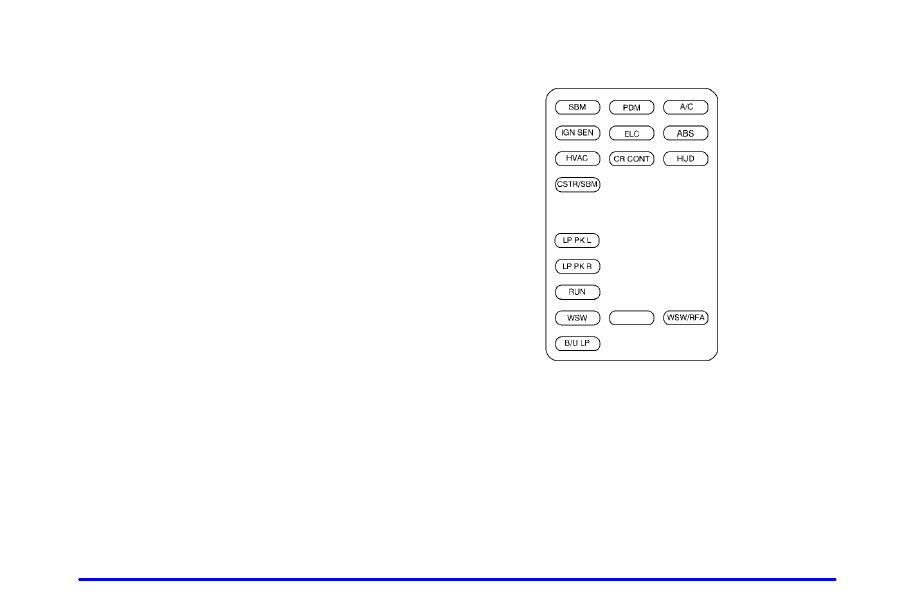

Main Instrument Panel Fuse Block
Fuse Usage
SBM Interior Lamps
PDM PDM Module
A/C HVAC Motor, HVAC Mix Motors
