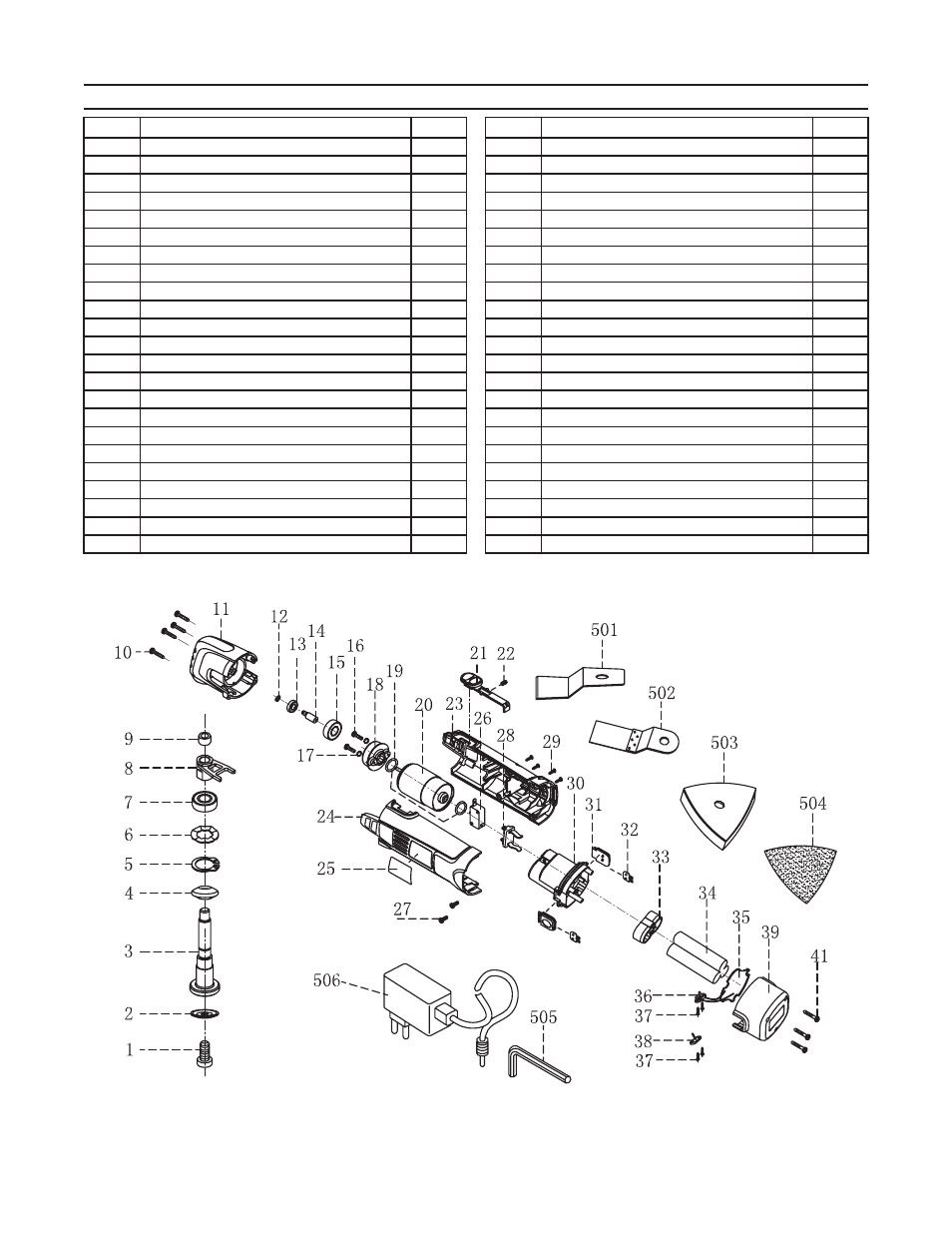

partS LiSt & aSSemBLY diagram
part description Qty
1 Cap Screw M8 x 12 1
2 Retainer 1
3 Spindle 1
4 Rubber Casing 1
5 Circlip for shaft 26 1
6 Spring Washer 1
7 Bearing 6000 1
8 Block 1
9 Bushing 1
10 Screw ST4 x 20 4
11 Reducer 1
12 Circlip for Shaft 4 1
13 Bearing 625 1
14 Shaft 1
15 Bearing 608 1
16 Screw M3 x 18 2
17 Seal Packing Collar 2
18 Middle Cover 1
19 Seal Packing Collar 2
20 Motor 1
21 Trigger 1
22 Spring 1
23 Right Housing 1
part description Qty
24 Left Housing 1
26 Power Switch 1
27 Screw ST3.2 x 14 2
28 Electrical Contact 1
29 Screw ST3.2 x 14 4
30 Battery Cover (Front) 1
31 Battery Button 2
32 Button Spring 2
33 Pole End Plate 1
34 Battery (Li-ion) 12V 1
35 Protection Board 1
36 Charging Port 1
37 Screw ST2 x 8 4
38 Charging Indicator 1
39 Battery Cover (End) 1
41 Screw ST3.2 x 14 3
501 Scraper Blade 1
502 Cutting Blade 1
503 Sanding Pad 1
504 Sandpaper 4
505 Hex Wrench 1
506 Charger 1
507 Case (not shown) 1
