DRAIN PAN
8

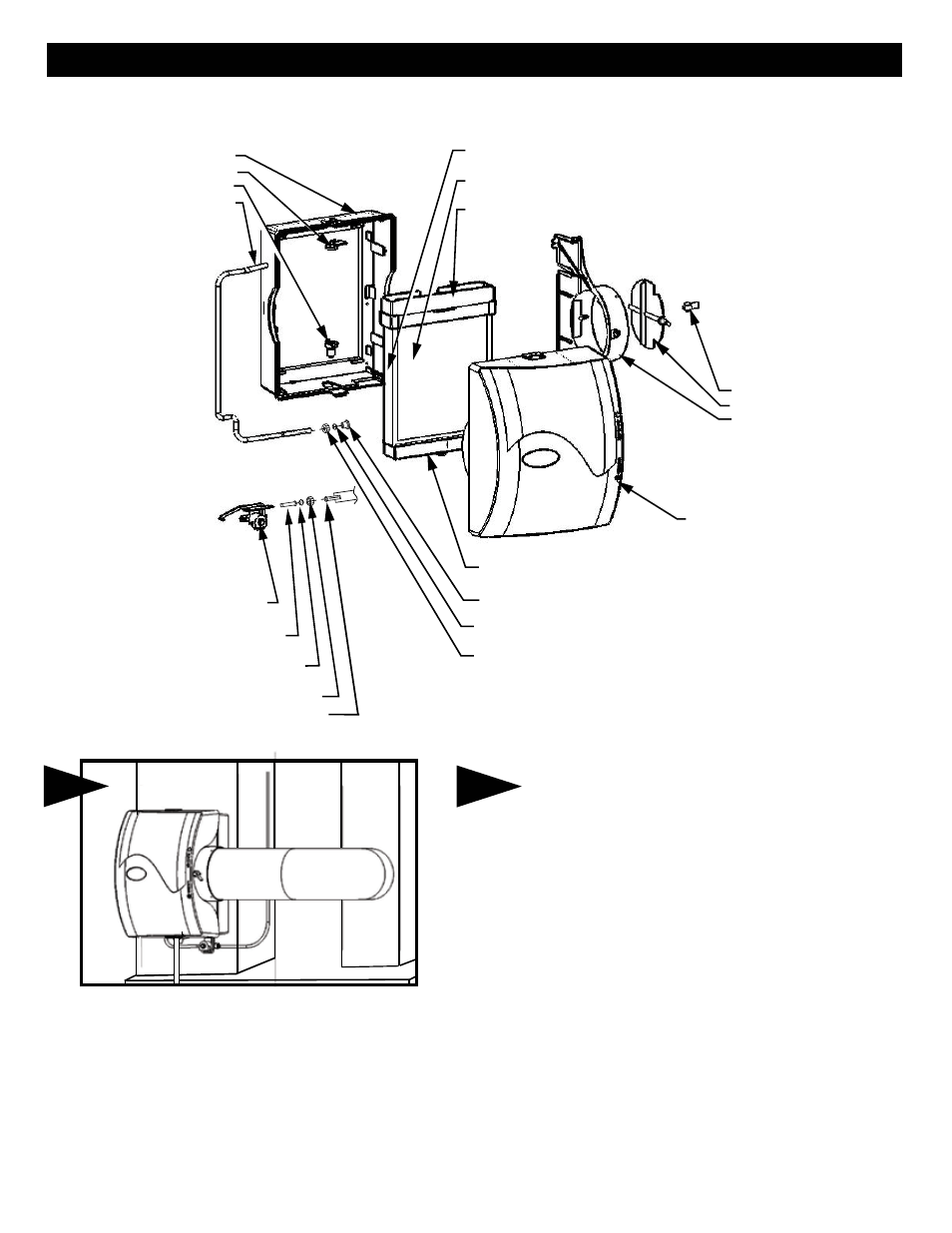

PARTS LIST FOR HUMIDIFIER
DAMPER KNOB
DAMPER DISK
SIDE PANEL DISCHARGE
PAD RAIL
229019 EVAPORATOR PAD
DISTRIBUTOR TROUGH
COVER
YELLOW ORIFICE
COMPRESSION SLEEVE
COMPRESSION NUT
CHASSIS
NOZZLE
SPOUT
229040 SOLENOID VALVE ASM
229004 STRAINER SCREEN
COMPRESSION SLEEVE
COMPRESSION NUT
DISTRIBUTOR TUBE
INSERT FOR PLASTIC TUBING
7
Turn damper knob to winter (open) position. Turn on water
supply and check operation of humidifier. Set humidistat to a
demand setting. With the furnace off, the solenoid valve should be
closed. Start the furnace. The solenoid valve should open when
the blower or burner circuit is energized. Check flow of water
through distributor trough and evaporator pad. The standard
(yellow) orifice will supply approximately 3.5 GPH of water at a
line water pressure of 60 psi. Leave humidistat set at the
recommended setting.
Connect drain hose to 1/2" spout on humidifier cabinet using
hose clamp. Run 1/2" hose to suitable drain such as floor
drain, sewer or laundry sink. Be sure hose has continuous
slope and is not kinked at any point.
