Page 4

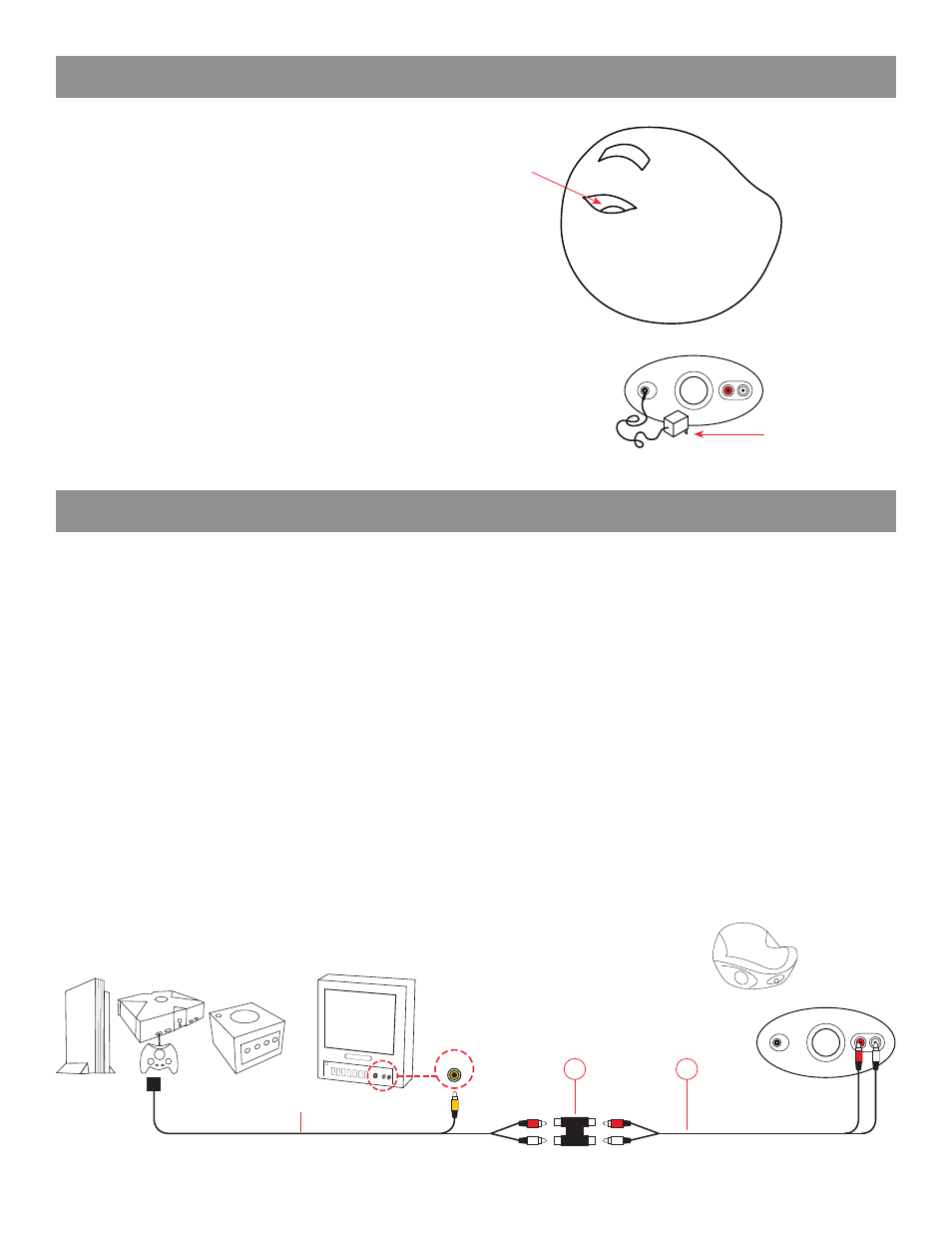

Step 1: Unzip battery pocket on back of ELECTROPOD™.

Step 2: Open battery compartment.

Step 3: Insert 4 “AA” cell batteries (not included).

Step 4: Close battery compartment securely.

Step 5: Turn ELECTROPOD™ on by turning Power knob (A) clockwise.

Step 1: Connect adaptor cord to power input (C) on Control Panel

Step 2: Using a 6 Volt AC adaptor (sold separately) , plug adaptor to wall outlet.

Step 3: Turn ELECTROPOD™ on by turning Power knob (A) clockwise.

BATTERY POWER SUPPLY

AC POWER SUPPLY

(not included, can be purchased at electronics store)

CONNECTING TO GAME CONSOLES

Step 1: Plug yellow composite video cable from game console into video input of TV. (Fig. 1)

Step 2: Plug Red/White RCA cord from game console into RCA INPUT (B) of ELECTROPOD™. (Fig. 2)

Step 1: Connect Audio Coupler (3c) to Red/White RCA cord from game console.
Step 2: Connect one end of RCA cord (3b) into other end of Audio Coupler (3c).
Step 3: Connect other end of RCA cord (3b) into RCA INPUT (B) of ELECTROPOD™.

Note: Most game consoles are supplied with a custom connector with yellow video out and RCA red/white audio out.

CAUTION: Use ONLY 6 Volt AC 500mA adaptor! Different voltage may cause permanent damage to ELECTROPOD™!

Note: It may be necessary to extend your ELECTROPOD™ further away from your TV or console. Here’s how. (Fig.3)

ASSEMBLY INSTRUCTIONS

GAME CONSOLE

ELECTROPOD™

Fig. 1

Fig. 2

Cable supplied with game console

Fig. 3

AUDIO COUPLER (3c)

BACK VIEW

DASHBOARD

Battery

Compartment

6V AC Power Supply

(sold separately)
