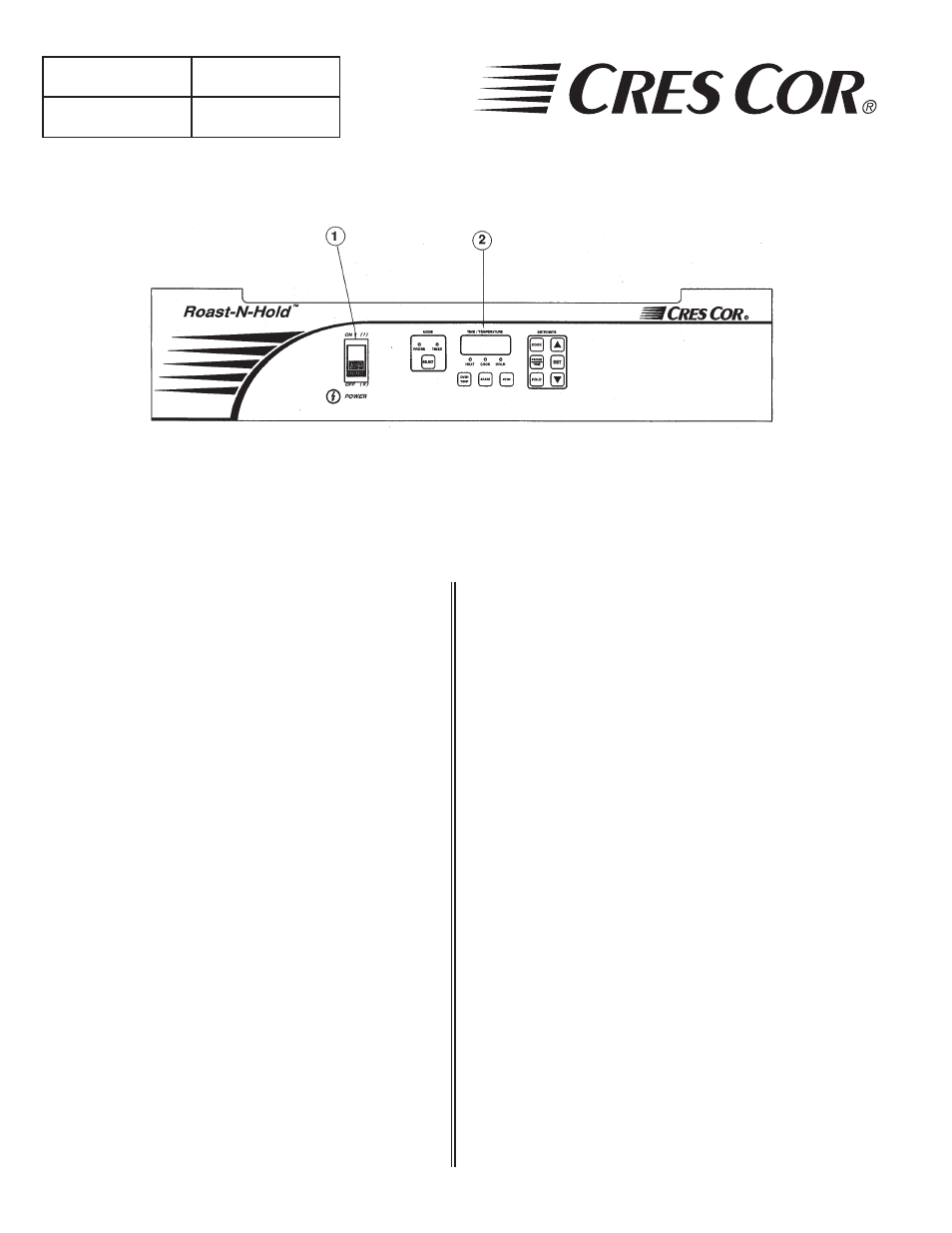

FIGURE 2: CONTROL PANEL
REPLACEMENT PARTS
Include all information on nameplate when ordering parts
ITEM DESCRIPTION CMP Part No.
1. Switch (On/Off) 0808-113-01
2. Microprocessor Control 0848-070-02
3. Vent Fan 0769-174
4. Fan Guard 0769-167
5. Fuse 0807-058
Fuse Holder 0807-048
6. Blower Kit 0769-006-K
7. Contactor 0857-026
8. Terminal Block, front 0852-096
9. Terminal Block, rear 0852-093
10. Switch, Fan 0848-034
11. Hi Limit Switch 0848-079
12. Sensor 0848-073-01
13. Sensor Bushing 0818-014
14. Connector, probe 0848-059-01
Probe 1.5” long 0848-059-02
Probe 6” long 0848-059-04
Hot Unit Replacement Parts
ITEM DESCRIPTION CMP Part No.
PARTS for 8200W, 1-PH UNITS
21. Power Cord
0810-124
Power Cord (Pass-thru) 0810-161
22. Heater Kit, 208V 0811-261
Heater Kit, 240V 0811-262
23. Strain Relief 0818-061
PARTS for 8200W, 3-PH UNITS
21. Power Cord
0810-132
Power Cord (Pass-thru) 0810-162
22. Heater Kit, 208V 0811-261
Heater Kit, 240V 0811-262
23. Strain Relief 0818-050
PARTS for 4700W, 1-PH UNITS
21. Power Cord
0810-163
22. Heater Kit, 208V 0811-020
Heater Kit, 240V 0811-020-01
23. Strain Relief 0818-050
PARTS for 4700W, 3-PH UNITS
21. Power Cord
0810-164
22. Heater Kit, 208V 0811-020
Heater Kit, 240V 0811-020-01
23. Strain Relief 0818-050
