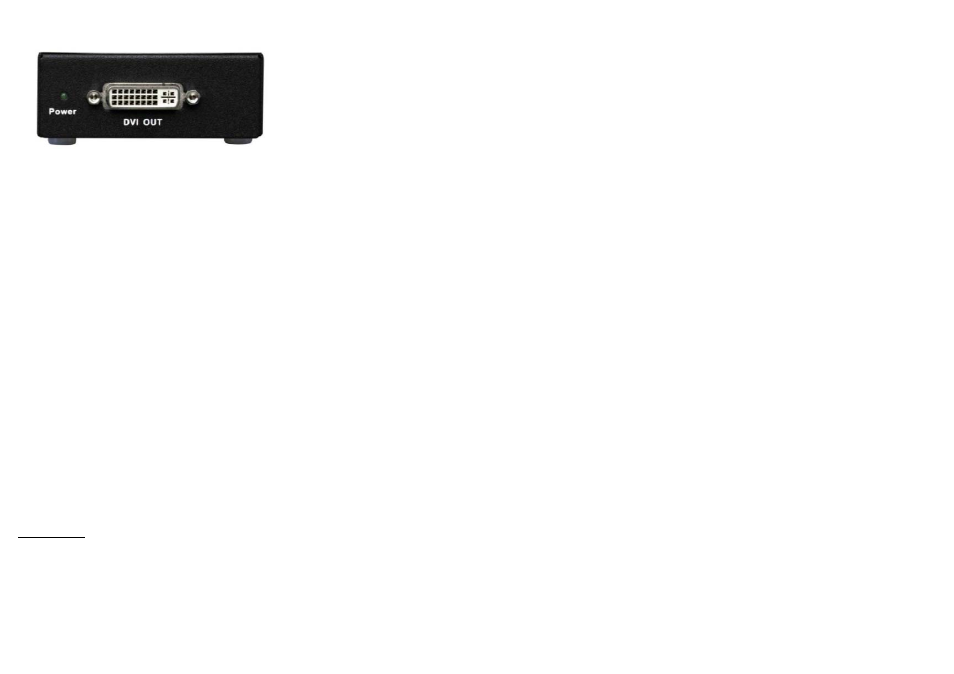

REAR VIEW
1. Power LED
2. “DVI Out” Port
Installation
1. Turn off the PC and monitors.
2. Connect the DVI male extension cable between the PC
and the “DVI In” port of repeater.
3. Connect the DVI male/female extension cables between
the monitors and the “DVI out” ports of repeater.
4. Connect the power cord and turn on the repeater.
5. Turn on the PC and monitors.
