Always make sure there is sufficient liquid in the tank. Operating this unit without liquid will
cause damage to the pump as well as over-heating of the heater.
If your fog machine fails to work properly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your ANTARI dealer for
service.
Pay attention to all warning labels and instructions printed
on the exterior of your ANTARI fog machine
Unpacking & Inspection
Open the shipping carton and verify that all equipment necessary to operate the system has
arrived intact. The shipping carton should contain the following items:
1. One unit of IP-1000 Fog Machine
2. Fluid tube
3. Fluid filter
4. User manual
If any equipment is missing contact your ANTARI dealer immediately.
Before beginning your initial setup on your ANTARI fog machine, make sure that there is no
evident damage caused by transportation. In the event that the unit's housing or cable is
damaged, do not plug it in and do not attempt to use it until after contacting your ANTARI
dealer for assistance.
Setup
Remove all packing materials from the shipping box. Check that all foam and plastic padding
is removed, especially in the nozzle area.
Place the fog machine on a flat surface.
Place the fluid tube into a properly filled fluid tank.
F i l l w i t h o n l y A n t a r i - a u t h o r i z e d F o g l i q u i d . T h e A n t a r i I P - 1 0 0 0 o n l y w o r k s w i t h
uncontaminated Antari FLR or FLG Fog Liquid. Other fluids may cause spitting and other
clogging problems and could result in the production of an unhealthful fog. The use of other
fluids will void the warranty of the Antari IP-1000. When filled, please place the cap back on
the liquid tank.
Operation
Connect the fog machine to a grounded power outlet. As soon as the unit is plugged in, the
heater starts to heat up. When the red light of the controller goes off, the heating process is
completed successfully.
Press and depress the switch on the remote control to adjust the fog output.
Note that there are no timer or any other controllers available for this model (no optional
accessories).

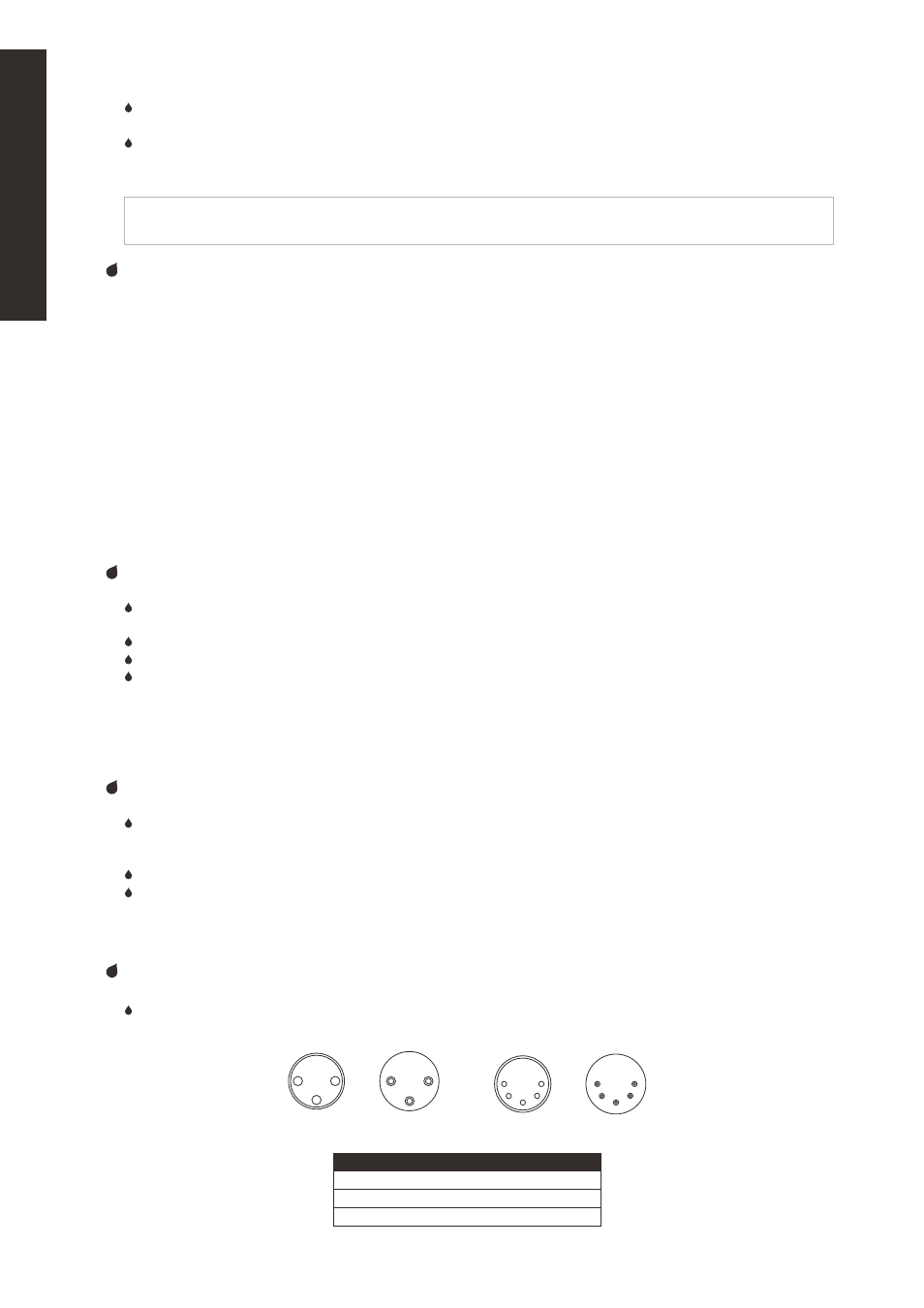

DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate
pin assignment information
02
Pin Function
1
2
3 Ground
Data -
Data +
3 pin XLR 5 pin XLR
2 1
3 5 1
2 4
3 1 5
4 2
3 1 2
3
