Advanced Elements AE1061 - Manual (Page 3)

2 Set Up and Inflation
2.1 Set Up
1. Pull the Stiffy™ SUP out of its bag and un-fold it.
2. Locate the Fin holders on the bottom side of the board at the tail end. You will notice that the center Fin holder
is different from the two side fin holders. The center Fin holder is for the larger Deep Fin.
3. For the side Fins, take each Fin and hook them into place making sure that the longer portion is going towards
the end of the board. You will need to bring the two Fin holders close together in order to get each Fin hooked
into place. See images 1 and 2.
4. For the center Deep Fin, start by sliding the front hook of the Fin into place on the Fin holder and then slide the
Deep Fin into place and seat it the rest of the way into the Fin holder. Once the Deep Fin is in place, secure it
using the supplied holding bolt. If you do not have a screwdriver handy for securing the holding bolt, you can
use a coin. See images 3 and 4.
NOTE: The Deep Fin holding bolt is located in the supplied repair kit.
5. Once the Fins are in place, turn the board over so that the valve at the front of the board is facing up.

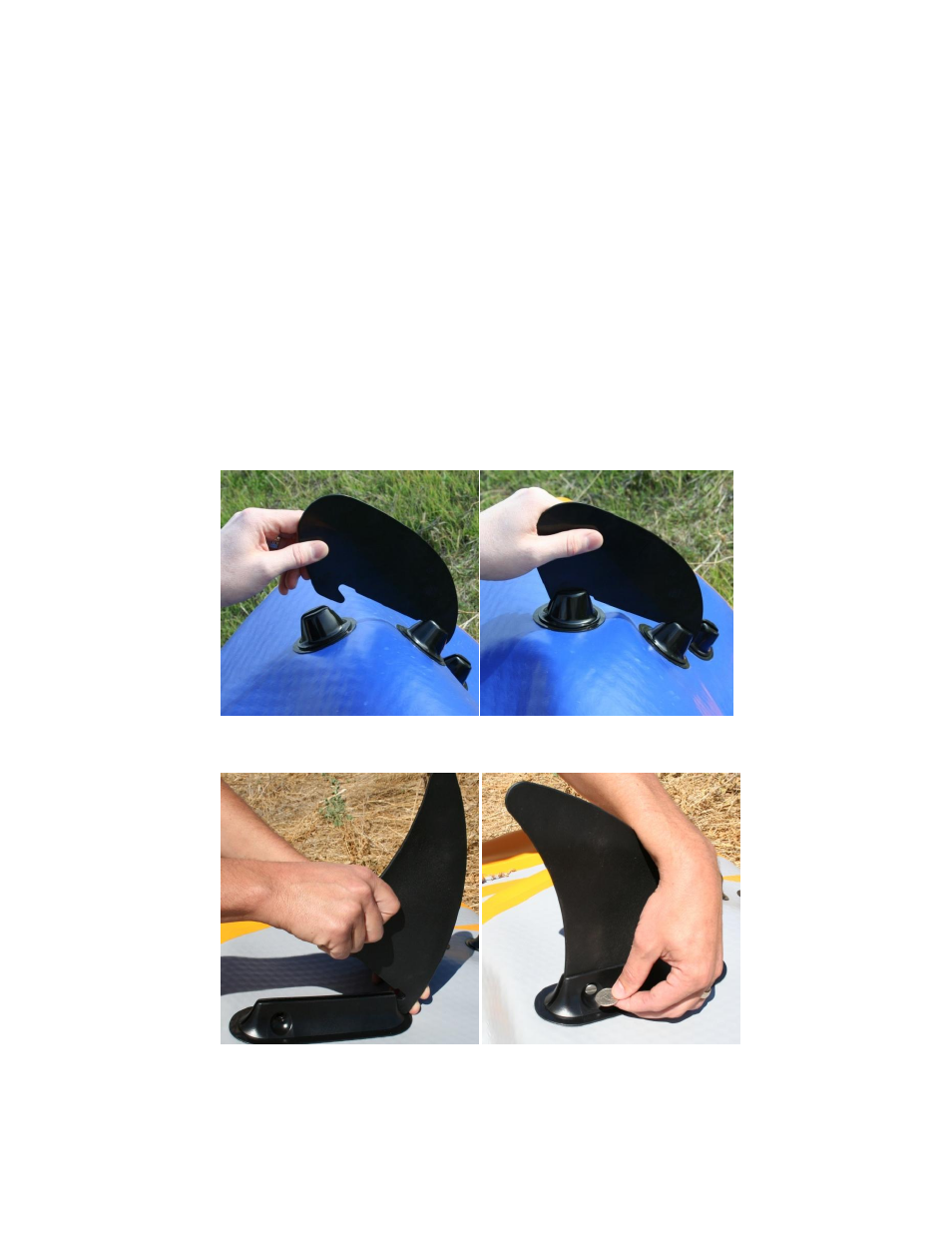

Image 1 Image 2
Image 3 Image 4
