15” Tilt Model

Touchscreen

Display Type:

Touch-sensitive active matrix color LCD

Screen Dimensions:

15"/38.1 cm diagonal

Screen Resolution:

1024x768 pixels

Screen Illumination:

Edgelit fluorescent

Screen Tilt:

Soft-Touch adjustable screen tilt, 30-80 degrees

Enclosure:

Black injection-molded case

Connectors

TPS-6000:

> Headphone: Mini phone jack

> Audio Input/Output: 8-pin RJ45

> RS-232: 6-pin RJ11

> RGBHV: 15-pin high density, supplied by optional

TPS-XVGA card

> Net/Video: 10-pin RJ45

> LAN: 8-pin RJ45

TPS-IMC

Interface Module: Outboard module providing

expanded audio/video/network connections to the
touchpanel system.

> NTSC/PAL VIDEO: BNCx2 or 6-pin Composite, plus Y/C,

made active by optional TPS-VID card

> NET: 4-pin, for connection to devices in the Cresnet system

> NET/VIDEO: 10-pin RJ45, for touchpanel connection,

plus Composite and S-Video input made active by
optional TPS-VID card

> MIC OUT: 3-pin, for line level microphone output

> AUDIO INPUT: 6-pin RJ11

> AUDIO OUTPUT: 8-pin RJ45

Audio

Built-in microphone (AGC or fixed gain mode), balanced line
level input and output, power amplifier (2W per channel),
audio mixer, two stereo speakers and WAV file capability

Memory

8MB internal flash memory, upgradeable to 64MB, and
8MB of DRAM, upgradeable to 32MB, with standard
plug-in memory modules

Expansion Card Options

TPS-ENET

10/100 BaseT Ethernet Card: (RJ45) Ethernet

module provides full/half duplex TCP/IP and UDP/IP
communication via Ethernet/LAN/WAN to any Crestron
IP device. Power: 4W

TPS-VID

Video Module Card: (RJ45) Video input digitizer

allows NTSC or PAL video to be displayed on the touch-
panel. Supports both Composite and S-Video formats, for
full screen or window display. Power: 8W

TPS-XVGA

RGB Graphics Card: (DB15) RGB interface card

allows full screen or window display of computer video up
to 1280x1024. Supports non-interlaced computer sources
at native resolution of 1024x768, and scales signals of
higher and lower resolutions for display. Power: 10W

Power Requirements:

24W, 1A

Dimensions

13" (33.1cm) H x 14.2" (36.1cm) W x 10.6" (26.8cm) D

Weight

9.3 lb (4.2kg)

Additional Options

RF Wireless Module, Docking Station and RF Gateway
for wireless operation

TPS-IMW

Interface Module: Internal wall-mounted unit that

installs into a two-gang electrical box. Same functions as the
TPS-IMC, but with terminal block connections.

Crestron Isys

TPS-6000 Advanced Touchpanel Control System

Crestron Electronics, Inc.

15 Volvo Drive • Rockleigh, NJ 07647

Tel: 800.237.2041 / 201.767.3400 • Fax: 201.767.7576 • www.crestron.com

Specifications subject to change without notice.

Printed in USA Doc. 5893 8/00

NEW YORK

LOS ANGELES

ATLANTA

DALLAS

CHICAGO

TORONTO

MEXICO CITY

BRUSSELS

MUNICH

LONDON

PARIS

HONG KONG

BEIJING

SINGAPORE

TAIWAN

HEADPHONES

AUDIO

RS-232

RGB

24VDC 2.0A

LAN

NET/VIDEO

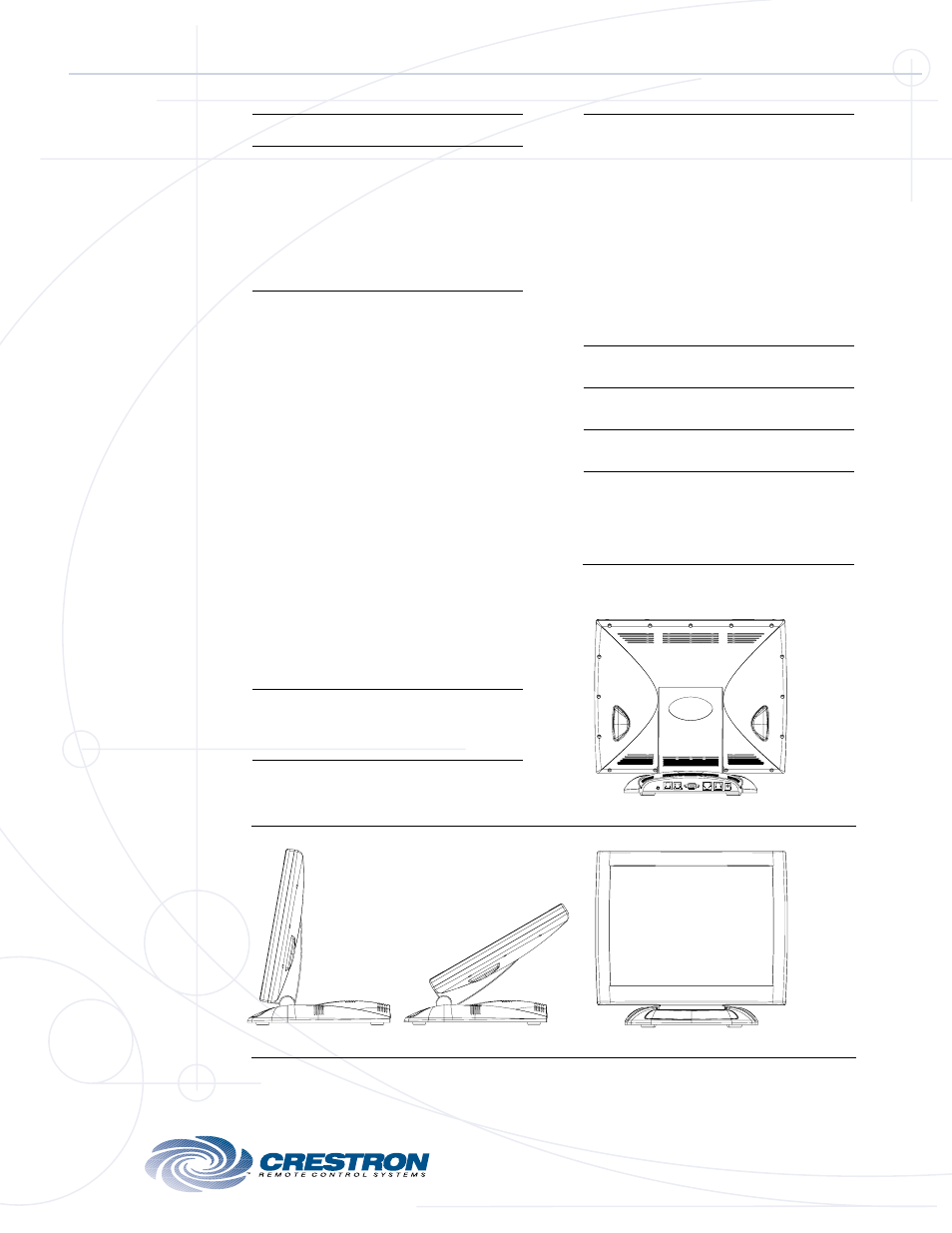

Isys TPS-6000 Rear View

Isys TPS-6000 Side View

Isys TPS-6000 Front View
