AdvancedFrame™ Sport Inflatable Kayak Owner’s Manual

7


3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION

The AdvancedFrame™ Sport Kayak has a rigid frame in the bow and stern that enhances its
performance.

3.1 Assembly

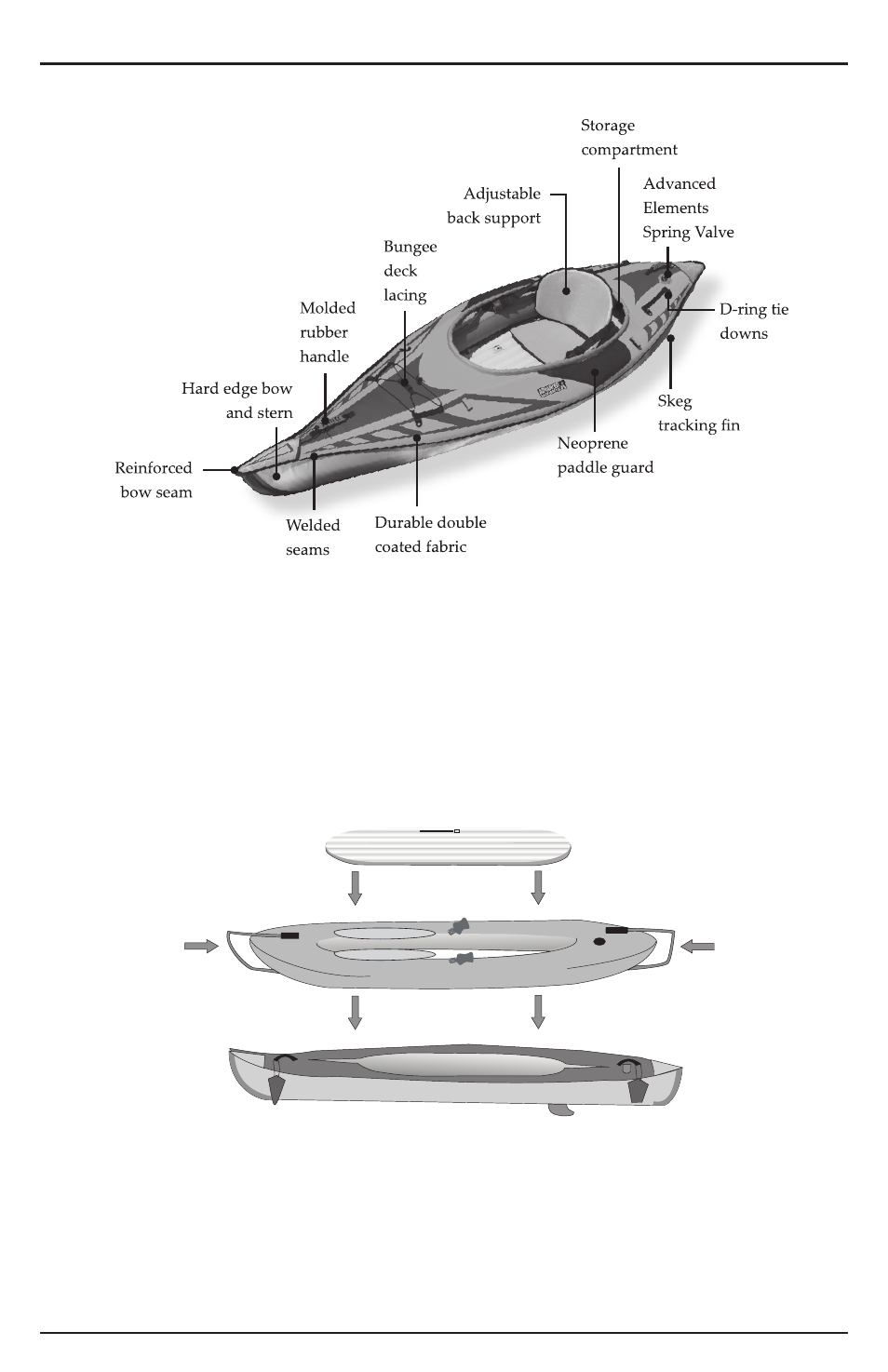

The illustration below shows the general assembly of the kayak. Your kayak comes from the
factory pre-assembled. The only assembly you should need to do is attach the adjustable seat.

1. Your AdvancedFrame™ Sport kayak comes from the factory pre-assembled however should
you take it apart you will need to insert the aluminum Bow rib and the Stern Rib into the
webbing slots on the cover of the AdvancedFrame™ Sport tube (while deflated).
2. Place the AdvancedFrame™ Sport (with ribs installed), into the outer skin making sure the
ribs are placed all the way into each end of the kayak. Make sure that the air valve is

INFLATABLE FLOOR

ADVANCEDFRAME

OUTER COVER

BOW RIB

STERN RIB

Step 1

Step 2

Step 3

Step 1
