Your Supplemental Restraint System
(SRS) includes:
Automatic seat belt tensioners
(see page
).
Two front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’s airbag is stored in the
dashboard. Both are marked ‘‘SRS
AIRBAG.’’
Sensors that can detect a
moderate to severe frontal
collision.
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, and driver and
passenger seat belt use when the
ignition is ON (II).
SRS Components
Additional Information About Your Airbags
Driver and Passenger Saf ety
50
(5)
(8)
(3)
(7)
(4)
(4)
(6)
(5)
(7)
(2)
(9)
(9)
(10)
(8)
(1)

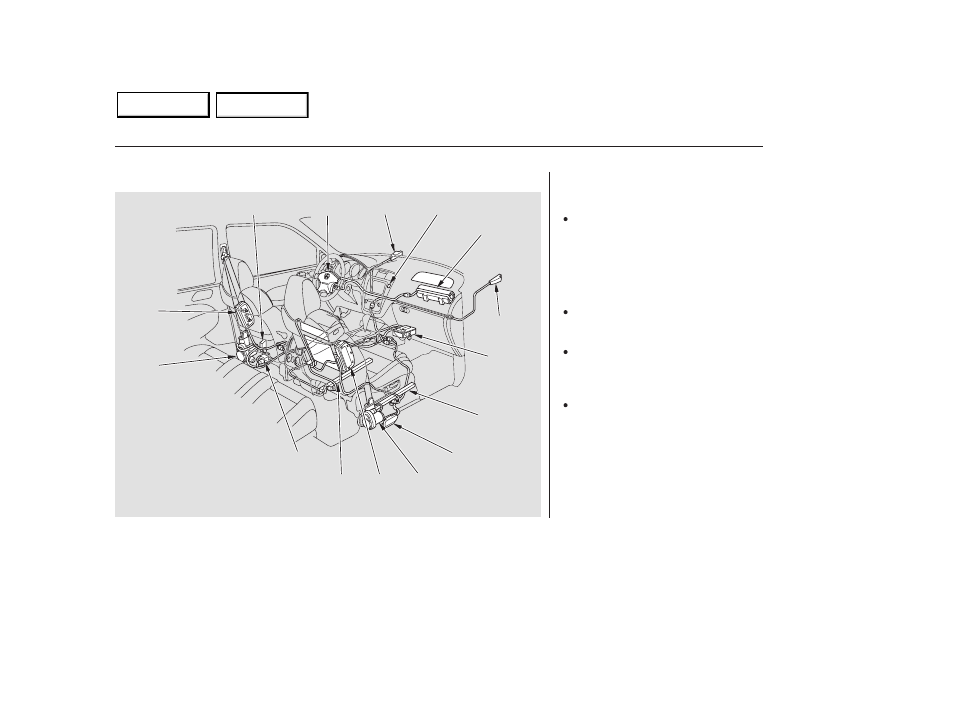

(1) Driver’s Airbag
(2) Front Passenger’s Airbag
(3) Control Unit
(4) Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Sensor
(9) Side Impact Sensors
(10) Passenger Airbag Cutoff Indicator
