uu Gauges and Multi-Information Display u Multi-Information Display
Displays engine and IMA motor power flow – whether the system is assisting the
engine or charging the battery.
■ IMA Battery Charge Level Indicator/Power Flow Monitor 1 IMA Battery Charge Level Indicator/Power Flow Monitor
The IMA battery charge level may decrease rapidly
under the following conditions:
• When the 12 volt battery has been replaced.
• When the IMA battery has been disconnected.
• When the IMA battery control system corrects its
reading.
The charge level reading will be corrected
automatically while driving.
If the IMA battery becomes too hot or too cold, the
battery stops outputting to protect itself from
damages. This disables the hybrid system assist and
Auto Idle Stop, even though the battery is well-
charged.
It takes a short time to normalize the IMA battery’s
output power depending on the weather.

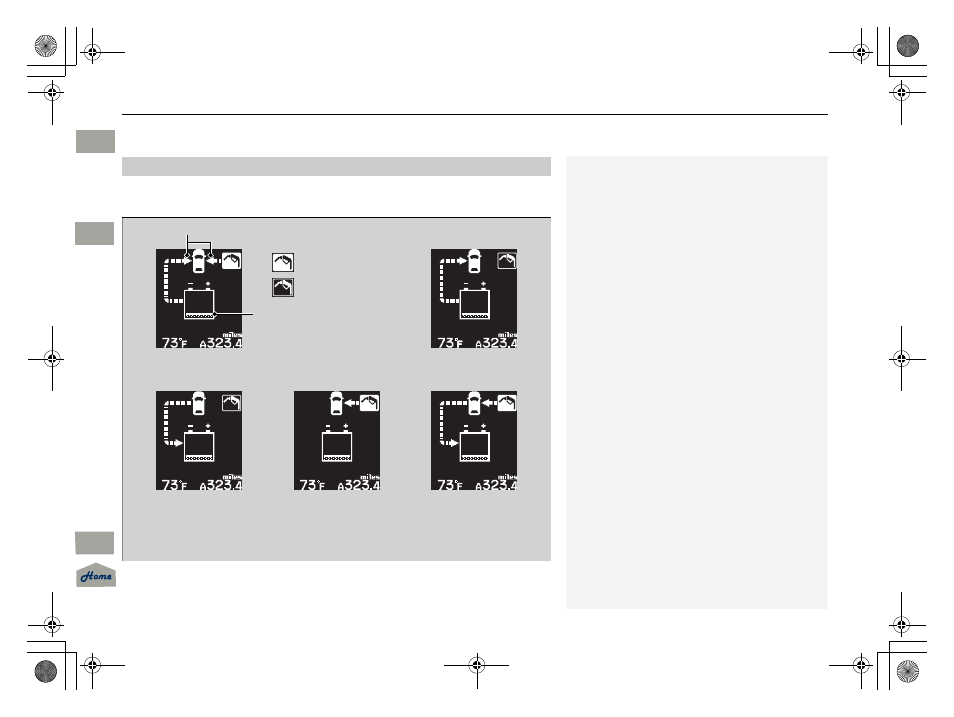

Engine Operation Icon
IMA Battery Icon
Shows Charge Level
Power is supplied by
only the IMA motor. Power is supplied by the
engine and the IMA motor is
assisting the engine.
The IMA motor is
charging the IMA
battery. Power is only supplied
by the engine. Power is only supplied
by the engine and the
IMA motor is charging
the IMA battery.
Power Flow
Operating
Not operating
