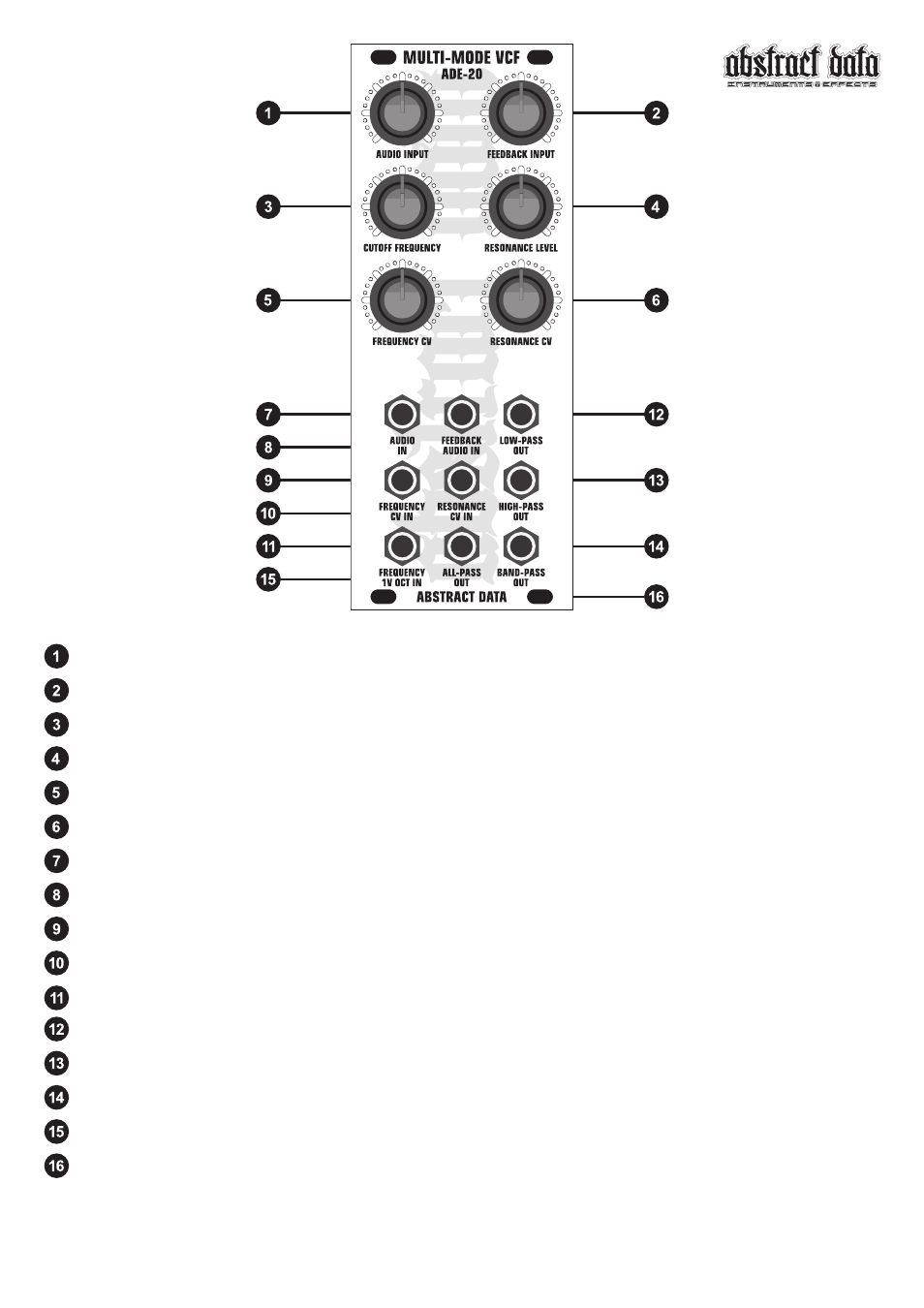

AUDIO INPUT:

Pre-effect gain/attenuation up to +/- 50% at AUDIO INPUT

FEEDBACK INPUT:

Pre-effect gain/attenuation up to +/- 50% at FEEDBACK AUDIO INPUT

CUTOFF FREQUENCY: Sets the Cutoff/Band-Pass Frequency for all filter types

RESONANCE LEVEL:

Sets the Resonance Level for all filter types - right up to self-oscillation

FREQUENCY CV:

Sets the external CV input level for CUTOFF FREQUENCY from 0% to 100%

RESONANCE CV:

Sets the external CV input level for RESONANCE LEVEL from 0% to 100%

AUDIO IN:

AC-coupled input for main audio. Accepts up to +/-10V AC signals

FEEDBACK AUDIO IN: AC-coupled input for feedback insert. Accepts up to +/-10V AC signals

FREQUENCY CV IN:

DC-coupled CUTOFF FREQUENCY CV input. Accepts up to +/-10V AC/DC signals

RESONANCE CV IN:

DC-coupled RESONANCE CV input. Accepts up to +/-10V AC/DC signals

FREQUENCY 1V OCT IN: DC-coupled CUTOFF FREQUENCY CV input. Scaled to 1 Volt per Octave

LOW-PASS OUT:

AC-coupled Low-Pass filter Output

HIGH-PASS OUT:

AC-coupled High-Pass filter Output

BAND-PASS OUT:

AC-coupled Band-Pass filter Output

ALL-PASS OUT:

AC-coupled All-Pass filter Output

MOUNTING HOLES:

Accepts M2.5 or M3 screws in Doepfer or Analogue Systems spacing width

http://www.abstractdata.biz

Version 1.1 December 2012
