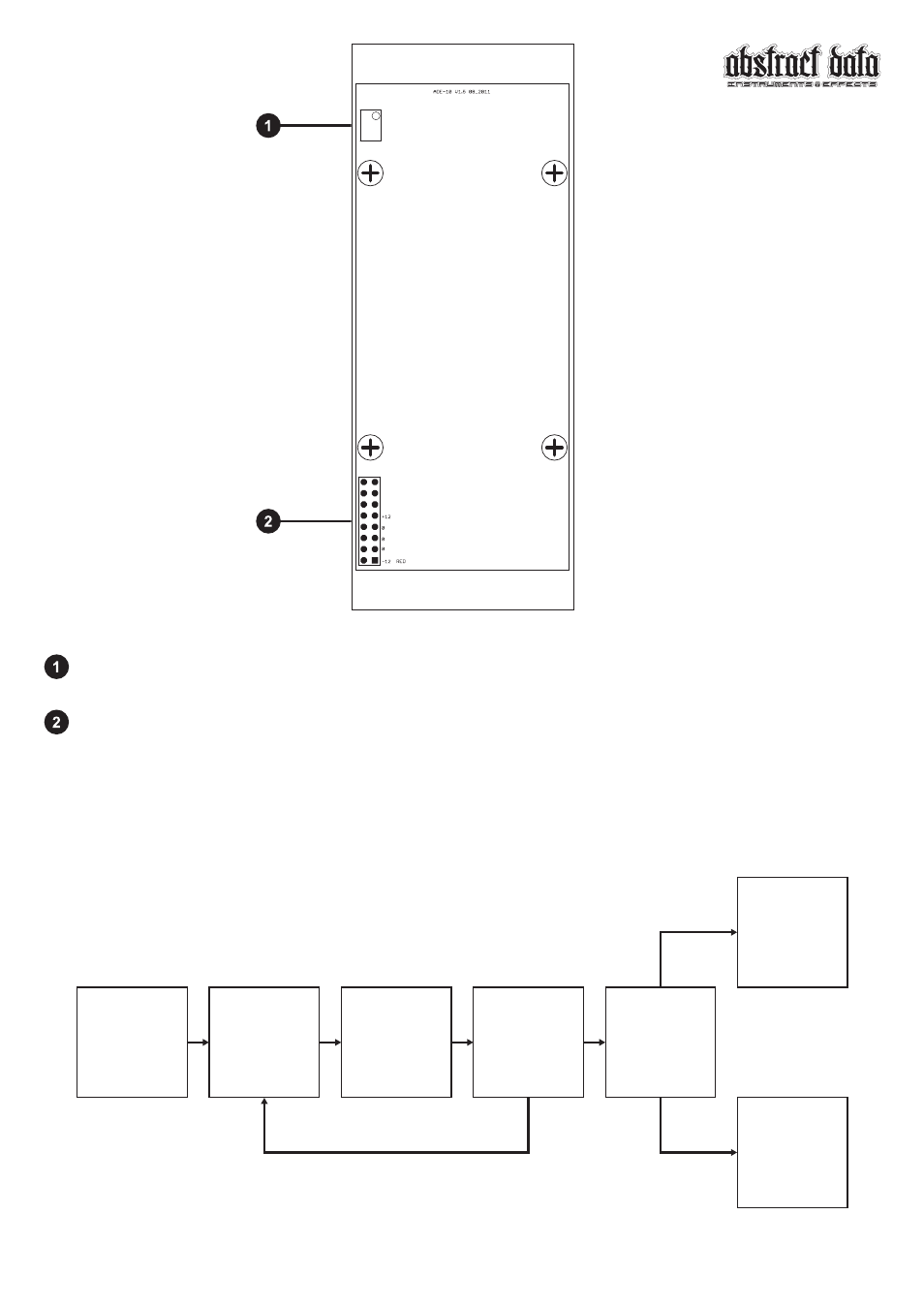

CALIBRATION POINT:

Removes DC offset at both outputs. Factory calibrated to 0V DC (Please see

‘CALIBRATION’ on page 7 of this guide)

POWER CONNECTOR: Doepfer-style 16-pin IDC Socket. The ADE-10 uses the Doepfer standard for

power connection and cable orientation. The RED stripe on the supplied

power cable connects to the NEGATIVE (-12V) rail on the ADE-10 with the

RED stripe facing DOWN. This is marked on the back of the ADE-10 PCB as

“-12 RED”.

(Please see ‘PRECAUTIONS’ on page 7 of this guide)

http://www.abstractdata.biz

Version 1.0 October 2011

2: Rear

3: Signal Flow

STAGE 1

SHAPING

STAGE 2

FOLDING

STAGE 3

FEEDBACK

OUTPUT

GAIN/ATTEN

FULL-WAVE

OUTPUT

HALF-WAVE

OUTPUT

INPUT

GAIN/ATTEN
