AAF International DynaPure - Manual (Page 8)

DynaPure Item 10 Item 11 Item 20
Size Retaining Screen Secondary E-Z Kleen
for Secondary Filter Filter Media Filter
A-1 268-1002476-1 268-1002468-1
AS-100 268-1002476-2 268-1002468-2
AS-200 268-1002476-2 268-1002468-2
AS-300 268-1002476-2 268-1002468-2
AS-400 268-1002476-8 268-1002468-8 268-157677-1
AS-600 268-1002476-8 268-1002468-8 268-157677-1
AS-800 268-1002476-9 268-1002468-9 268-157677-2
AS-1000 268-1002476-9 268-1002468-9 268-157677-2
DynaPure
®

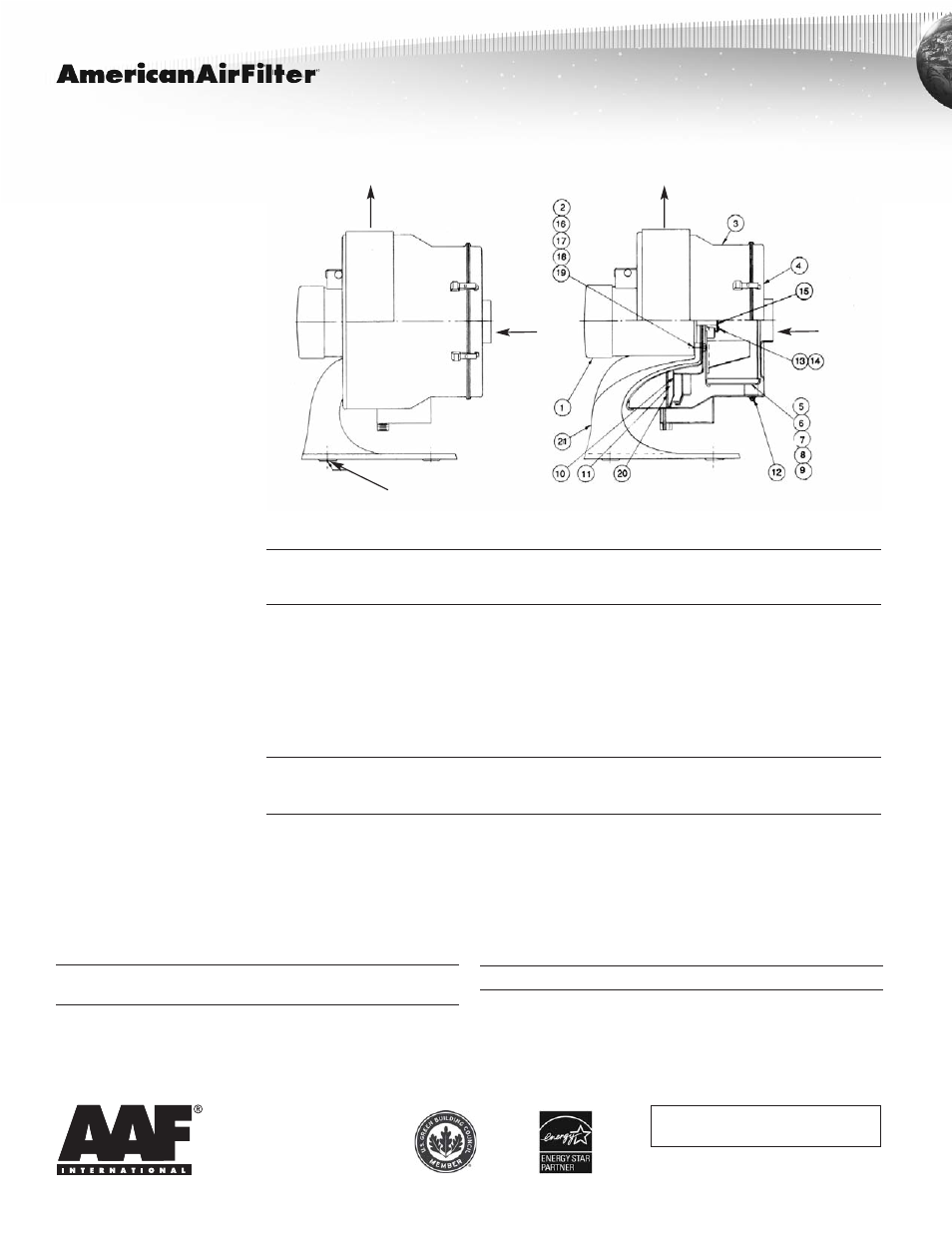

Figure 8. Sizes AS-400, AS-600, AS-800, and AS-1000
1. Motor
2. Gasket
(motor)
3. Casing
4. Cover
5. Filter drum assembly
6. Filter drum
7. Primary filter
8. Throwaway filter liner
9. Snap-in mounting button
10. Retainer screen
11. Secondary filter media
12. Gasket (‘O’ Ring)
13. Bushing
14. Key retainer
15. Shaft key
3 ⁄
1 6
x 3 ⁄
4
16. Hex head screw 3 ⁄
8
- 16 x 1 1 ⁄
4
17. Plain washer 3 ⁄
8
18. Grommet
19. Sleeve
20. Secondary filter (E-Z Kleen)
21. Pedestal
Note: Item 5—Filter drum
assembly consists of items
6, 7, 8, and 9 which can be
ordered individually.
DynaPure Item 1 Item 5 Item 7 Item 8
Size Std. Motor Filter Drum Primary Filter Throwaway
Assembly Filter Liner
A-1 268-1544832-1 268-1544840-1 268-143834-1 268-145367-1
AS-100 268-1544832-1 268-1544840-8 268-143834-2 268-145367-2
AS-200 268-1544832-1 268-1544840-2 268-143834-2 268-145367-2
AS-300 268-1544832-7 268-1544840-4 268-143834-2 268-145367-2
AS-400 268-1544832-7 268-1544840-9 268-143834-4 268-145367-4
AS-600 268-1544832-7 268-1544840-5 268-143834-4 268-145367-4
AS-800 268-1544832-11 268-1544840-6 268-143834-5 268-145367-5
AS-1000 268-1544832-11 268-1544840-7 268-143834-5 268-145367-5
DynaPure Optional Prefilter
Size Media Pad
AS-100, AS-200, AS-300 268-1545003-1
AS-400, AS-600 268-1545003-2
AS-800, AS-1000 268-1545003-3
Optional Final Filter Cartridge
80-85% 90-95% HEPA
Efficiency Efficiency 99.97% DOP
105-899765-149 105-1121946-149 105-1564848-1
Nominal Size Nominal Size Nominal Size
12 x 24 x 6 12 x 24 x 6 12 x 24 x 6
Outlet Outlet
Inlet Inlet
9 ⁄
1 6
" Diameter 4 Holes
10" x 10" Spacing
