FAH-202-2P-MD

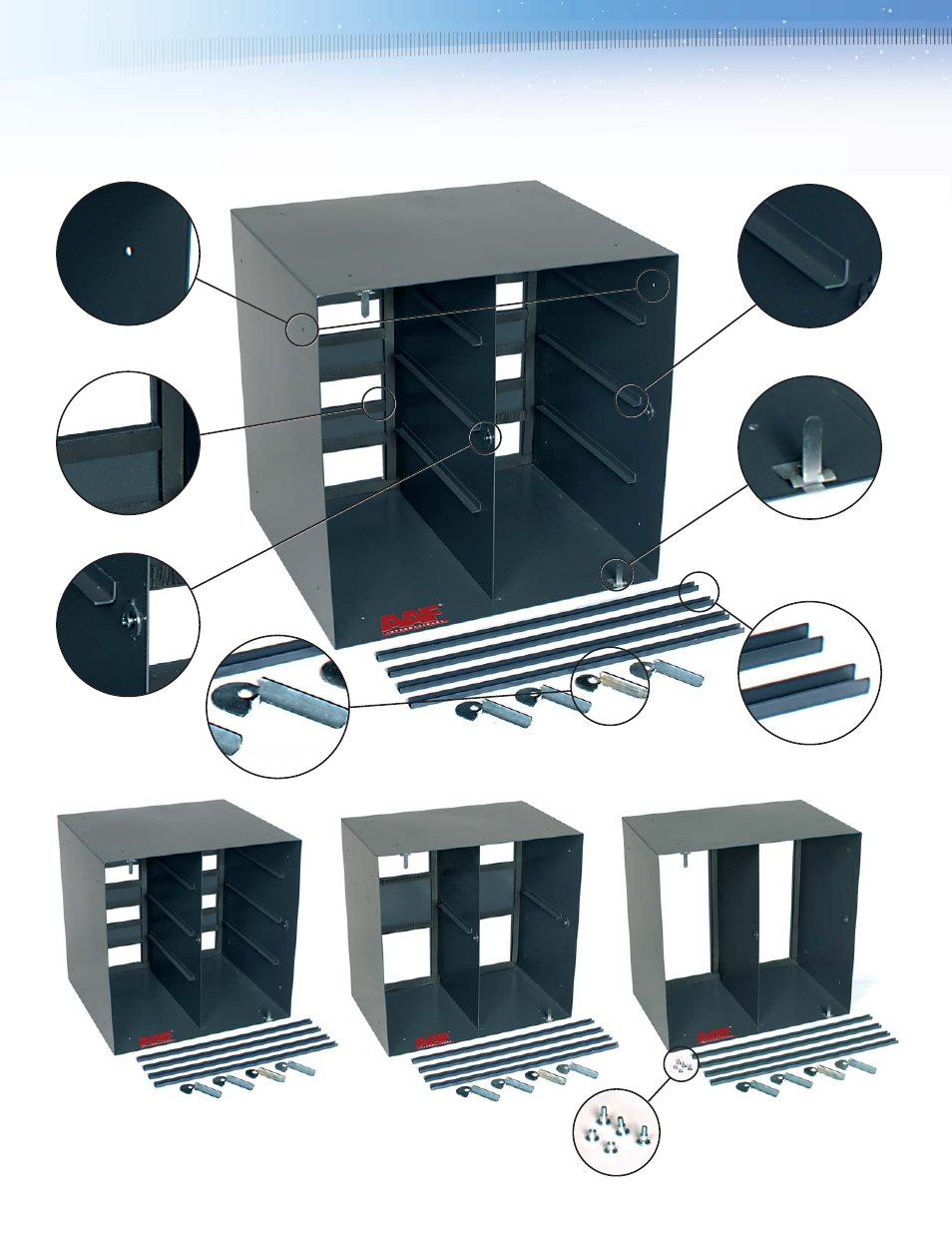

Entering air face of the housings is shown.
Locking handle support tab ships loose
with the Type CG housing.
FAH-202-2P-HD FAH-202-2P-CG
Cassette support angle
Pre-filter latch
in closed position
Cassette sealing and
locking channel Filter sealing locking handle
Filter face sealing gasket
Locking handle support tab
Rivet hole, 4 each side and
top and bottom
The entering air face of an FAH-202-2P-MD housing is shown.
3.3 Typical FAH Details
