Installation Instructions
for Door Handle Mount
H20/H21, H60/H61 FM Series
Product
Part Quantity Number Size
Door Handle (1) Varies
Screws (2) 30817-3 #12 x 1-3/4”
Escutcheons (2) 30756 Brass Wood Screw
Caps (2) 4844

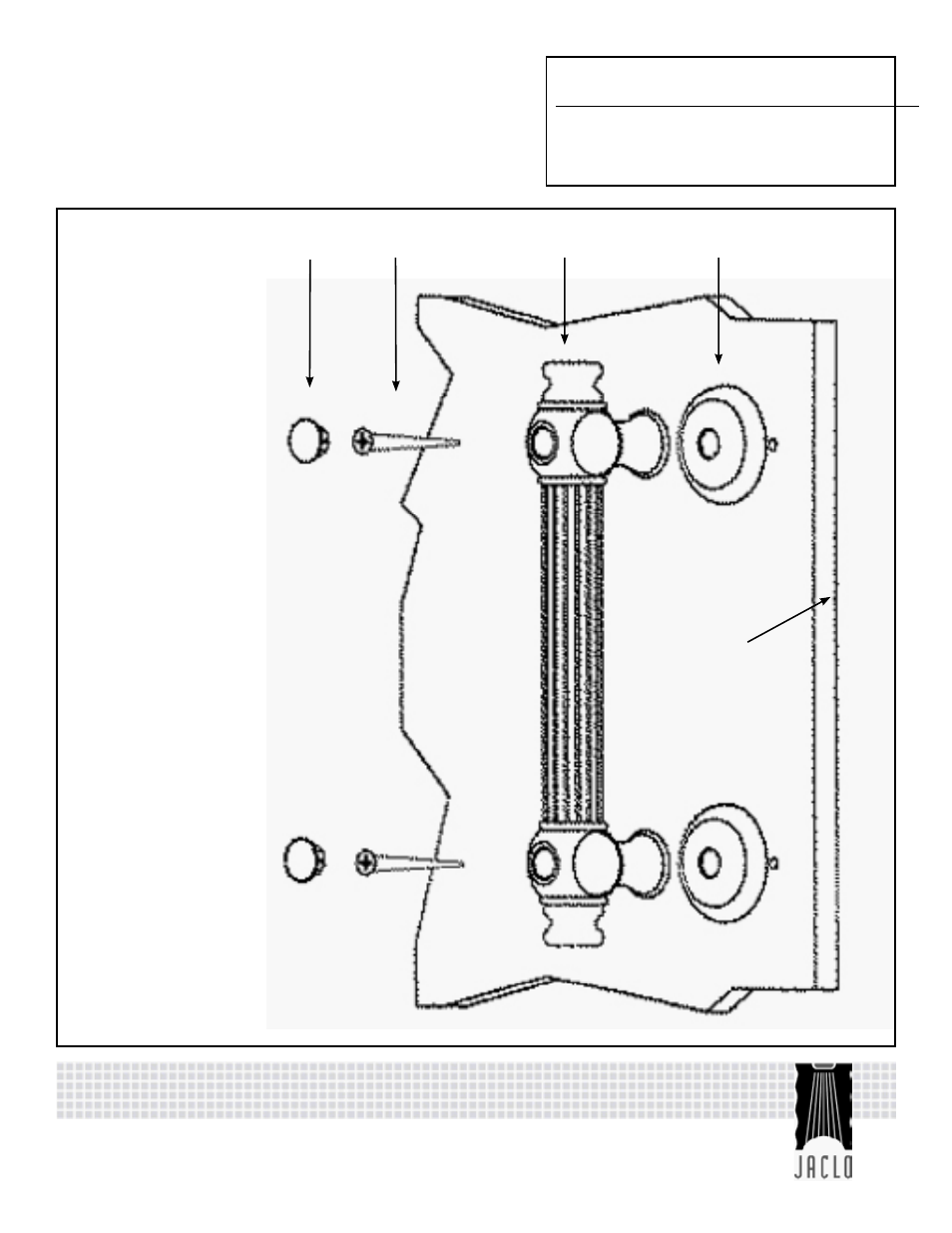

Cut-Away
View of Door
Cap Screw Handle Escutcheon
1. Mark center of holes for mounting
screws (6” centers). Align handle to
door to insure accuracy.
2. Drill two 1/8” diameter holes into
door.
3. Slide 3” screw into the top handle
post, then through escutcheon into
plywood or wood stud.
DO NOT TIGHTEN.
4. Repeat procedure for bottom post.
5. Make sure that the bar is aligned
properly before tightening screws.
6. To finish, snap caps over the two
screw heads.
