Chang Yue Industrial KN-8828P User Manual
Page 7
7

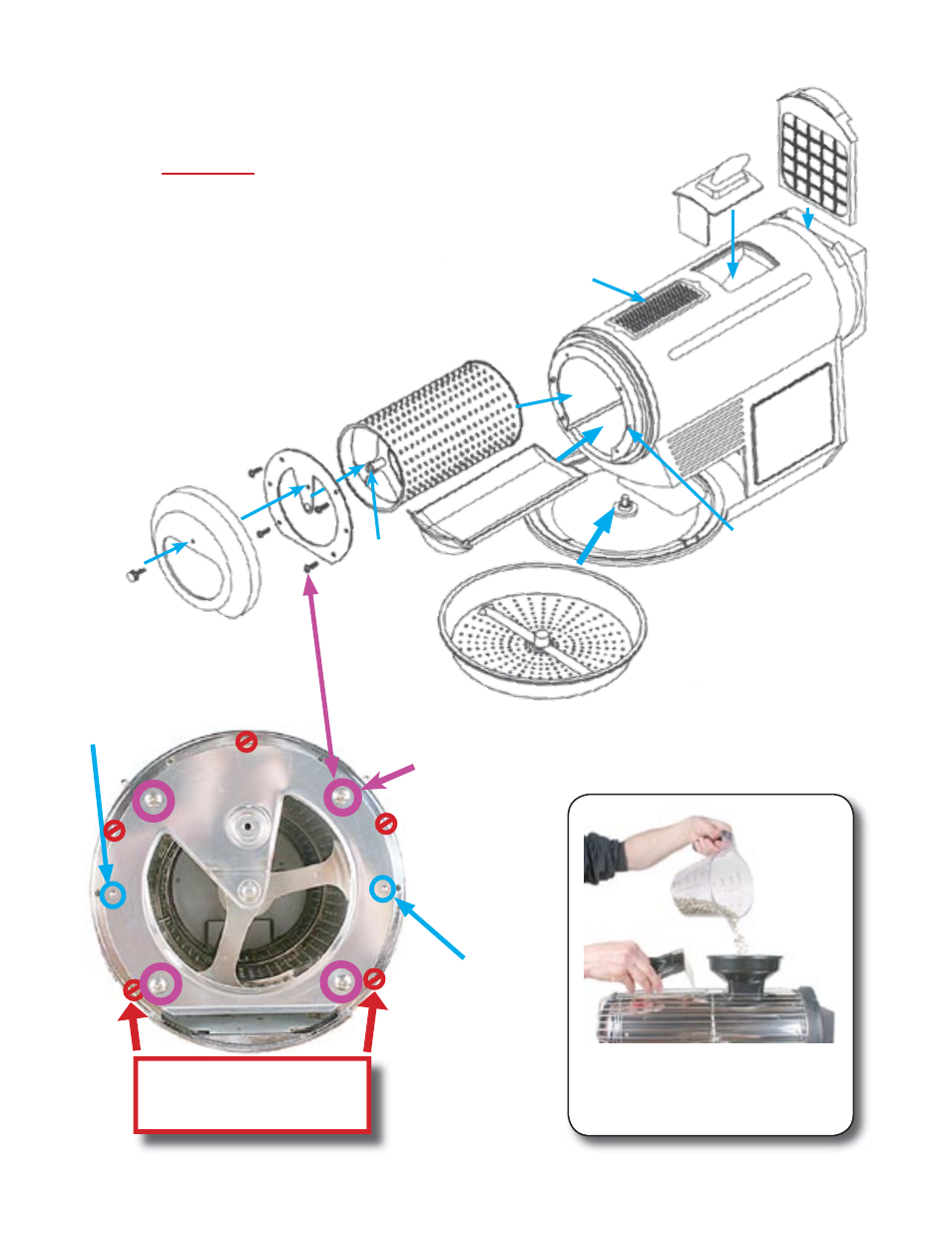

This diagram represents most of the parts that are designed to be removed by
the consumer for basic maintenance with the exception of the Heat-Guard Grills.
(see bottom of previous page for heat-guard grill instructions)
Only remove these four Bearing Plate Screws (
7
)
on the face of the Bearing Plate (
8
)
1
Alignment
Pin (
11
)
2
3
4
5
6
7
8
9
10
11
1 - Rear Filter
2 - Bean Insertion Chute Cover
3 - Cooling Tray
4 - Chaff Tray
5 - Gold Knob
6 - Front Cover
7 - Bearing Plate Screws (4)
8 - Bearing Plate
9 - Roasting Drum
10 - Roasting Chamber
11 - Alignment Pins (2)
12 - Roasting Drum Axle
13 - Top Filter
12
WARNING
:
Do not attempt further disassembly beyond what
is shown here, or as required in Section VII.
Alignment
Pin (
11
)
Do not remove these
fi ve smaller screws!
Use the included funnel to
pour the beans into the Hottop
Coffee Roaster as shown here.
13
