2| Product description

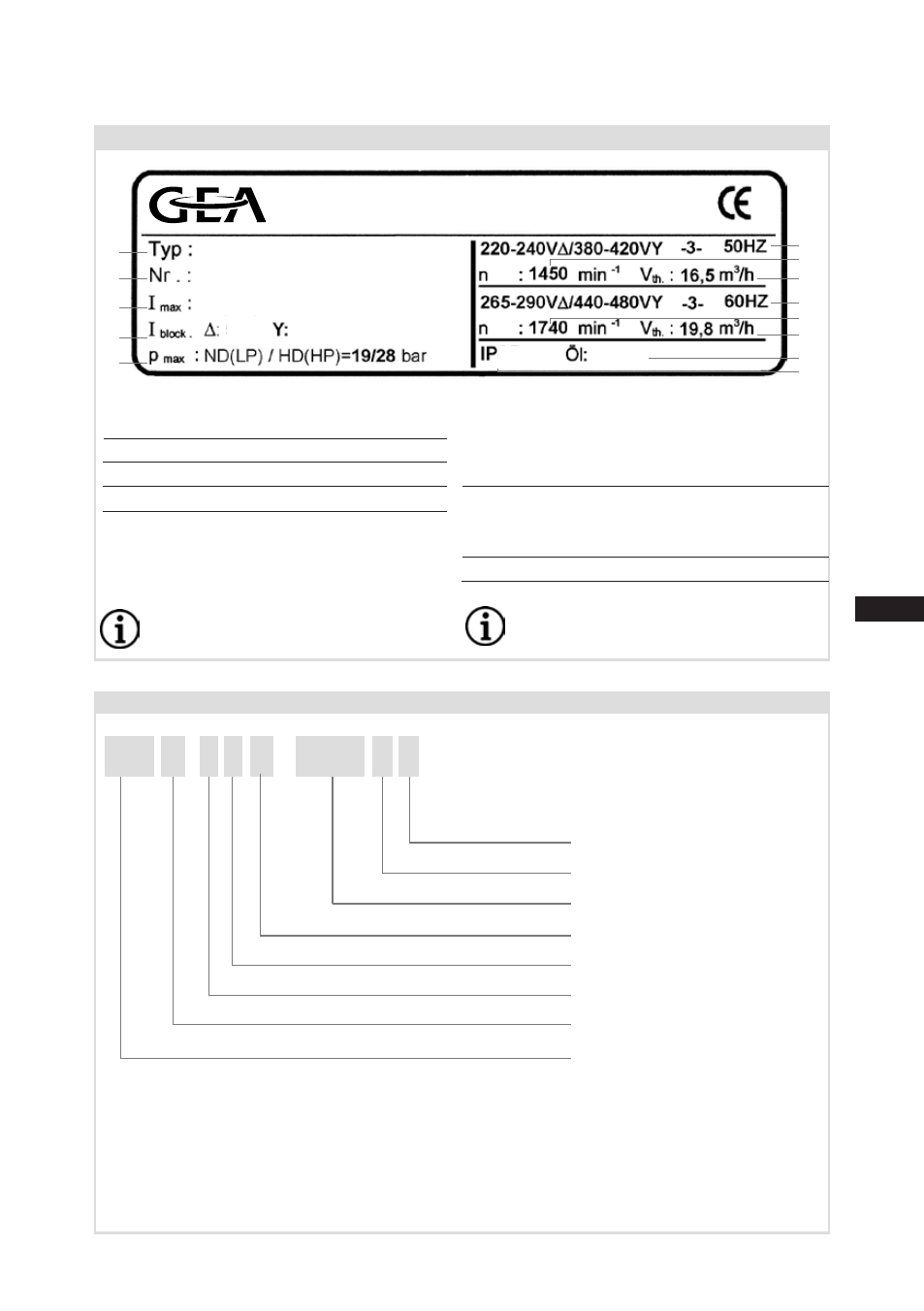

2.2 Name plate (example)
1 Type designation 6 Voltage, circuit, frequency
2 Machine number 7 Nominal rotation speed
3 maximum operating current 8 Displacement
4 Starting current (rotor blocked) 9 Voltage, circuit, frequency
5 ND (LP): max. admissible operating 10 Nominal rotation speed
pressure (g) Low pressure side 11 Displacement
HD (HP): max. admissible operating 12 Oil type filled at the factory
pressure (g) High pressure side 13 Terminal box protection type
Observe the limits of application Electrical accessories can change
diagrams! the IP protection class!
50 Hz
}
60 Hz
}
/ HG 2 2 e 190-4 S X
2.3 Type key (example)
¹ ) HG - Hermetic Gas-cooled (suction gas-cooled) for the normal- / air conditioning applications
² ) X - Ester oil charge (HFC refrigerant, e.g. R134a, R404A/R507, R407C)
³ ) S - More powerful motor, e.g. for air-conditioning applications
Motor variant ³ )
Number of poles
Swept volume
e-series
Numbers of cylinders
Size
Oil charge ²
)
Series ¹ )
Typschild (Beispiel)
1
2
3
4
5
13
12
7
11
6
10
8
9
1 Typbezeichnung
2 Maschinennummer
3 maximaler Betriebsstrom
4 Anlaufstrom (Rotor blockiert)
5 ND (LP): max. zulässiger Stillstandsdruck
Saugseite
HD (HP): max. zulässiger Betriebsdruck
Hochdruckseite
Einsatzgrenzendiagramme beachten!
50 Hz
60 Hz
6 Spannung, Schaltung, Frequenz
7 Nenndrehzahl
8 Hubvolumen
9 Spannung, Schaltung, Frequenz
10 Nenndrehzahl
11 Hubvolumen
12 Werkseitig eingefüllte Ölsorte
13 Schutzart Klemmenkasten
HGX22e/190-4
SE 55
AS35830A001
13,8/8,0A
69A 40A
66
GEA Bock GmbH
72636 Frickenhausen, Germany
Fig. 3
