Delptronics ThunderBell User Manual
Page 2
ThunderBell Mini Kit Instructions
Page 2 of 10
Board-mounted Parts
All of the board-mounted parts are supplied in a little plastic bag to keep them together.

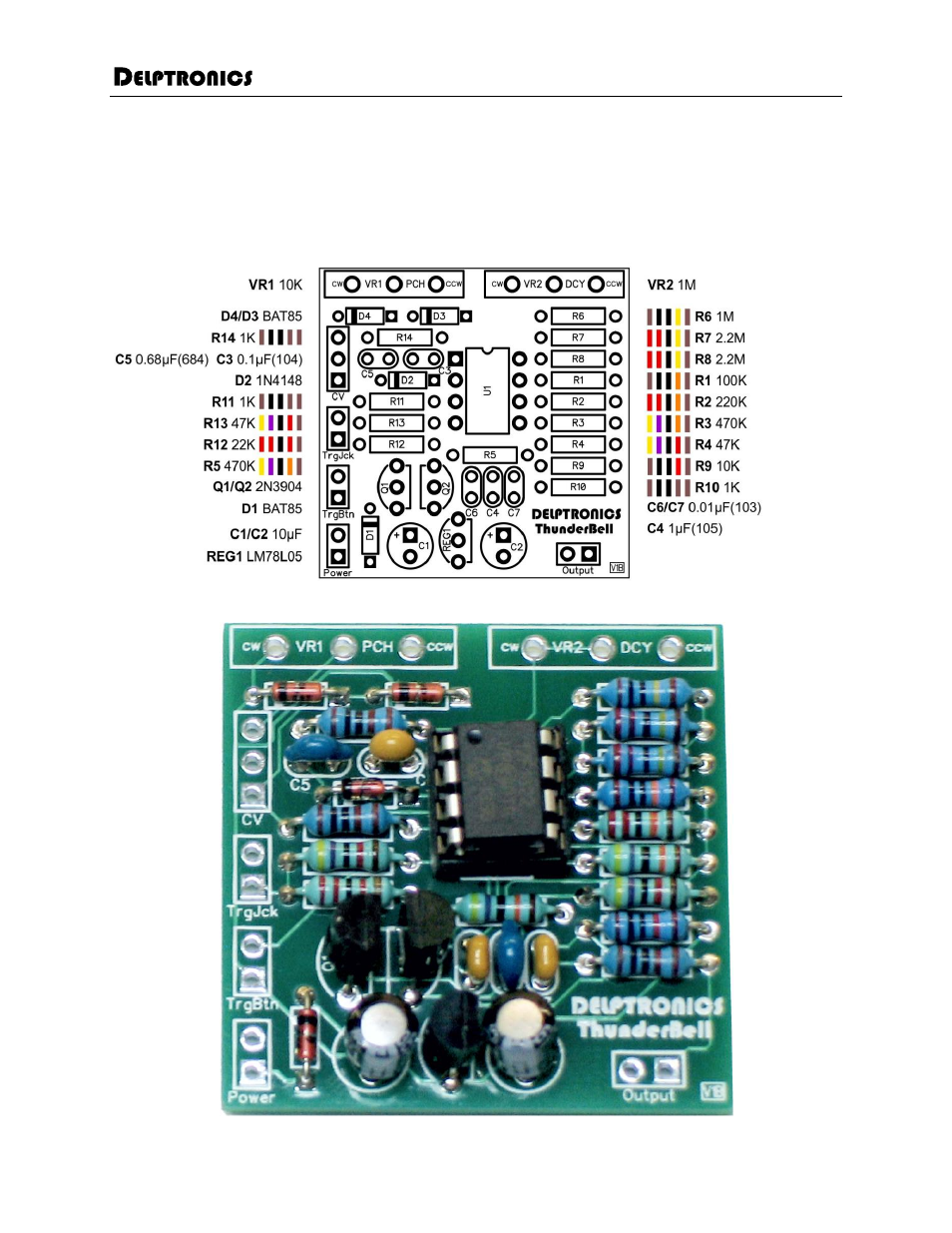

Refer to the diagram and photo below when assembling the printed circuit board. The numbers along the bottom and
sides of the diagram are the part values. Experienced kit builders may find that this page is all they need to assemble
the board-mounted parts.
