Terminology
Sequences and Patterns
A sequence is a set of 8 steps. Each output jack has its own sequence. You can think of it as an 8X8 grid,
with steps in the X axis and the outputs in the Y axis – just like the step and output LEDs on the panel.
A pattern is a set of 8 sequences. There are 8 pattern memories.
Controls, Jacks, and LEDs

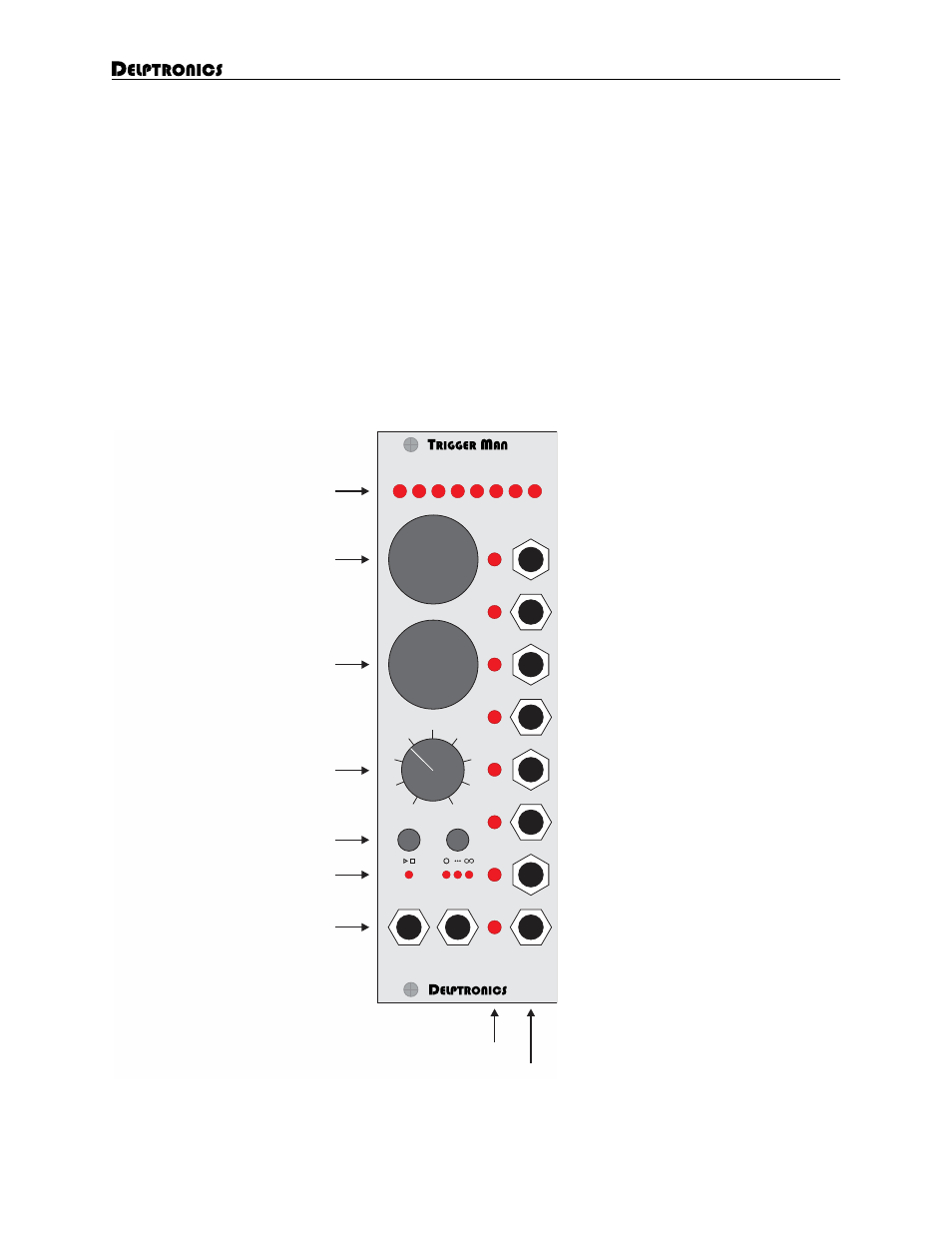

This manual refers to the controls, jacks and LEDs by the names shown below.
Clock
Control
1
2
3
4
5
6
7
8
40
ч1
70
ч2
105
ч3
170 ч6
200
ч8
230
ч12
295
ч32
135
ч4
265
ч16
Output
Tempo
Step LEDs
Knob 1
Knob 2
Output LEDs
Output Jacks
Tempo/Divider Knob
Start/Stop and Mode Buttons
Clock and Mode LEDs
Clock and Control Jacks
