37

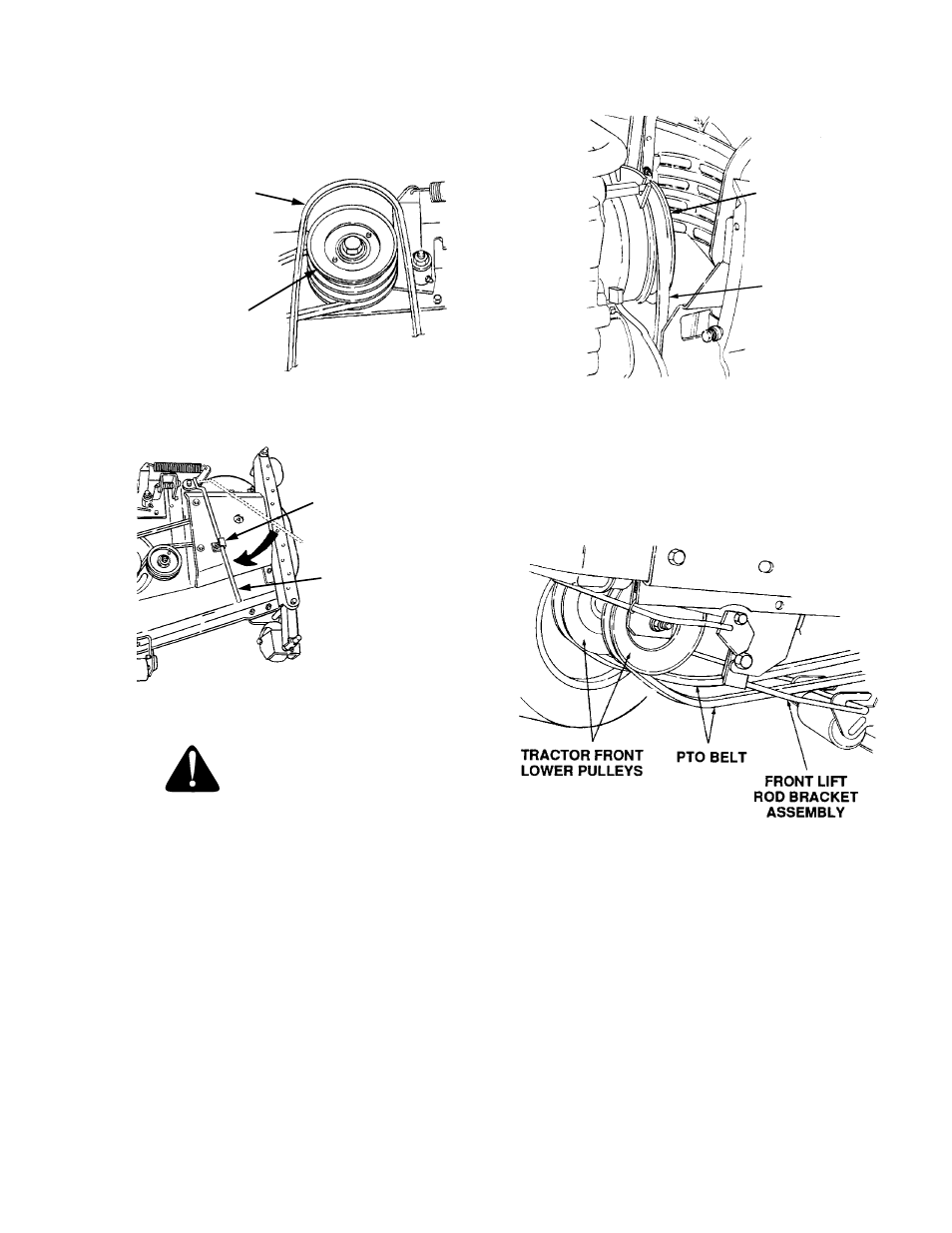

4. Remove the rearward end of the PTO belt from the
upper pulley of the deck center double-pulley
(Refer to Figure 42). Engage the deck idler arm
lever back into its stop bracket (See Figure 43).
Figure 42
Figure 43
WARNING
If the engine has been recently operated, the
exhaust system, engine, and surrounding areas
will be hot. To avoid personal injury, allow these
areas to cool before proceeding with the
following PTO belt removal instructions.
5. Open the tractor hood and remove the forward end
of the PTO belt from the PTO clutch pulley on the
front of the engine (Refer to Figure 44).
Figure 44
6. Pass the PTO belt downward, inside the tractor
frame, until the belt is below the two tractor front
lower pulleys and pull the belt clear of the tractor
(See Figure 45).
Figure 45
7. Pull the deck support pins outward, turn
downward and release so both spring-loaded
pins are held in the disengaged position against
the outer surface of the deck brackets (Refer to
Figure 46).
MOWER DECK
CENTER DOUBLE
PULLEY
PTO BELT
FRONT OF DECK
IDLER ARM
LEVER
STOP BRACKET
PTO
CLUTCH
PULLEY
PTO
BELT
PTO
CLUTCH
PULLEY
PTO
BELT
