30

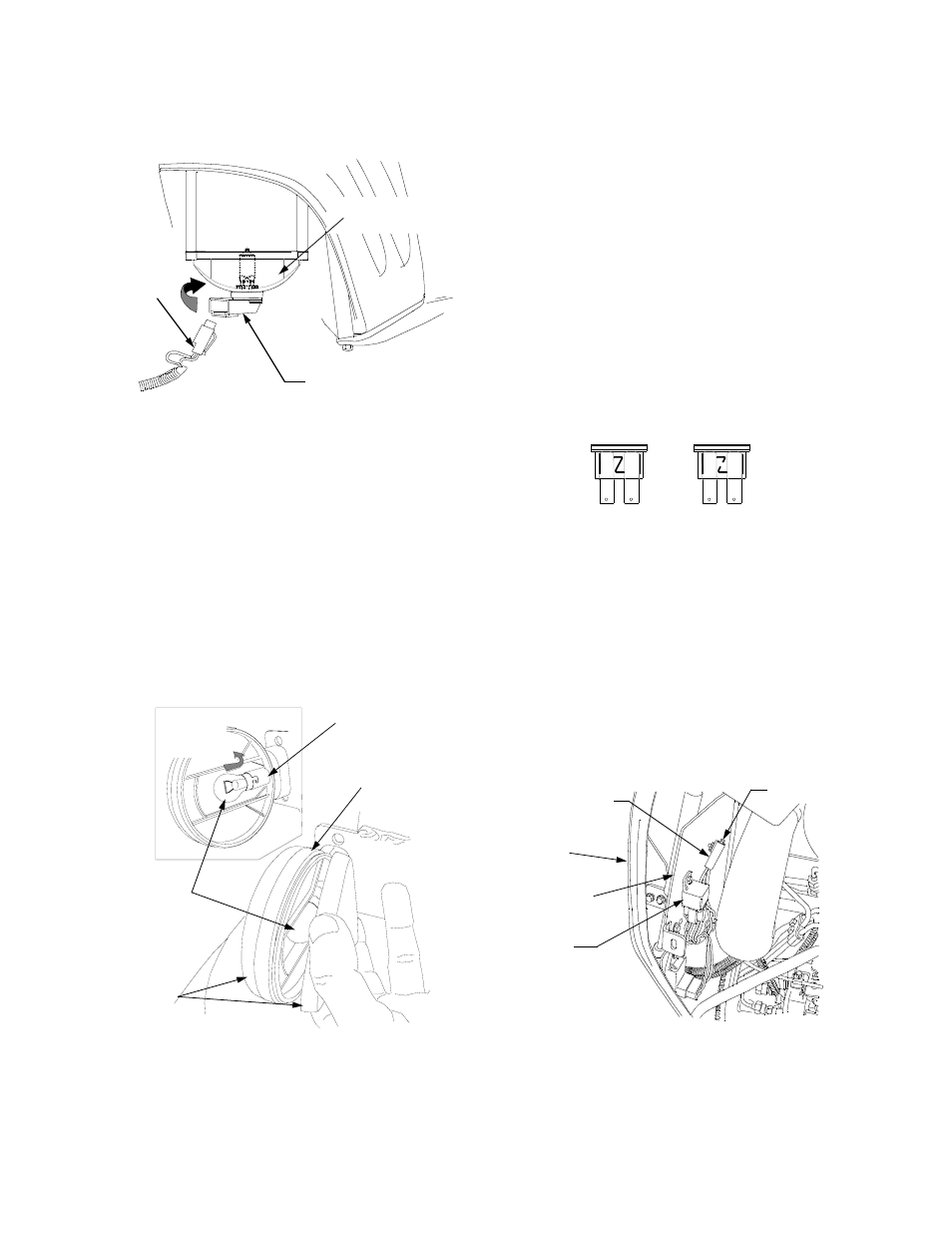

• Turn the bulb/socket assembly approximately a
quarter turn counterclockwise to align its tabs
with the notches of the reflector, then remove
from the reflector.
Figure 35
• Replace with a new bulb/socket assembly (Cub
Cadet No. 725-04084).
• Align the tabs of the new bulb/socket assembly
with the notches of the reflector and insert the
bulb.
• Turn the bulb/socket assembly clockwise to
lock in place. Push the wire harness plug fully
into the bulb socket.
HAZARD BULB REPLACEMENT
Flashing hazard lights are installed on each side of
the ROPS. Referring to Figure 36, replace the bulbs
as follows:
Figure 36
• Insert a thin bladed screwdriver, or similar tool,
between an amber lense and the hazard light
body, then twist to separate the lense from the
body. Refer to Figure 36.
• Push the bulb inward and turn counterclockwise,
then pull the bulb outward to remove from the
light socket.
• Align the new bulb with the socket slot, push
the bulb into the socket, and turn clockwise to
lock it in the socket.
• Position the lense on the hazard light body and
push the lense onto the body until it snaps
firmly into place on the body.
SERVICING ELECTRICAL SYSTEM
Fuses are installed to protect the tractor’s electrical
system from damage caused by excessive amper-
age. Always use the same capacity fuse for
replacement. If the electrical system does not func-
tion, check for blown fuses. See Figure 37
If you have a recurring problem with blown fuses,
have the tractor’s electrical system checked by your
Cub Cadet dealer.
Figure 37
Main Fuse
The main fuse in the tractor wire harness protects
the tractor’s entire electrical system. A blown main
fuse will prevent battery current from passing
though the harness.
To replace the main fuse:
• Raise tractor hood and remove right side panel.
• Locate the fuse holder on the front of the bulk-
head, just inside the right side of the dash panel.
See Figure 38.
Figure 38
• Pull the main fuse from the fuse holder and
replace with the same capacity fuse (30 Amp).
NEVER use a higher amperage fuse.
• Install side panel and lower tractor hood.
BULB/SOCKET
ASSEMBLY
WIRE
HARNESS
PLUG
REFLECTOR
AMBER
BULB
SOCKET
Push in
and Turn
LENSE
BODY
GOOD BAD
DASH
PANEL
MAIN FUSE
FUSE HOLDER
GLOW
PLUG
RELAY
BULKHEAD
