8
• To engage the parking brake, push brake pedal
down firmly, pull out on the parking brake knob,
and release foot from brake pedal. Brake pedal will
stay down and parking brake light on dash will
come on to indicate parking brake is engaged.
• To release parking brake, push down on brake
pedal and parking brake latch will release.

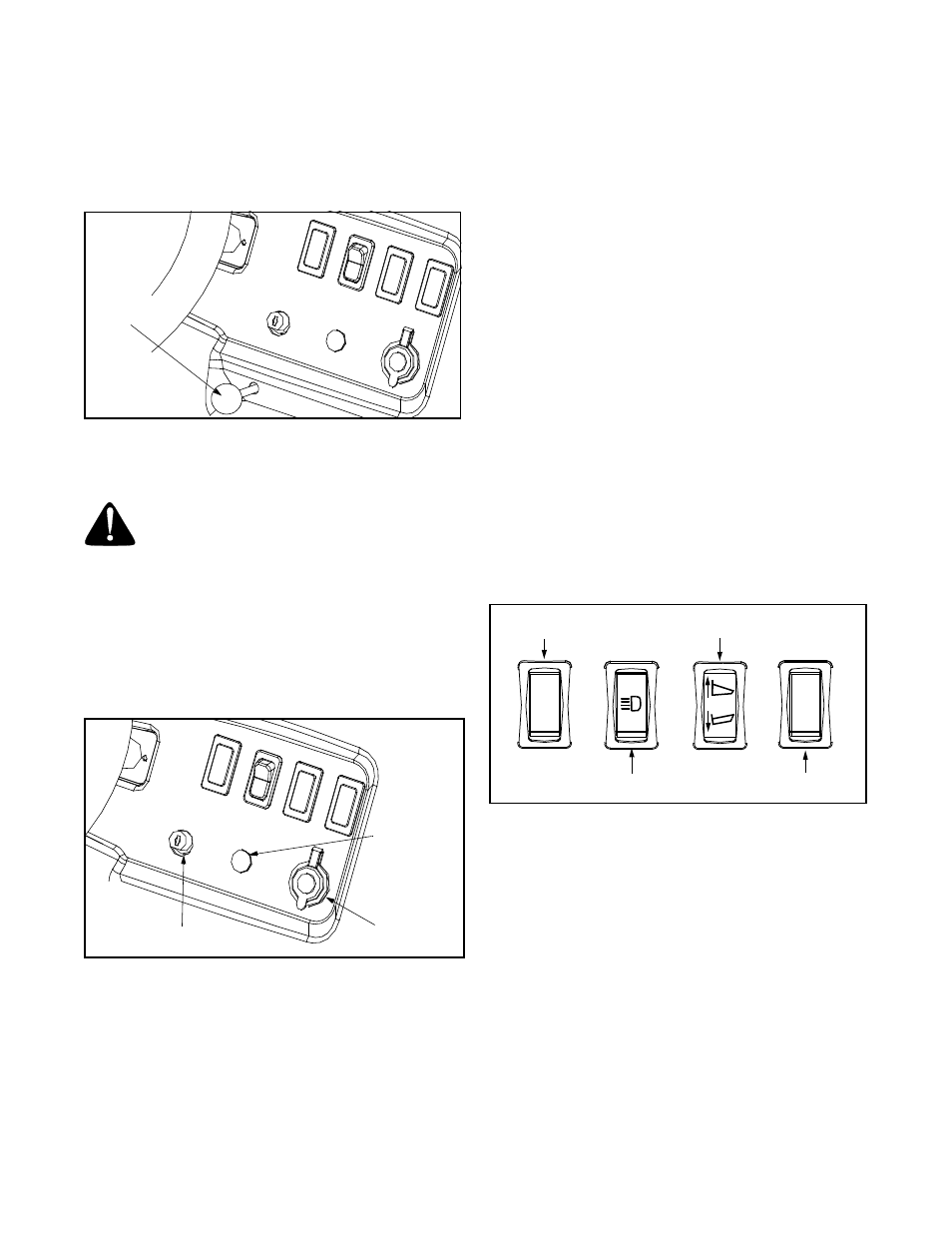

Figure 3
Ignition Switch
WARNING: Never leave a running machine
unattended. Always set parking brake, stop
engine and remove key to prevent unintended
starting.
The ignition switch is located on the right side of the
dash panel. To start the engine, insert the key into the
ignition switch and turn clockwise to the START
position. Release the key into the Run position once
engine has fired. See Figure 4.
NOTE: The gearshift must be in the neutral position to
start engine.
Figure 4
Refer to Starting The Engine in the Operation Section of
this manual for detailed starting instructions
Horn Switch
(Optional)
The horn switch is located on the right side of the dash
panel. Push button to activate horn. See Figure 4.
12V Power Outlet
The 12V power outlet is located on the right side of the
dash panel. It is used for the convenience of plugging in
accessories that require a power source with a
maximum load of 5 amps at 12 volts. See Figure 4.
Accessory Power Switch
(Optional)
If equipped, the accessory power switch is located on
the right side of the dash panel. This switch turns power
on or off for optional accessories. See Figure 5.
Light Switch
The light switch is located on the right side of the dash
panel. Push in top/bottom of switch to activate or turn
off lights. See Figure 5.
Cargo Box Electric Lift Switch
(Optional)
If equipped, the cargo box electric lift switch is located
on the right side of the dash panel. It activates lift to
raise and lower cargo box. See Figure 5.
Rear Power Outlet
(Optional)
If equipped, the rear power outlet is located on the right
side of the dash panel. It turns power on and off for the
rear outlet. See Figure 5.
Figure 5
Warning Light Cluster
The warning light cluster is located in the middle of the
dash panel. There are four warning lights: alternator
discharge light, parking brake light, engine oil pressure
light, and low fuel light. The alternator discharge light
will indicate that the alternator is not charging. The
parking brake light indicates when parking brake is
engaged. The engine oil pressure light activates when
engine has low oil pressure. The low fuel light activates
when fuel is low in tank. See Figure 6.
Parking Brake
Latch
Ignition Switch
Horn Plug
12V Power
Outlet
Light Switch
Accessory Power Cargo Box Electric
Lift Switch
(Optional) Switch (Optional)
Rear Power
Outlet (Optional)
