Installation
FUSE / BREAKER SPECIFICATIONS:
An over-current protection device (circuit breaker or fuse) must be used with this downrigger. Coast Guard re-
quirements dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-
free circuit breaker or fuse.
The following breaker size is a recommended guideline:
1 downrigger—30A @ 12 vdc
2 downriggers—60A @ 12 vdc
For additional information, please consult appropriate ABYC (American Boat and Yacht Council) and Coast Guard
requirements.
Reference:
United States Code of Federal Regulations: 33 CFR 183—Boats and Associated Equipment
ABYC E-11: AC and DC Electrical Systems on Boats
Powering Multiple Downriggers
When operating multiple Magnums, run a maximum of 2 downriggers per dedicated battery.
Typical Operating Time*:
1 Magnum per battery – 24 hours.
2 Magnums per battery – 10 hours.
*Time based on lab results using a 15lb weight and Deep-Cycle batteries. Actual run time will vary.
Red ( + )
Black ( – )

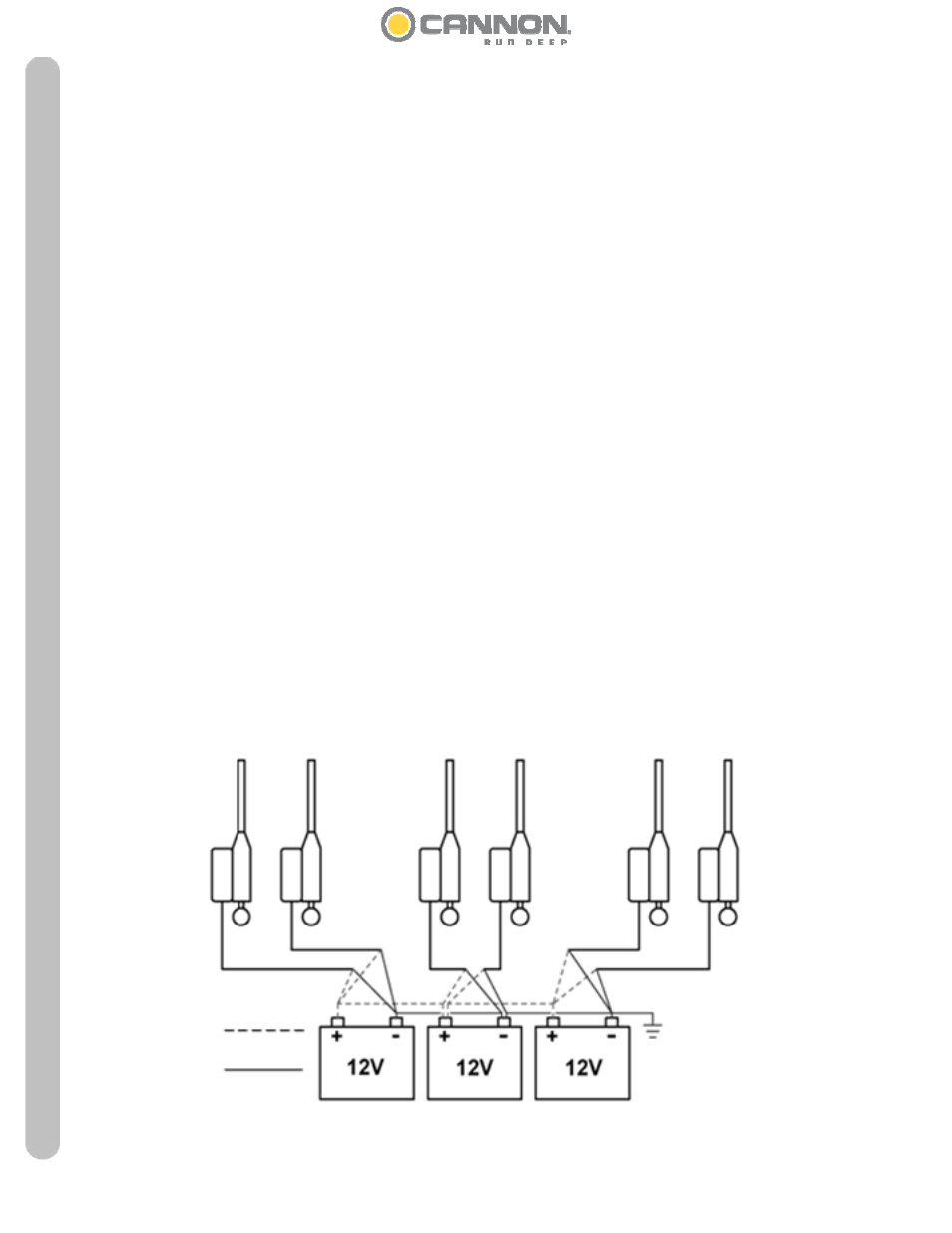

Connect Multiple
Batteries in Parallel
