Product subject to change without notice .

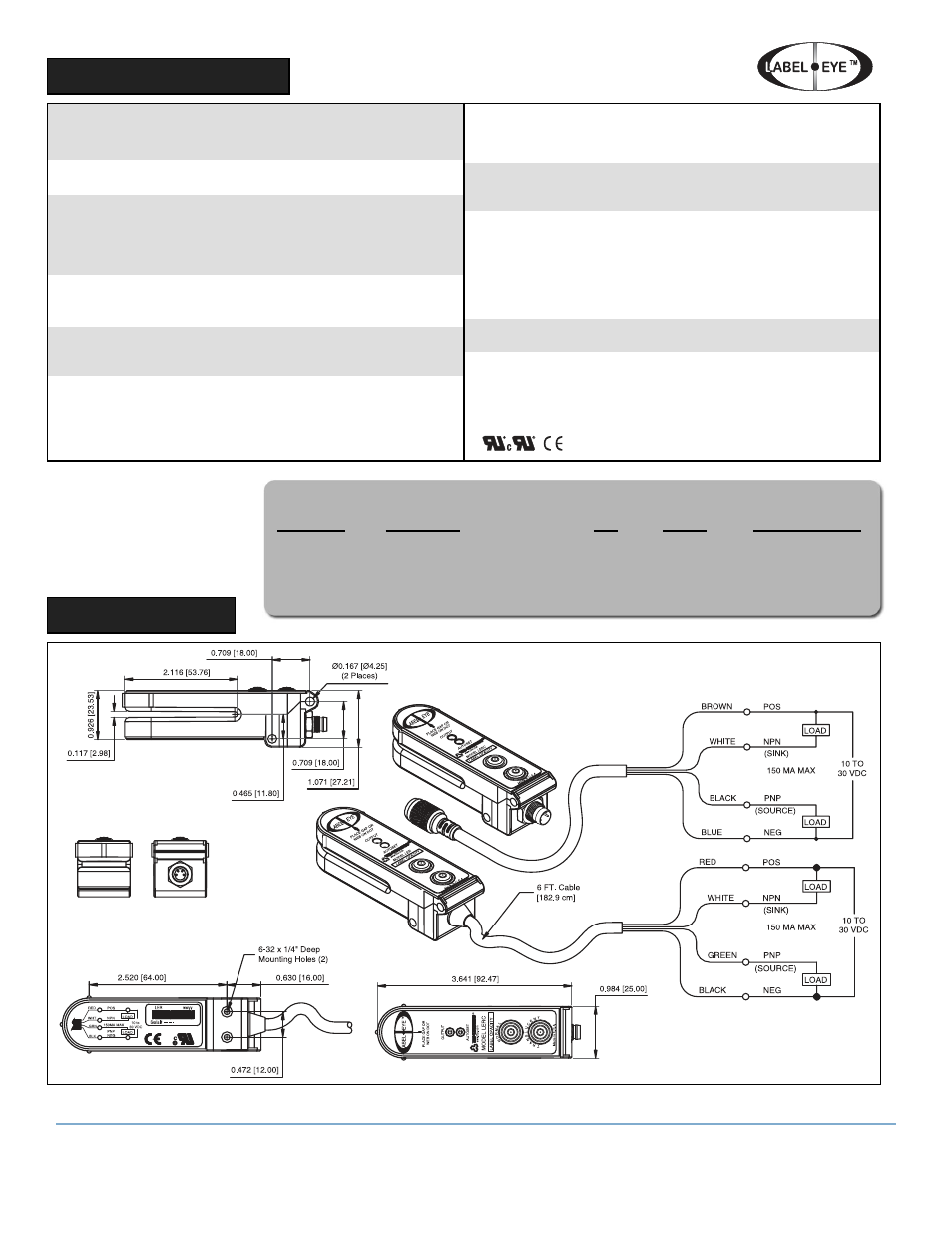

DIMENSIONS
SUPPL Y VOLTAGE
•
10 to 30 VDC
• P olarity Protected
CURRENT REQ UIREMENTS
• 45 milliamps (e xclusive of load)
OUTPUT TRANSISTORS
• (1) NPN and (1) PNP output tr ansistors
• Sensor outputs can sink or source up to 150 milliamps
(current limit)
• All outputs are contin uously short circuit protected
RESPONSE TIME
• Light state response = 100 microseconds
• Dar k state response = 100 microseconds
LED LIGHT SOURCE
• High intensity red LED
• Pulse modulated
PUSH B UTTON CONTROL
• A utomatic set-up routines based on web opacity
• One push b utton set-up
• Sim ultaneously pushing both buttons inverts the output
SPECIFICATIONS
HYSTERESIS
• Minimal h ysteresis promotes the detection between the
backing material and the label depending on the settings
LIGHT IMMUNITY
• Responds to sensor’ s pulsed modulated light source …
immune to most ambient light
INDICA TORS
• Green LED flashes when A utoset™ routine is activated
and stays illuminated when Autoset™ is completed
• Red LED illuminates when sensors output tr ansistors
are “ON”.
Note: The status of the output transistors can be inverted
by pushing both buttons simultaneously
AMBIENT TEMPERATURE
• –40 °C to 70°C (-40°F to 158°F)
R UGGED CONSTRUCTION
• Chemical resistance to harsh cleaners such as
detergents, alcohols, and ketones
• W aterproof, ratings: NEMA 2
•
Conf orms to heavy industry grade CE and UL requirements
Model Number s:
Label•Ey e Description
LER Red LED, 4 conductor 6 ft. cable
LERC Red LED, 4-pin Nano connector
P/N Length Thread Coupling
GEC-6 6 ft. (1.8m) Straight Female
GEC-15 15 ft. (4.6m) Straight Female
RGEC-6 6 ft. (1.8m) 90° Female
RGEC-15 15 ft. (4.6m) 90° Female
Nano Cab le (M8) Selection Guide
C H E C K • L I N E ® – P
R E C I S I O N
Q
U A L I T Y
C
O N T R O L
I
N S T R U M E N T S
