UNITS

FPM or HZ

MEMORY ICON

INDICATES IF
CURRENT FLASH
RATE IS ALREADY
STORED IN
MEMORY

LOW BATTERY
ICON

BATTERY COMPARTMENT
COIN SLOT

FLASH DURATION LEVEL

F0~F6 (F0 DEFAULT)

MEMORY LOCATIONS

1~9 FOR BOTH FPM AND HZ

PROGRAM MODE

Changing Units

Turn off the strobe. Press and hold the

MODE

key, then press the

POWER

switch.

SEL is displayed. Press the

or

arrows

to select FPM or Hz. The selected unit
becomes the default when the strobe is
powered on. FPM is the default. Press the

POWER

switch to exit.

Changing Flash Duration Default

F0 is the default, good for most applications.
To change, turn off the strobe. Press and
hold the

MODE

key, then press the

POWER

switch. SEL is displayed, then press the

▲ or ▼ arrows to select F0, F1, F2, ... F6.
The selected flash duration level becomes
the default when the strobe is powered on.
Press the

POWER

switch to exit.

Clearing All Memory

Turn off the strobe. Press and hold the

MODE

key, and then press the

POWER

switch. SEL is displayed. Press and hold

MODE

, then press

MEMORY

to display CLr.

Press

MEMORY

again and stored memory is

cleared (CLr disappears after three
seconds). After memory is cleared the
strobe returns to measuring mode.

LOW BATTERY

When

LOW BATT

appears on the display,

turn off the strobe. Loosen the coin screw
in the back cover and replace all batteries
with the same brand and type. For best
performance always replace both batteries
together and use AA alkaline, NiMH or
NiCAD cells. Please note polarity. Memory
is retained even if the batteries are removed.

–SEL–

FPM

F0

–SEL–

FPM

F0

F0 F6

SELECT WITH UP AND DOWN ARROWS

SELECT WITH LEFT AND RIGHT ARROWS

–CL6–

FPM

F0

PRESS MEMORY TO CLEAR

3000.0

FPM

LOW BATT

F0

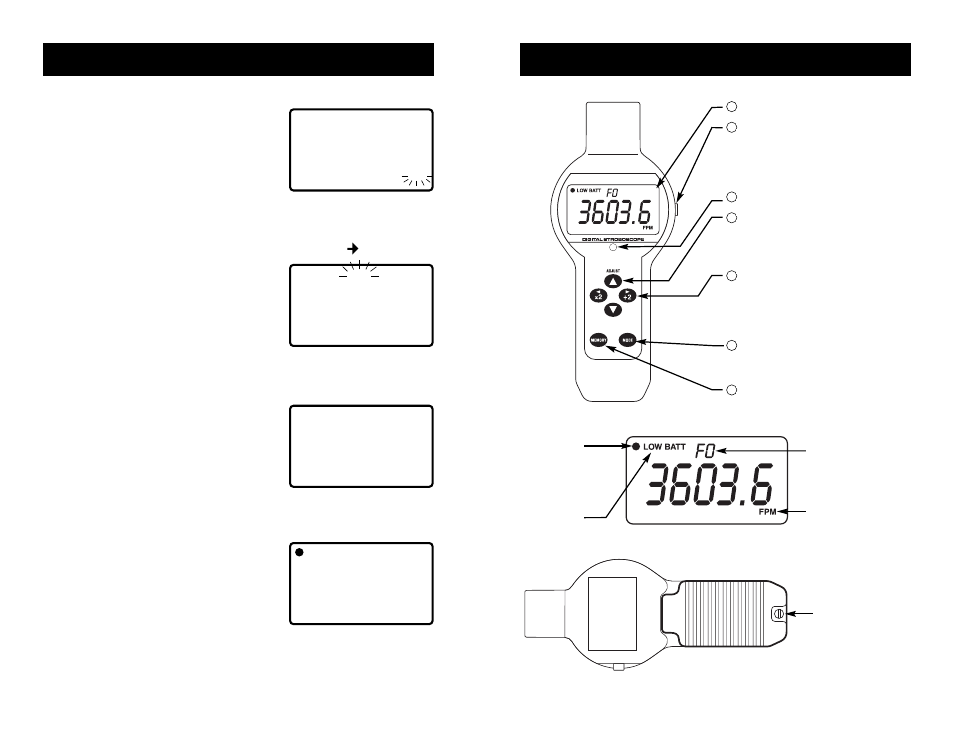

DISPLAY

LED INDICATOR

POWER SWITCH

CLICK AND RELEASE TO TURN ON,
CLICK TO TURN OFF. AUTO SHUT OFF
AFTER 10 MINUTES

CLICK AND HOLD, IF RELEASED AFTER
2 SECONDS, STROBE SHUTS OFF.

MEMORY KEY

MODE KEY

PHASE SHIFT

PROGRAMMING

1

2

3

7

UP/DOWN ARROW KEYS

OR

CHANGE FLASH RATE

CHANGE FLASH DURATION LEVEL

SELECT PROGRAM OPTIONS

X2/÷2 KEYS

DOUBLE OR HALVE THE FLASH RATE

LEFT/RIGHT ARROW KEYS

OR

CHANGE PHASE SHIFT

SELECT PROGRAM OPTIONS

4

6

5
