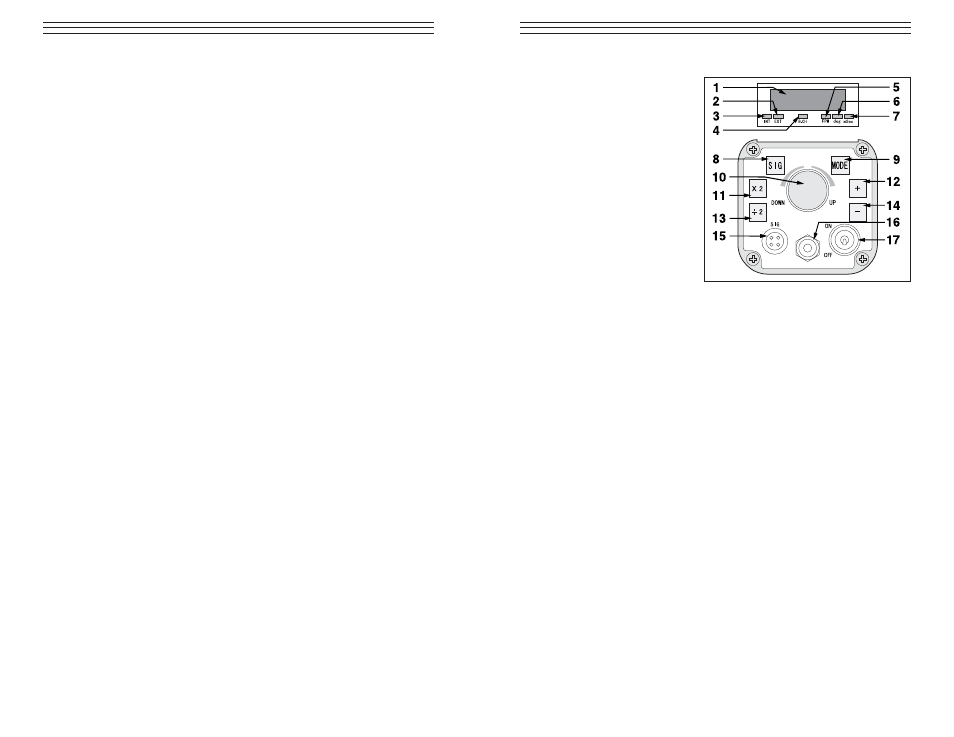

3.0 O VERVIEW
0 1. LED display: Displays
function and value
0 2. EXT: External mode
indicator
0 3. INT: Internal mode indicator
0 4. B-CH: Battery charge
indicator (DT-315A only)
0 5. FPM: Flash per minute
indicator
0 6. deg: Phase shift degree
indicator
0 7. mSec: Millisecond delay
time indicator
0 8. Signal switch: Switches
the unit from the external
mode to the internal mode
(and vice-versa)
0 9. Display mode switch: When unit is set to the externalmode, the strobe
will switch to RPM (FPM)/deg/msec each time “MODE” is depressed
RPM (FPM) Displays flashes per minute. External input 0-35,000 RPM
(FPM)
deg Displays flash delay in degrees
msec Displays flash delay in msec
10. Setter: Changes the flashing rate
11. (x2) Switch: In the internal mode, pressing “x2”doubles the flashing rate
12. (+) Switch: In the internal mode, when object appears to be standing still,
pressing “+” will give the illusion that the object is moving towards the
rotating direction at a speed of 1 rotation in 6 seconds
13. (÷2) Switch: In the internal mode, pressing “÷2” divides the flashing rate
by two
14. (–) Switch: In the internal mode, when object appears to be standing still,
pressing “–“ will give the illusion that the object is moving in reverse at a
speed of 1 rotation in 6 seconds
15. Input and output connector:
PIN #1: +12V
PIN #2: Synch output signal
PIN #3: Input signal
PIN #4: 0V
16. Power cord (DT-311A) / AC adapter (DT-315A)
17. Power switch
– 10 –
8.0 S PECIFICATIONS
INTERNAL MODE
Flashing Range 40.0 - 35,000 FPM (flashes per minute)
Accuracy ±0.01% of reading
Resolution 0.1 FPM: 40.0 - 4,999.9 FPM
0.2 FPM: 5,000 - 7,999.8 FPM
0.5 FPM: 8,000 - 9,999.5 FPM
1 FPM: 10,000 - 35,000 FPM
Phase Shift Use +/- push buttons (360° in 6 seconds)
Display Update Time 0.2 sec approx.
Output Signal Synchronous, 400 μsec. Pulse output,
0 to +12 VDC amplitude(approx.), 4.7 Kø impedance
Rate Multiplier/Divider Multiply by 2, divide by 2
EXTERNAL MODE
Flashing Range 0.0 - 35,000 FPM
Accuracy ±0.01% ±1 digit
Phase Shift 0 - 359° with 1° resolution
Delay Time 0 - 2,000 msec from 40 - 10,000 FPM
External Trigger Input Signal LO level: 0 - 0.8 VDC, HI level:
2.5 - 12 VDC or open collector (NPN),
pulse width 50 μsec min.
Input Impedance 4.7 Kø at 12 V / 6.8 Kø at 0 V
GENERAL
Display 5 digits, 0.4" (10 mm) high, LED
Flash Tube Power/Life Xenon, 10 W max. (100 million flashes)
Flash Duration 10 - 40 μsec
Sensor Power Supply 12 VDC (40 mA)
Low Battery Indicator Display shows all L’s
Power Requirement
DT-311A 115 VAC or 220 VAC ±10% 60/50 Hz, 30 VA
(specify voltage)
DT-315A Internal Battery Pack
Operating Temp. Range 32° - 104°F ( 0 - 40°C )
Weight
DT-311A 2.6 lb (1.2 kg)
DT-315A 4.4 lb (2 kg)
Dimensions
DT-311A 7.28"L x 4.72"W x 4.72"H (185 x 120 x 120 mm)
DT-315A 9.84"L x 4.72"W x 4.72"H (250 x 120 x 120 mm)
Warranty 1 year
Standard Accessories Handle, flash tube removal tool Handle, flash tube
removal tool and AC charger/adapter
Optional Accessories Carrying case
